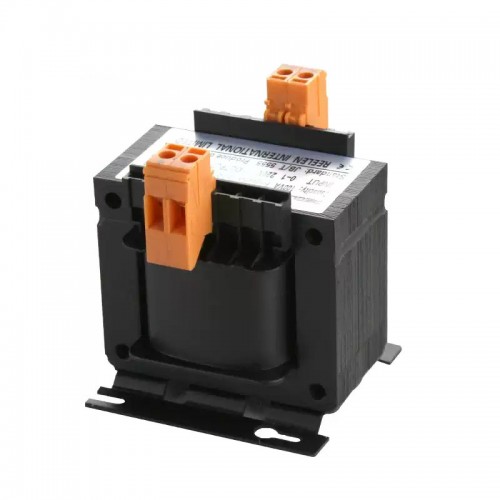

JBK5-400VA series 400W single phase control transformers

Main child models
Mouse over to zoom in
Price: US $53.12 / piece
Model number: JBK5-400VA-380V5P-110-220
Product name: Control transformer
Input voltage:
380VAC-5%/380VAC/+5%
Output voltage:
220VAC110V 220V
View details
Product description
▇ Model number and description
Model numberRated capacityExternal dimensionsMounting holes distanceOnline store:
JBK5-50VA50VA78*72*90mm56*46mm
JBK5-63VA63VA78*72*90mm56*46mm
JBK5-100VA100VA84*75*96mm64*62mm
JBK5-160VA160VA96*92*105mm84*73.5mm
JBK5-200VA200VA*96*100*104mm*84*85mm
JBK5-250VA250VA96*100*104mm84*85mm
JBK5-300VA300VA*120*100*122mm*90*85mm
JBK5-400VA400VA120*100*122mm90*85mmVisiting...
JBK5-500VA500VA120*110*122mm90*96mm
JBK5-630VA630VA150*110*140mm122*90mm
JBK5-800VA800VA150*128*142mm122*105mm
JBK5-1000VA1000VA150*190*142mm126*152mm
JBK5-1600VA1600VA170*225*153mm140*176mm
JBK5-2500VA2500VA194*250*170mm170*200mm
JBK5-3000VA3000VA194*250*190mm170*200mm
JBK5-4000VA4000VA194*250*200mm170*200mm
JBK5-5000VA5000VA220*286*215mm208*240mm
▇ JBK5-400VA control transformer model number legend
JBK5-400VA
Parent Model Number
Input voltage
-380V: 380VAC
-380V5P: -5%/380VAC/+5%
Output voltage
-220V: 220VAC
-110-220: 110V 220V
▇ General
Model number JBK5 series
Rated capacity 50, 63, 100, 160, 200, 250, 300, 400, 500, 630, 800, 1000, 1600, 2500, 3000, 4000, 5000VA
Input voltage AC 220V, 230V, 380V, can be customized
Output voltage AC 220V 110V 36V 24V 12V 6.3V 6V 80V, can be customized
Freqency 50/60Hz
Insulation resistance ≥20MΩ
Efficiency ≥80%
Operating temperature -5 to 40℃, 24h average temperature ≤35℃
Alias name JBK5 series machine control isolating transformer
▇ JBK5-400VA control transformer child models
No Model Number Input Voltage Output Voltage MOQ Unit Price
1 JBK5-400VA-380V5P-110-220 -5%/380VAC/+5% 110V 220V 1 US $53.12
