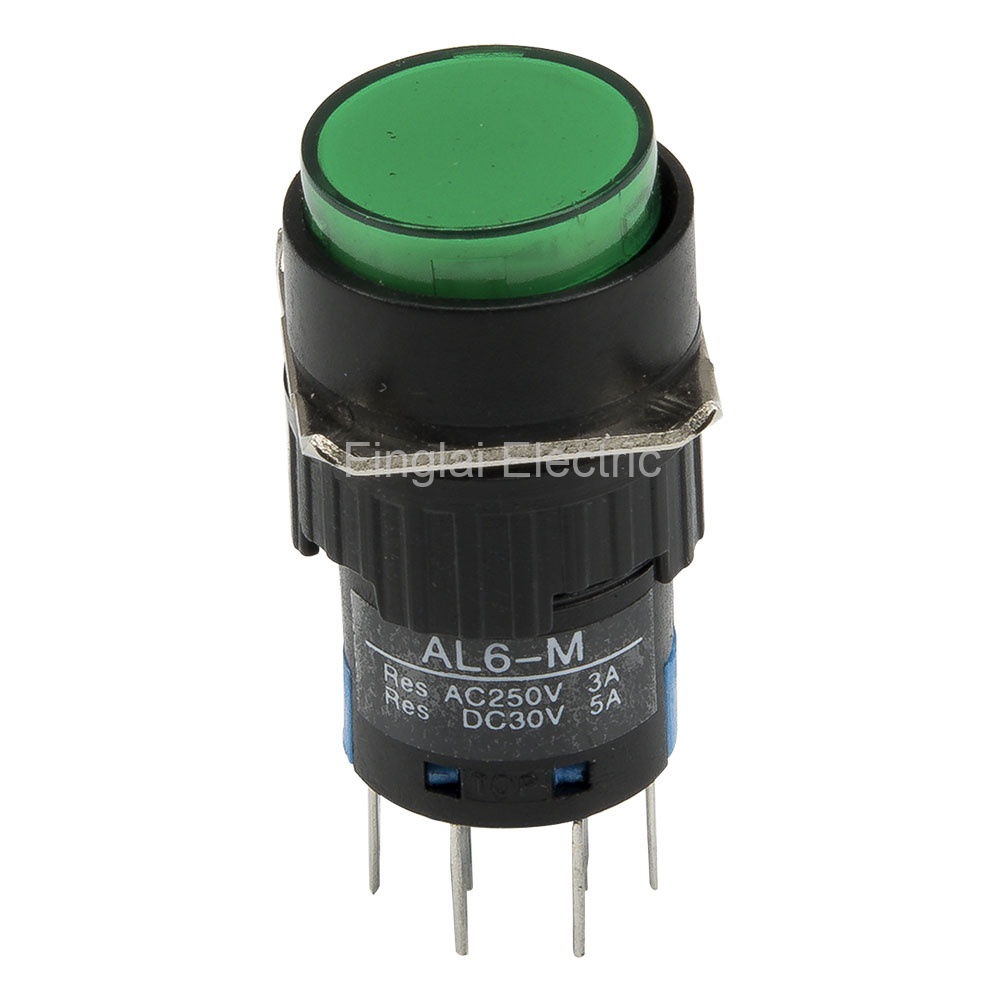

16mm 24V lamp 8 pins reset (ON) - OFF round green push button switch
Product features
Mouse over to zoom in
16mm 24V lamp 8 pins reset (ON) - OFF round green push button switch
Price: US $5.43 / piece
Model number: AL6-M-22-G24V
Product name: Push button
Deliver to:
Shipping:
US $5.6via
Estimated Delivery Time: 9-15 days
Total price:US $32.75
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Head shape | Action method | Contact form | Contact rating | Color code | Lamp voltage | Online store: |
| AB6-A-11 | LA16Y-11 | Round | Self-lock | ON-OFF SPST 3 pins | 3A@250VAC | R, G | US $0.69/ pieceOrder (2) | |
| AB6-A-22 | LA16Y-22 | Round | Self-lock | ON-OFF DPST 6 pins | 3A@250VAC | R, G | US $0.91/ pieceOrder (2) | |
| AB6-M-11 | LA16Y-11 | Round | Reset | (ON)-OFF SPST 3 pins | 3A@250VAC | R, G | US $0.57/ pieceOrder (2) | |
| AB6-M-22 | LA16Y-22 | Round | Reset | (ON)-OFF DPST 6 pins | 3A@250VAC | R, G | US $0.8/ pieceOrder (2) | |
| AB6-V | AS6-Y | Emergency stop | 3A@250VAC | R, G | US $1.07/ pieceOrder (2) | |||
| AL6-A-11 | LA16Y-11D | Round | Self-lock | ON-OFF SPST 5pins | 3A@250VAC | R, G | 220V, 12V, 24V | US $0.8 - 3.97/ pieceOrder (6) |
| AL6-A-22 | LA16Y-22D | Round | Self-lock | ON-OFF 8 pins | 3A@250VAC | R, G | 220V, 12V, 24V | US $1.14 - 5.16/ pieceOrder (6) |
| AL6-M-11 | LA16Y-11D | Round | Reset | (ON)-OFF SPST 5 pins | 3A@250VAC | R, G | 220V, 12V, 24V | US $0.69 - 3.41/ pieceOrder (6) |
| AL6-M-22 | LA16Y-22D | Round | Reset | (ON)-OFF 8 pins | 3A@250VAC | R, G | 220V, 12V, 24V | Visiting... |
| LA9 | Round | Reset | (ON)-OFF | R, G, B | US $0.38/ pieceOrder (4) | |||
| KD2-24 | Rectangle | Reset | (ON)-OFF | 3A@250VAC | R, G, Y, A, W | US $0.24/ pieceOrder (5) |
▇ AL6-M-22 push button model number legend
▇ General
| Model number | 16mm other series |
| Mounting dimensions | φ16 |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min |
| Dielectric strength | 2000Vac, 50Hz for 1min |
| Mechanical Life | 2x105 cycles |
| Electrical life | 5x104 cycles |
| IP degree | IP40 |
| Operation temperature | -25 to 55℃ |
| Operation humidity | 45 to 85% RH, no-condensation |
| Alias name | 16mm other series push button switch, pushbutton |
▇ AL6-M-22 push button child models
| No | Model Number | Color | Lamp Voltage | MOQ | Unit Price | Related Product |
| 1 | AL6-M-22-R220V | Red | 220V | 5 | US $1.09 | Order |
| 2 | AL6-M-22-R12V | Red | 12V | 5 | US $1.09 | Order |
| 3 | AL6-M-22-R24V | Red | 24V | 5 | US $1.09 | Order |
| 4 | AL6-M-22-G220V | Green | 220V | 5 | US $1.09 | Order |
| 5 | AL6-M-22-G12V | Green | 12V | 5 | US $1.09 | Order Unfold |
KD2-24 push button drawing
Packaging Details
Product quantity: 5pcs
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
