Products >> Switches >> Push buttons >> φ16mm R >> R13-507 >> R13-507-Y
<

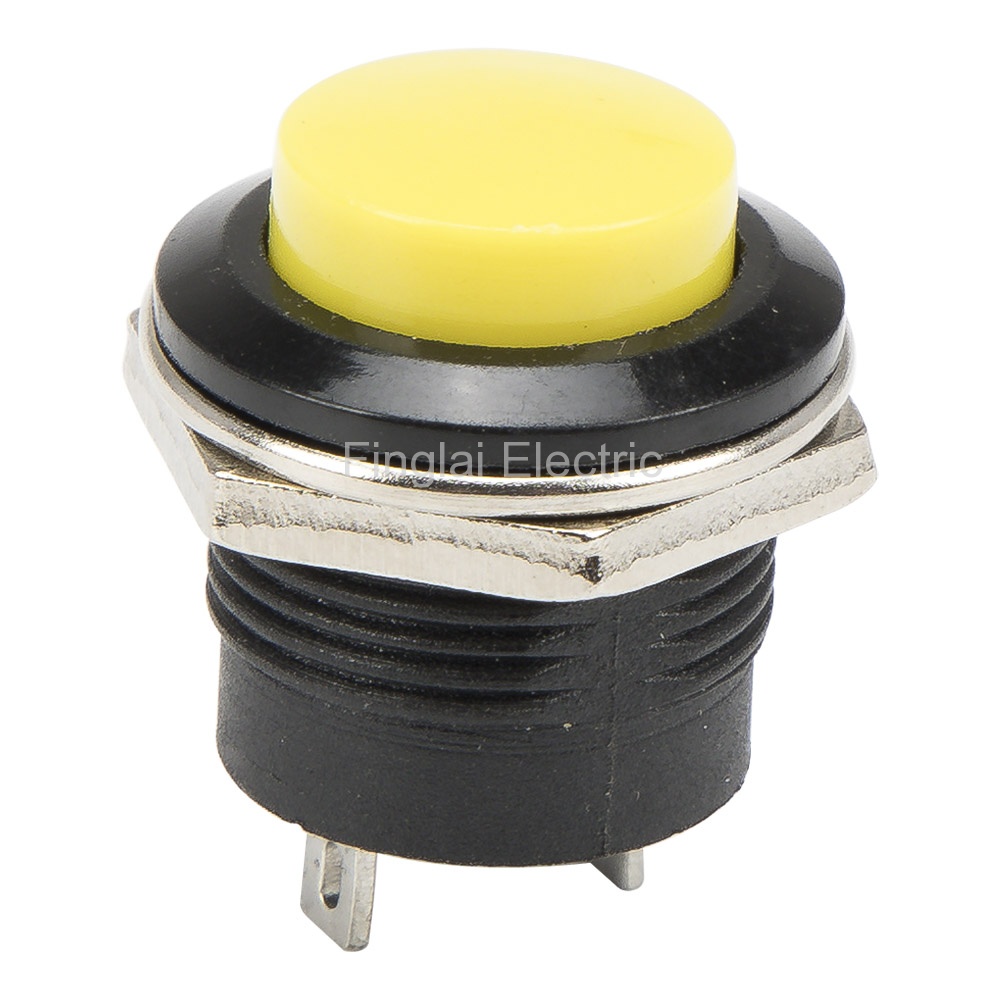

R13-507 yellow 16mm mounting diameter reset (ON) - OFF round push button switch

Product features
Mouse over to zoom in
R13-507 yellow 16mm mounting diameter reset (ON) - OFF round push button switch
Price: US $0.14 / piece
Model number: R13-507-Y
Product name: Push button
Deliver to:
Shipping:
US $6.32via
Estimated Delivery Time: 9-15 days
Quantity:



Total price:US $7.72
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Model number and parameters
Model numberHead shapeAction methodContact formContact ratingColor codeLamp voltageOnline store:
R13-507RoundReset(ON)-OFF3A@250VACRGY, AWBBGVisiting...
R16-503ARoundSelf-lockON-OFF1.5A@250VACRGY, ABUS $0.36/ pieceOrder (5)
R16-503ADRoundSelf-lockON-OFF1.5A@250VACRGYAWRed is 2V, others are 3VUS $0.38/ pieceOrder (5)
R16-503BRoundReset(ON)-OFF1.5A@250VACRGYABUS $0.33/ pieceOrder (5)
R16-503BDRoundReset(ON)-OFF1.5A@250VACRGYAWRed is 2V, others are 3VUS $0.37/ pieceOrder (5)
R13-507 push button model number legend
General
Model number 16mm R series
Mounting dimensions φ16
Contact resistance 50mΩ max
Insulation resistance 100MΩ min
Dielectric strength 2000Vac, 50Hz for 1min
Mechanical Life 2x105 cycles
Electrical life 5x104 cycles
IP degree IP40
Operation temperature -25 to 55℃
Operation humidity 45 to 85% RH, no-condensation
Alias name 16mm R series push button switch, pushbutton
R13-507 push button child models
No Model Number Color MOQ Unit Price Related Product
1 R13-507-R Red 10 US $0.14 Order
2 R13-507-G Green 10 US $0.14 Order
3 R13-507-Y Yellow 10 US $0.14 Visiting...
4 R13-507-A Blue 10 US $0.14 Order
5 R13-507-W White 10 US $0.14 Order Unfold
6 R13-507-B Black 10 US $0.14 Order
7 R13-507-BG Blackish green 10 US $0.14 Order
R13-507 push button drawing
R16-503A push button drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.12kg
Package size: 10 x 10 x 6 cm
