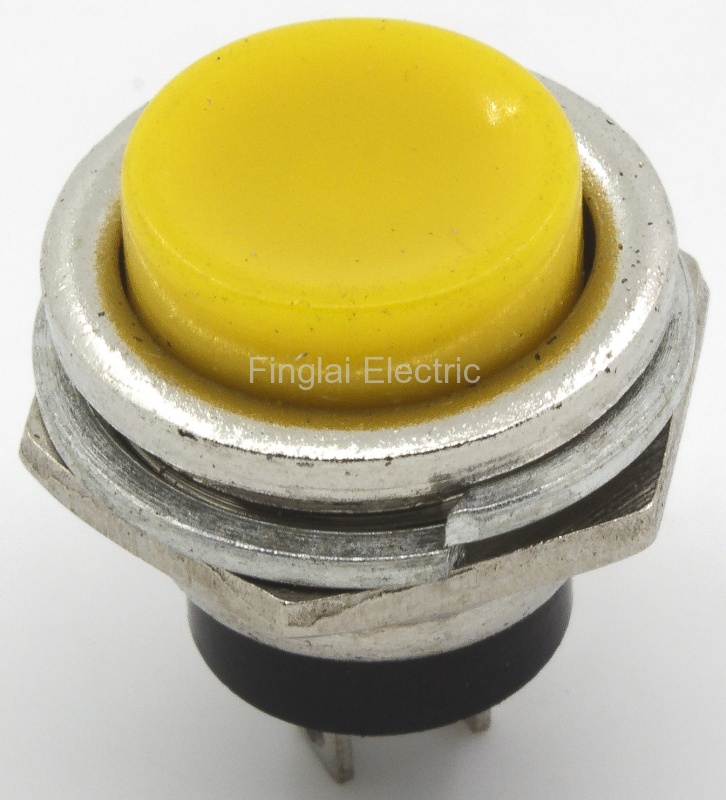

DS-212 yellow 16mm mounting diameter reset (ON) - OFF round push button switch
Product features
Mouse over to zoom in
DS-212 yellow 16mm mounting diameter reset (ON) - OFF round push button switch
Price: US $0.16 / piece
Model number: DS-212-Y
Product name: Push button
Deliver to:
Shipping:
US $7.19via
Estimated Delivery Time: 9-15 days
DDP service: All applicable import duties and taxes are included in total price.
Total price:US $8.79
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
| Model number | Head shape | Action method | Contact form | Contact rating | Color code | Online store: |
| DS-212 | Round | Reset | (ON)-OFF | 1A@250VAC | R, G, Y, A, W, B | Visiting... |
| DS-212-2 | Round | Reset | ON-(OFF) | 1A@250VAC | R, G | US $0.31/ pieceOrder (2) |
| DS-510 | Round | Self-lock | ON-OFF | 1A@250VAC | R, G | US $0.18/ pieceOrder (2) |
| DS-511 | Round | Reset | (ON)-OFF | 1A@250VAC | R, G | US $0.17/ pieceOrder (2) |
▇ DS-212 push button model number legend
▇ General
| Model number | 16mm DS series |
| Mounting dimensions | φ16 |
| Contact resistance | 50mΩ max |
| Insulation resistance | 100MΩ min |
| Dielectric strength | 2000Vac, 50Hz for 1min |
| Mechanical Life | 2x105 cycles |
| Electrical life | 5x104 cycles |
| IP degree | IP40 |
| Terminals | 2 pin |
| Operation temperature | -25 to 55℃ |
| Operation humidity | 45 to 85% RH, no-condensation |
| Alias name | 16mm DS series push button switch, pushbutton |
▇ DS-212 push button submodels
| No | Model Number | Color | MOQ | Unit Price | Related Product |
| 1 | DS-212-R | Red | 10 | US $0.16 | Order |
| 2 | DS-212-G | Green | 10 | US $0.16 | Order |
| 3 | DS-212-Y | Yellow | 10 | US $0.16 | Visiting... |
| 4 | DS-212-A | Blue | 10 | US $0.16 | Order |
| 5 | DS-212-W | White | 10 | US $0.16 | Order Unfold |
DS-212 push button drawing
Packaging Details
Product quantity: 10PCS
Package weight: 0.12kg
Package size: 10 x 10 x 6 cm
