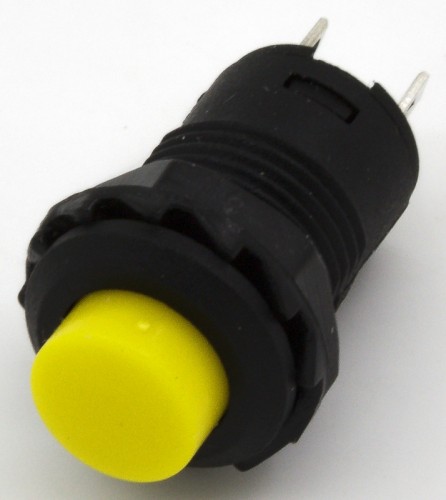

DS-428 yellow 12mm mounting diameter self-lock ON-OFF round push button switch
Product features
Mouse over to zoom in
DS-428 yellow 12mm mounting diameter self-lock ON-OFF round push button switch
Price: US $0.12 / piece
Model number: DS-428-Y
Product name: Push button
Deliver to:
Shipping:
US $6.39via
Estimated Delivery Time: 9-17 days
Total price:US $7.59
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Head shape | Action method | Contact form | Contact rating | Color code | Online store:
|
| DS-312 | | Round | Reset | (ON)-OFF | 1A@250VAC | R, G | US $0.76/ pieceOrder (2) |
| DS-313 | | Round | Reset | (ON)-OFF | 1A@125VAC | R, G, Y, A, W, B | US $0.15/ pieceOrder (6) |
| DS-324 | | Round | Reset | (ON)-OFF | 2A@125VAC | R, G | US $0.67/ pieceOrder (2) |
| DS-425 | | Square | Reset | (ON)-OFF | 1A@125VAC | R, G | US $0.12/ pieceOrder (2) |
| DS-426 | | Square | Self-lock | ON-OFF | 1A@125VAC | R, G | US $0.14/ pieceOrder (2) |
| DS-427 | DS-227 | Round | Reset | (ON)-OFF | 1A@125VAC | R, G, Y, A, W, B | US $0.11/ pieceOrder (6) |
| DS-428 | DS-228 | Round | Self-lock | ON-OFF | 1A@125VAC | R, G, Y, A, W, B | Visiting... |
▇ DS-428 push button model number legend
▇ General
| Model number |
12mm DS series |
| Mounting dimensions |
φ12 |
| Contact resistance |
50mΩ max |
| Insulation resistance |
100MΩ min |
| Dielectric strength |
2000Vac, 50Hz for 1min |
| Mechanical Life |
2x105 cycles |
| Electrical life |
5x104 cycles |
| IP degree |
IP40 |
| Terminals |
2 pin |
| Operation temperature |
-25 to 55℃ |
| Operation humidity |
45 to 85% RH, no-condensation |
| Alias name |
12mm DS series push button switch, pushbutton |
▇ DS-428 push button child models
| No |
Model Number |
Color |
MOQ |
Unit Price |
Related Product |
| 1 |
DS-428-R |
Red |
10 |
US $0.12 |
Order |
| 2 |
DS-428-G |
Green |
10 |
US $0.12 |
Order |
| 3 |
DS-428-Y |
Yellow |
10 |
US $0.12 |
Visiting... |
| 4 |
DS-428-A |
Blue |
10 |
US $0.12 |
Order |
| 5 |
DS-428-W |
White |
10 |
US $0.12 |
Order Unfold |
| 6 |
DS-428-B |
Black |
10 |
US $0.12 |
Order |
DS-313 push button drawing
DS-425 push button drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.07kg
Package size: 10 x 10 x 3 cm
