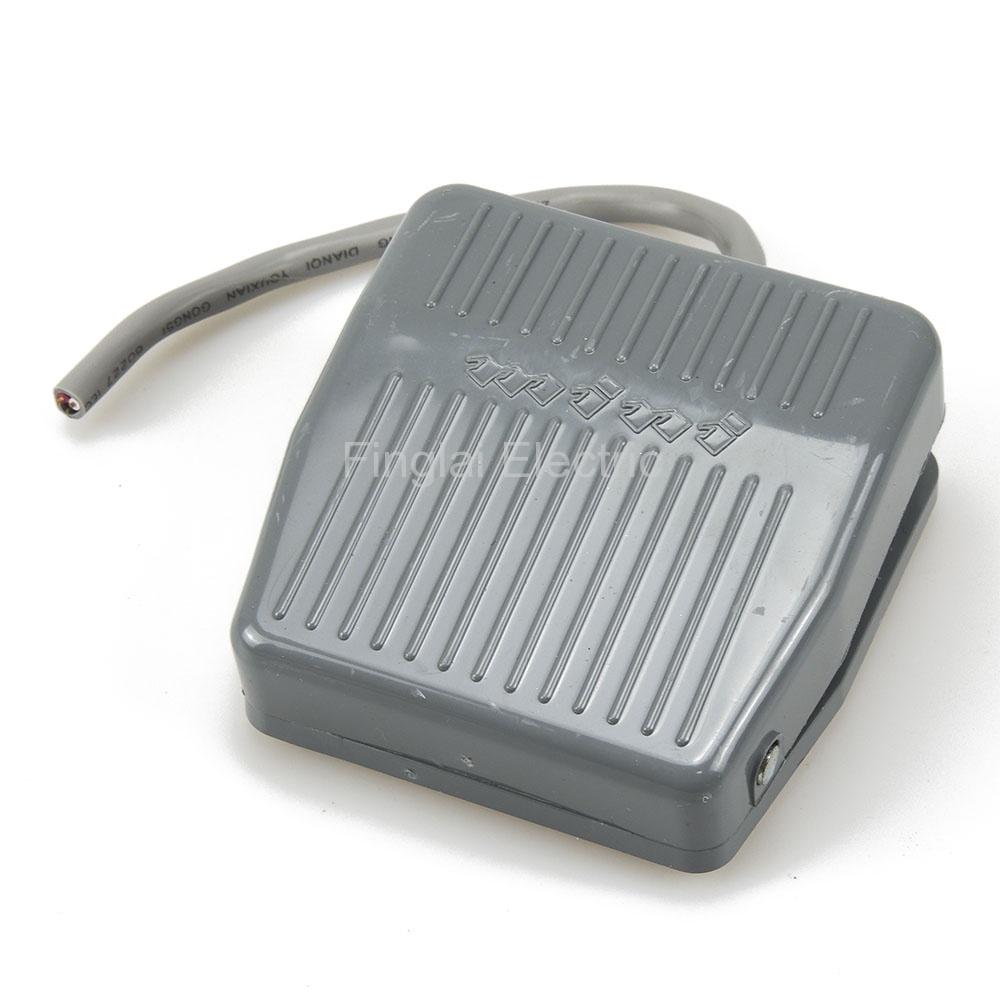

TFS-201 series foot switches

Main child models
Mouse over to zoom in
Price: US $1.66 / piece
Model number: TFS-201-PR0.2
Product name: Foot switch
Case material:
Plastic
Action method:
Reset
Cable length:
0.2m2m
View details
Product description
▇ Model number and parameters
Model numberSame modelOnline store:
TFS-201FS-201, VFS201Visiting...
▇ TFS-201 foot switch model number legend
TFS-201
Parent Model Number
Case material
-P: Plastic
Action method
R: Reset
Cable length
0.2: 0.2m
2: 2m
▇ General
Model number TFS-201
Contact form 1NO+1NC
Action method Reset
Contact rating 5A@380VAC
Case material Plastic
Cable length 0.2m, 2m
Contact resistance 50mΩ max (First time)
Insulation resistance 100MΩ min at 500Vdc
Dielectric strength 2000Vac, 50Hz for 1min
Machine life 1x106 operations min
Electrical Life 1x105 operations min
IP Rating IP62
Operating temperature -25-70 ℃
Operating humidity 45 to 85% RH, no condensation
Alias name FS-201 pedal switch
▇ TFS-201 foot switch child models
No Model Number Case Material Action Method Cable Length MOQ Unit Price
1 TFS-201-PR0.2 Plastic Reset 0.2m 1 US $1.66
2 TFS-201-PR2 Plastic Reset 2m 1 US $2.29

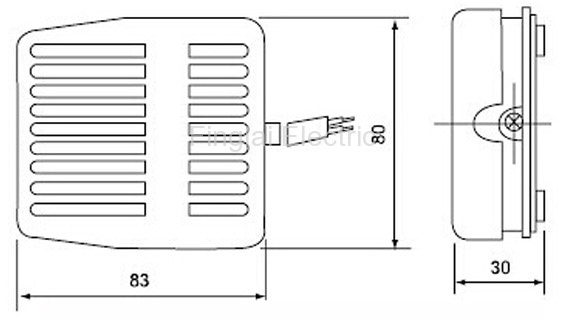

TFS-201 foot switch drawing
