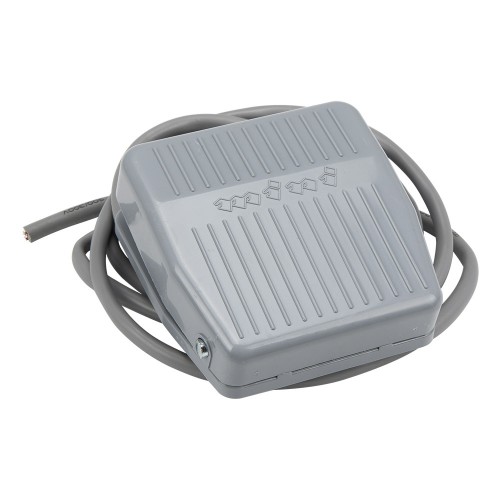

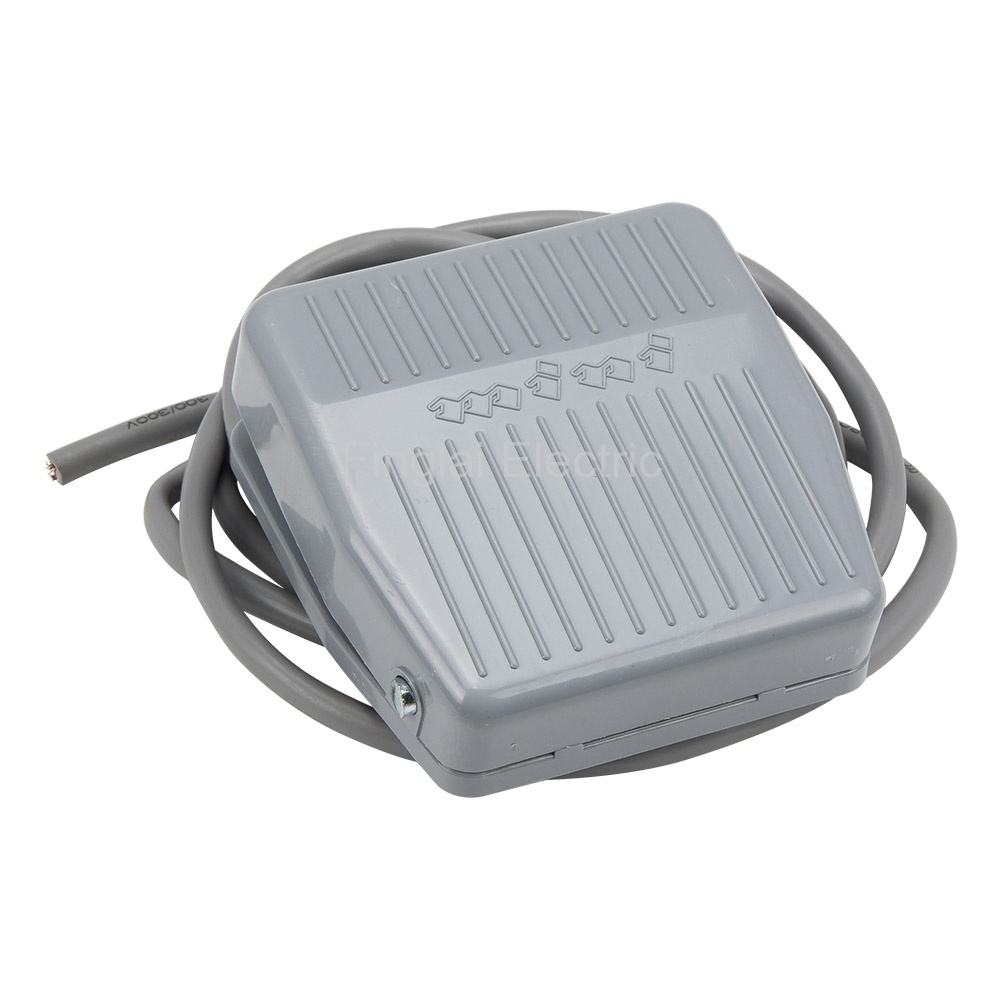

TFS-201 plastic case 2m cable reset cable silver foot switch
Product features
Mouse over to zoom in
TFS-201 plastic case 2m cable reset cable silver foot switch
Price: US $2.29 / piece
Model number: TFS-201-PR2
Product name: Foot switch
Deliver to:
Shipping:
US $7.76via
Estimated Delivery Time: 9-15 days
Total price:US $10.05
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Same model | Online store:
|
| TFS-201 | FS-201, VFS201 | Visiting... |
▇ TFS-201 foot switch model number legend
▇ General
| Model number |
TFS-201 |
| Contact form |
1NO+1NC |
| Action method |
Reset |
| Contact rating |
5A@380VAC |
| Case material |
Plastic |
| Cable length |
0.2m, 2m |
| Contact resistance |
50mΩ max (First time) |
| Insulation resistance |
100MΩ min at 500Vdc |
| Dielectric strength |
2000Vac, 50Hz for 1min |
| Machine life |
1x106 operations min |
| Electrical Life |
1x105 operations min |
| IP Rating |
IP62 |
| Operating temperature |
-25-70 ℃ |
| Operating humidity |
45 to 85% RH, no condensation |
| Alias name |
FS-201 pedal switch |
▇ TFS-201 foot switch child models
| No |
Model Number |
Case Material |
Action Method |
Cable Length |
MOQ |
Unit Price |
Related Product |
| 1 |
TFS-201-PR0.2 |
Plastic |
Reset |
0.2m |
1 |
US $1.66 |
Order |
| 2 |
TFS-201-PR2 |
Plastic |
Reset |
2m |
1 |
US $2.29 |
Visiting... |
TFS-201 foot switch drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.2kg
Package size: 10 x 10 x 9 cm
