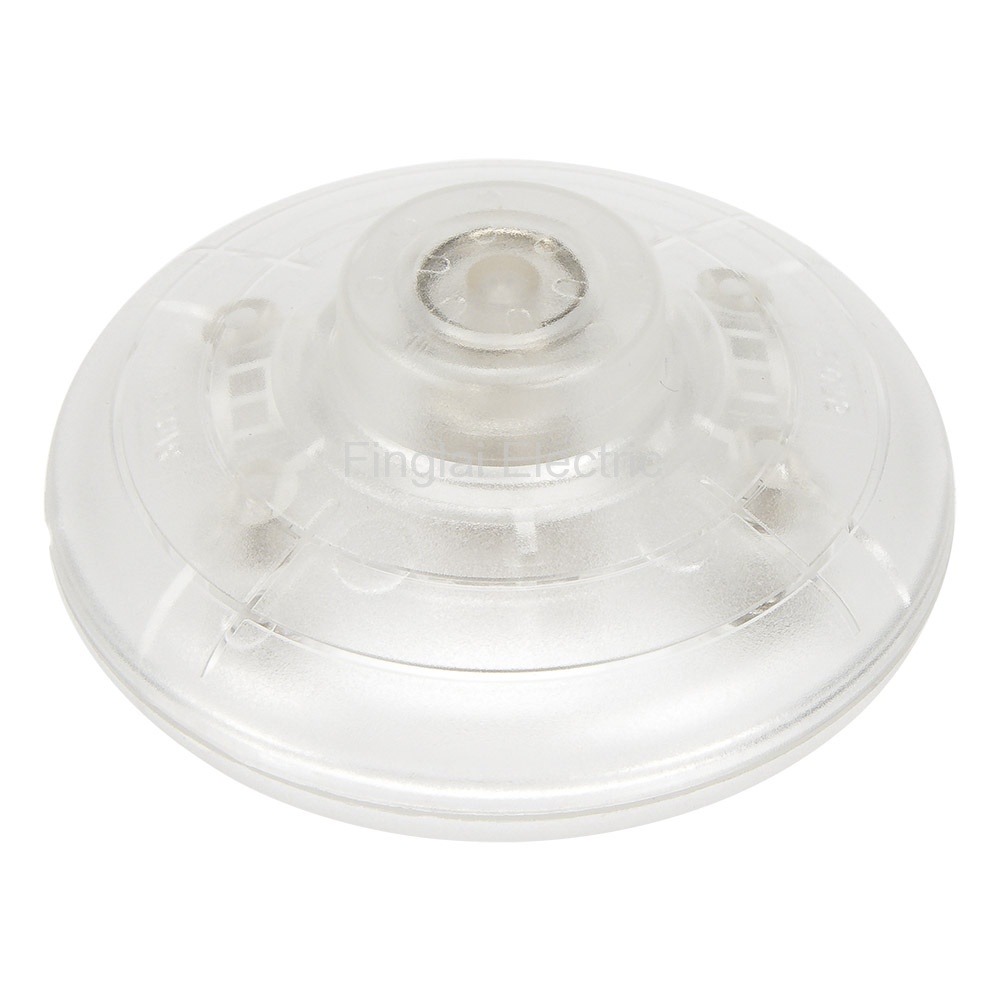

FFS01 transparent wires mounted (wire need soak tin) round reset foot hand switch for 317 floor lamp
Product features
Mouse over to zoom in
FFS01 transparent wires mounted (wire need soak tin) round reset foot hand switch for 317 floor lamp
Price: US $1.07 / piece
Model number: FFS02-PRT
Product name: Foot switch
Deliver to:
Shipping:
US $5.53via
Estimated Delivery Time: 12-17 days
Total price:US $6.6
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Online store:
|
FFS02 | Visiting... |
▇ FFS02 foot switch model number legend
▇ General
Model number |
FFS02 |
Action method |
Self-lock, reset |
Contact rating |
2A@250VAC |
Case material |
Flame retardant and environmental protection PC |
Case color |
Black, white, gold, transparent |
Cable mounting type |
Wires need soak Tin, then connect to the small switch |
External dimensions |
Φ70mm |
Contact resistance |
20mΩ max (First time) |
Insulation resistance |
100MΩ min at 500Vdc |
Dielectric strength |
1500Vac, 50Hz for 1min |
Machine life |
1x106 operations min |
Electrical Life |
1x105 operations min |
Operating temperature |
-40-85 ℃ |
Operating humidity |
45 to 85% RH, no condensation |
Alias name |
FFS02 pedal switch |
▇ FFS02 foot switch child models
No |
Model Number |
Case Material |
Action Method |
Case Color |
MOQ |
Unit Price |
Related Product |
1 |
FFS02-PLB |
Plastic |
Self-lock |
Black |
1 |
US $0.91 |
Order |
2 |
FFS02-PLW |
Plastic |
Self-lock |
White |
1 |
US $0.91 |
Order |
3 |
FFS02-PLJ |
Plastic |
Self-lock |
Gold |
1 |
US $1.02 |
Order |
4 |
FFS02-PLT |
Plastic |
Self-lock |
Transparent |
1 |
US $1.07 |
Order |
5 |
FFS02-PRB |
Plastic |
Reset |
Black |
1 |
US $0.91 |
Order Unfold |
6 |
FFS02-PRW |
Plastic |
Reset |
White |
1 |
US $0.91 |
Order |
7 |
FFS02-PRJ |
Plastic |
Reset |
Gold |
1 |
US $1.02 |
Order |
8 |
FFS02-PRT |
Plastic |
Reset |
Transparent |
1 |
US $1.07 |
Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
