FFS01 gold wires mounted (wire need soak tin) round self-lock foot hand switch for 317 floor lamp

Product features
Mouse over to zoom in

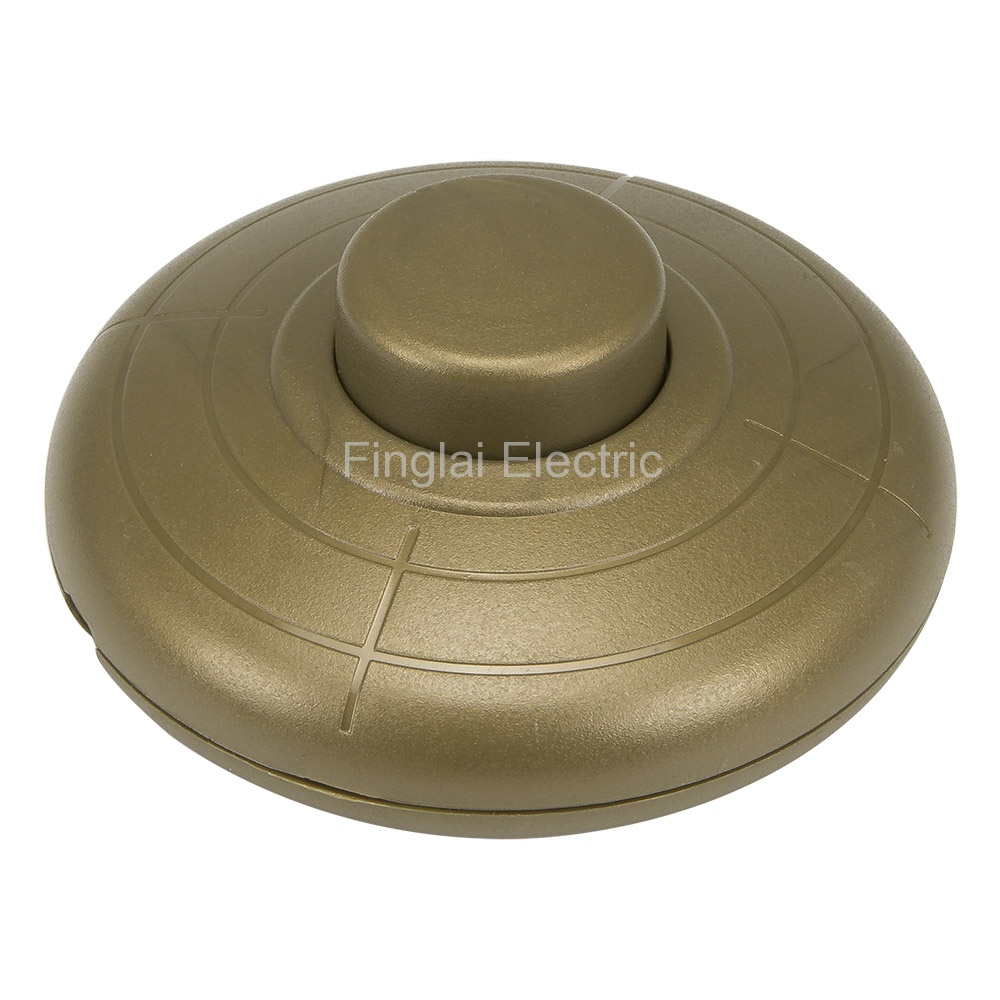

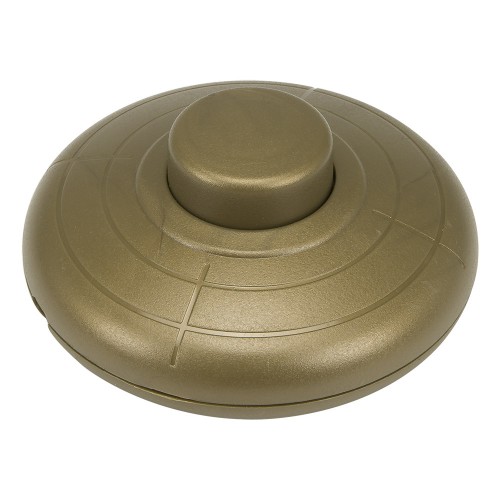

FFS01 gold wires mounted (wire need soak tin) round self-lock foot hand switch for 317 floor lamp
Price: US $1.02 / piece
Model number: FFS02-PLJ
Product name: Foot switch
Case material:
Plastic
Action method:
Self-lock
US $1.02Reset
US $1.02
Case color:
Black
US $0.91White
US $0.91Gold
US $1.02Transparent
US $1.07
Deliver to:
Shipping:
US $6.07via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $7.09
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model numberOnline store:
FFS02Visiting...
▇ FFS02 foot switch model number legend
FFS02
Parent Model Number
-P
Case material
-P: Plastic
L
Action method
L: Self-lock
R: Reset
J
Case color
B: Black
W: White
J: Gold
T: Transparent
▇ General
Model number FFS02
Action method Self-lock, reset
Contact rating 2A@250VAC
Case material Flame retardant and environmental protection PC
Case color Black, white, gold, transparent
Cable mounting type Wires need soak Tin, then connect to the small switch
External dimensions Φ70mm
Contact resistance 20mΩ max (First time)
Insulation resistance 100MΩ min at 500Vdc
Dielectric strength 1500Vac, 50Hz for 1min
Machine life 1x106 operations min
Electrical Life 1x105 operations min
Operating temperature -40-85 ℃
Operating humidity 45 to 85% RH, no condensation
Alias name FFS02 pedal switch
▇ FFS02 foot switch child models
No Model Number Case Material Action Method Case Color MOQ Unit Price Related Product
1 FFS02-PLB Plastic Self-lock Black 1 US $0.91 Order
2 FFS02-PLW Plastic Self-lock White 1 US $0.91 Order
3 FFS02-PLJ Plastic Self-lock Gold 1 US $1.02 Visiting...
4 FFS02-PLT Plastic Self-lock Transparent 1 US $1.07 Order
5 FFS02-PRB Plastic Reset Black 1 US $0.91 Order Unfold
6 FFS02-PRW Plastic Reset White 1 US $0.91 Order
7 FFS02-PRJ Plastic Reset Gold 1 US $1.02 Order
8 FFS02-PRT Plastic Reset Transparent 1 US $1.07 Order
Packaging Details
Product quantity: 1pc
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
