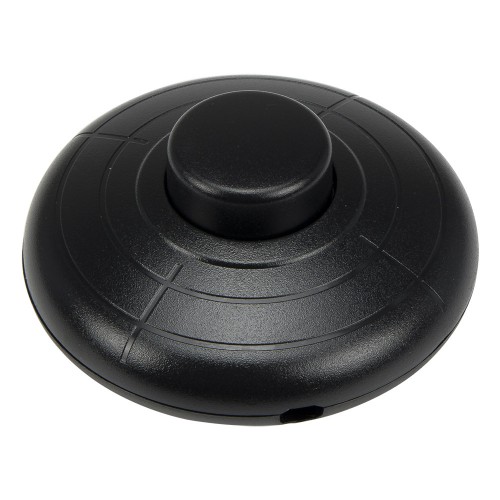

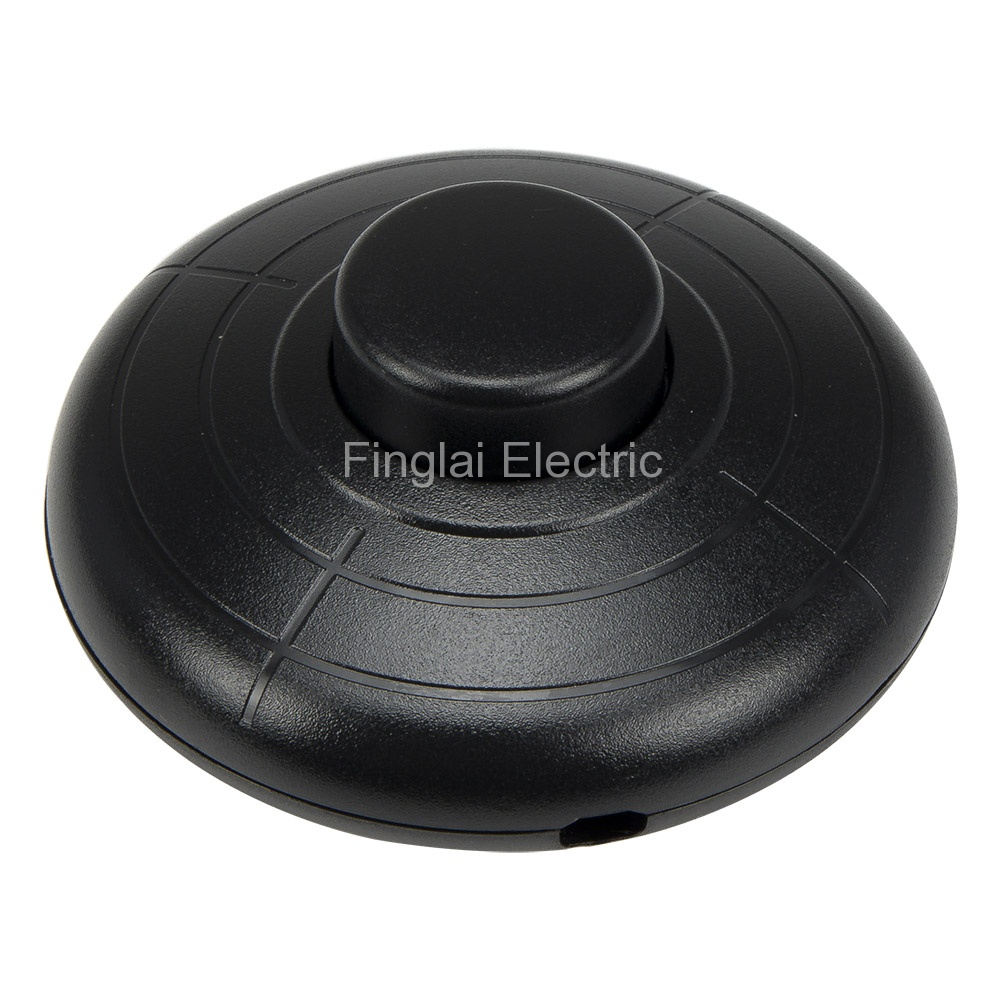

FFS01series screw mounted round foot hand switches for 317 floor lamp
Main child models
Price: US $2.54 / piece
Model number: FFS01-PLB
Product name: Foot switch
Product description
▇ Model number and parameters
| Model number | Online store: |
| FFS01 | Visiting... |
▇ FFS01 foot switch model number legend
FFS01
Parent Model Number
▇ General
| Model number | FFS01 |
| Action method | Self-lock, reset |
| Contact rating | 2A@250VAC |
| Case material | Flame retardant and environmental protection PC |
| Case color | Black, white, gold, gray, transparent |
| Cable mounting type | Screw |
| External dimensions | Φ70mm |
| Matched micro switch | FMS01-N |
| Contact resistance | 20mΩ max (First time) |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 1500Vac, 50Hz for 1min |
| Machine life | 1x106 operations min |
| Electrical Life | 1x105 operations min |
| Operating temperature | -40-85 ℃ |
| Operating humidity | 45 to 85% RH, no condensation |
| Alias name | FFS01 pedal switch |
▇ FFS01 foot switch child models
| No | Model Number | Case Material | Action Method | Case Color | MOQ | Unit Price |
| 1 | FFS01-PLB | Plastic | Self-lock | Black | 1 | US $2.54 |
| 2 | FFS01-PLW | Plastic | Self-lock | White | 1 | US $2.54 |
| 3 | FFS01-PLJ | Plastic | Self-lock | Gold | 1 | US $2.56 |
| 4 | FFS01-PLH | Plastic | Self-lock | Gray | 1 | US $2.56 |
| 5 | FFS01-PLT | Plastic | Self-lock | Transparent | 1 | US $2.56 |
| 6 | FFS01-PRB | Plastic | Reset | Black | 1 | US $2.54 |
| 7 | FFS01-PRW | Plastic | Reset | White | 1 | US $2.54 |
| 8 | FFS01-PRJ | Plastic | Reset | Gold | 1 | US $2.56 |
| 9 | FFS01-PRH | Plastic | Reset | Gray | 1 | US $2.56 |
| 10 | FFS01-PRT | Plastic | Reset | Transparent | 1 | US $2.56 |
Samll switch is mounted in the foot switch by screw
The wires can be connected to the foot switch by screw
