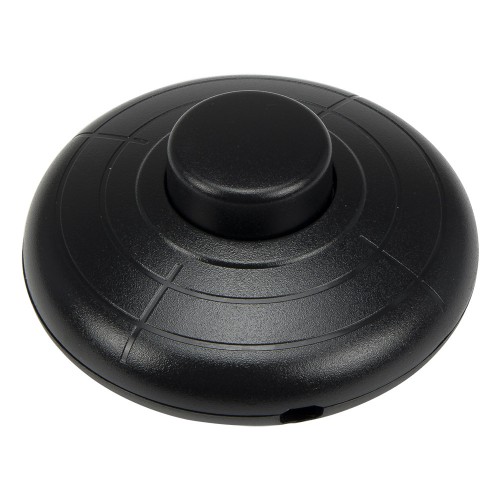

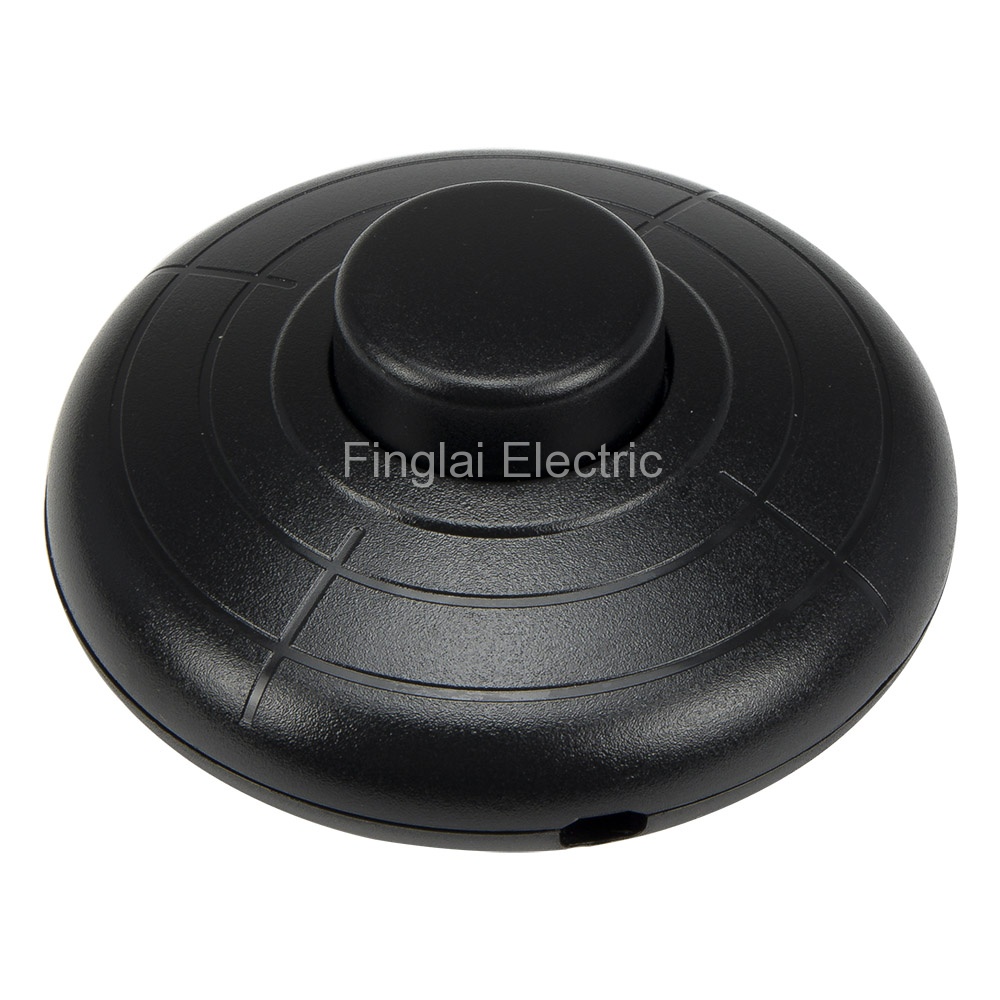

FFS01 black screw mounted round reset foot hand switch for 317 floor lamp
Product features
Mouse over to zoom in
FFS01 black screw mounted round reset foot hand switch for 317 floor lamp
Price: US $2.54 / piece
Model number: FFS01-PRB
Product name: Foot switch
Deliver to:
Shipping:
US $5.6via
Estimated Delivery Time: 9-15 days
Total price:US $8.14
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
Model number | Online store:
|
FFS01 | Visiting... |
▇ FFS01 foot switch model number legend
▇ General
Model number |
FFS01 |
Action method |
Self-lock, reset |
Contact rating |
2A@250VAC |
Case material |
Flame retardant and environmental protection PC |
Case color |
Black, white, gold, gray, transparent |
Cable mounting type |
Screw |
External dimensions |
Φ70mm |
Matched micro switch |
FMS01-N |
Contact resistance |
20mΩ max (First time) |
Insulation resistance |
100MΩ min at 500Vdc |
Dielectric strength |
1500Vac, 50Hz for 1min |
Machine life |
1x106 operations min |
Electrical Life |
1x105 operations min |
Operating temperature |
-40-85 ℃ |
Operating humidity |
45 to 85% RH, no condensation |
Alias name |
FFS01 pedal switch |
▇ FFS01 foot switch child models
No |
Model Number |
Case Material |
Action Method |
Case Color |
MOQ |
Unit Price |
Related Product |
1 |
FFS01-PLB |
Plastic |
Self-lock |
Black |
1 |
US $2.54 |
Order |
2 |
FFS01-PLW |
Plastic |
Self-lock |
White |
1 |
US $2.54 |
Order |
3 |
FFS01-PLJ |
Plastic |
Self-lock |
Gold |
1 |
US $2.56 |
Order |
4 |
FFS01-PLH |
Plastic |
Self-lock |
Gray |
1 |
US $2.56 |
Order |
5 |
FFS01-PLT |
Plastic |
Self-lock |
Transparent |
1 |
US $2.56 |
Order Unfold |
6 |
FFS01-PRB |
Plastic |
Reset |
Black |
1 |
US $2.54 |
Visiting... |
7 |
FFS01-PRW |
Plastic |
Reset |
White |
1 |
US $2.54 |
Order |
8 |
FFS01-PRJ |
Plastic |
Reset |
Gold |
1 |
US $2.56 |
Order |
9 |
FFS01-PRH |
Plastic |
Reset |
Gray |
1 |
US $2.56 |
Order |
10 |
FFS01-PRT |
Plastic |
Reset |
Transparent |
1 |
US $2.56 |
Order |
Samll switch is mounted in the foot switch by screw
The wires can be connected to the foot switch by screw
Packaging Details
Product quantity: 1pc
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
