SN04-P 18x18x36 5mm sensing DC PNP NO 1.5m cable length prism shape inductive proximity sensor
13 sold
Product features
Mouse over to zoom in

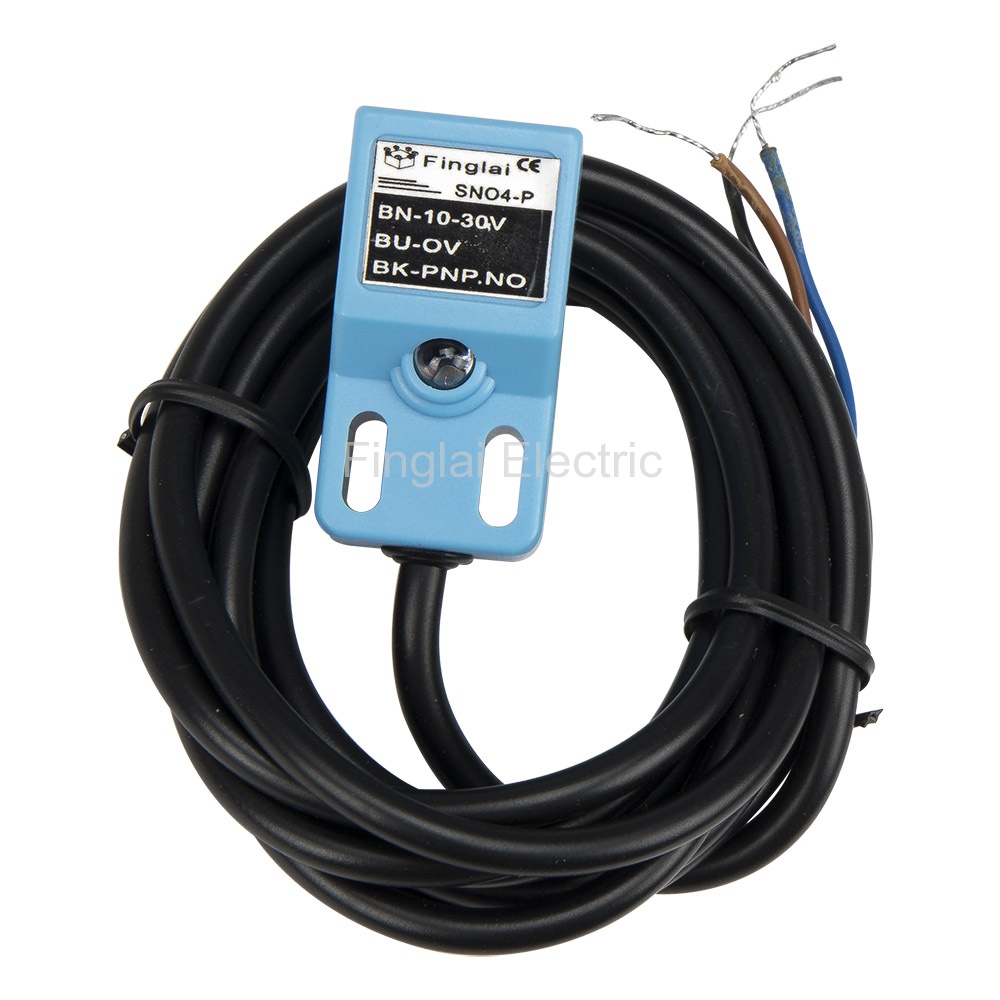

SN04-P 18x18x36 5mm sensing DC PNP NO 1.5m cable length prism shape inductive proximity sensor
Product description
▇ Operating form and model number
| Current type | Operating form | Contact form | Model number | Cable length | Online store: |
| DC | NPN | NO | SN04-N | 1.5m | US $1.23/ pieceOrder |
| DC | NPN | NO | SN04-N-2.5 | 2.5m | US $1.49/ pieceOrder |
| DC | NPN | NC | SN04-N2 | 1.5m | US $1.23/ pieceOrder |
| DC | NPN | NC | SN04-N2-2.5 | 2.5m | US $1.49/ pieceOrder |
| DC | PNP | NO | SN04-P | 1.5m | Visiting... |
| DC | PNP | NO | SN04-P-2.5 | 2.5m | US $1.49/ pieceOrder |
| DC | PNP | NC | SN04-P2 | 1.5m | US $1.19/ pieceOrder |
| DC | PNP | NC | SN04-P2-2.5 | 2.5m | US $1.49/ pieceOrder |
| AC | Two wires | NO | SN04-Y | 1.5m | US $1.63/ pieceOrder |
▇ General
| Model number | SN04 series |
| External dimensions | 18x18x36 |
| Installation type | Detect from front |
| Detection distance | 5mm |
| Supply voltage | 10-30Vdc; 90-250Vac, 50/60Hz |
| Rated output current | N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA |
| Standard detected object | Mild steel (18x18x1mm) |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency | NPN or PNP: 0.6kHz; Two wires of DC: 0.5kHz; Two wires of AC: 25Hz |
| Matched mounting bracket | 11mm center-to-center mounting distance square mounting bracket |
| Leakage current | N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max |
| Hysteresis | 10% max. of sensing distance |
| Protection circuit | DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor |
| Insulation resistance | 50MΩ min (between charging part and housing) |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) |
| Temperature influence | ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C ±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C |
| Voltage influence | ±10% max. of sensing distance in rated voltage range ±15% |
| IP Rating | IP67 |
| Cable length | 1.5m, can be customized |
| Material | Case: ABS; Sensing surface: ABS |
Packaging Details
Product quantity: 1pc
Package weight: 0.07kg
Package size: 10 x 10 x 6 cm
