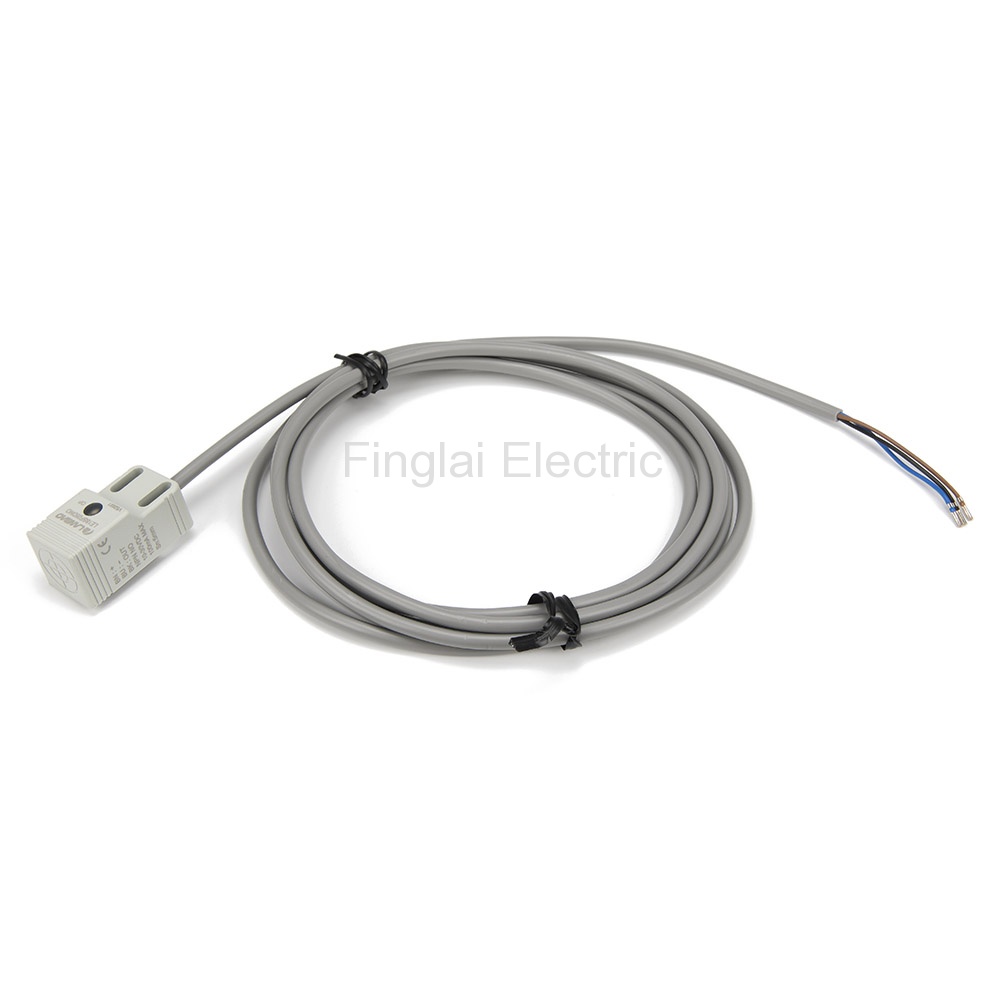

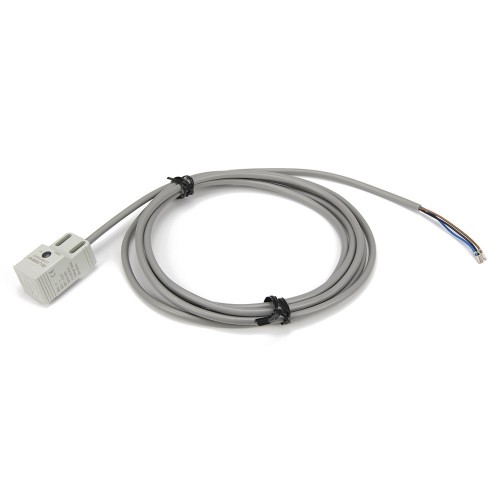

LE18SF05DNO 18x18x36 5mm sensing DC NPN NO 2m cable length prism shape inductive proximity sensor

Product features

Mouse over to zoom in

Price: US $4.92 / piece

Model number: LE18SF05DNO

Product name: Prism shape proximity sensor

Deliver to:

Shipping:

US $5.97via

Estimated Delivery Time: 9-15 days

Quantity:

Total price:US $10.89

Buy Now

Add to Cart

Inquire

Payment:

PayPal/Credit CardWESTERN UNIONBANK TRANSFER

Product description

▇ Operating form and model number

▇ General

Model number	LE18SF05 series
External dimensions	18x18x36
Installation type	Detect from front
Detection distance	5mm
Supply voltage	10-30Vdc
Rated output current	100mA max
Standard detected object	Mild steel (18x18x1mm)
Sensing object	Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency	NPN or PNP: 0.7kHz
Leakage current	13mA max
Hysteresis	10% max. of sensing distance
Protection circuit	DC: Reverse connection protection, Surge suppressor, Short-circuit protection
Insulation resistance	50MΩ min (between charging part and housing)
Dielectric strength	1000Vac, 1min (between charging part and housing)
Temperature influence	±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C ±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence	±10% max. of sensing distance in rated voltage range ±15%
IP Rating	IP67
Cable length	2m PVC cabel
Material	Case: PBT; Sensing surface: ABS

Packaging Details

Product quantity: 1pc

Package weight: 0.1kg

Package size: 10 x 10 x 6 cm
