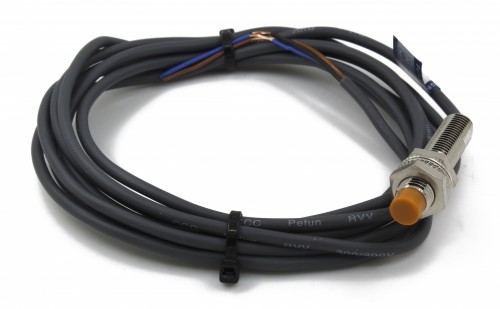

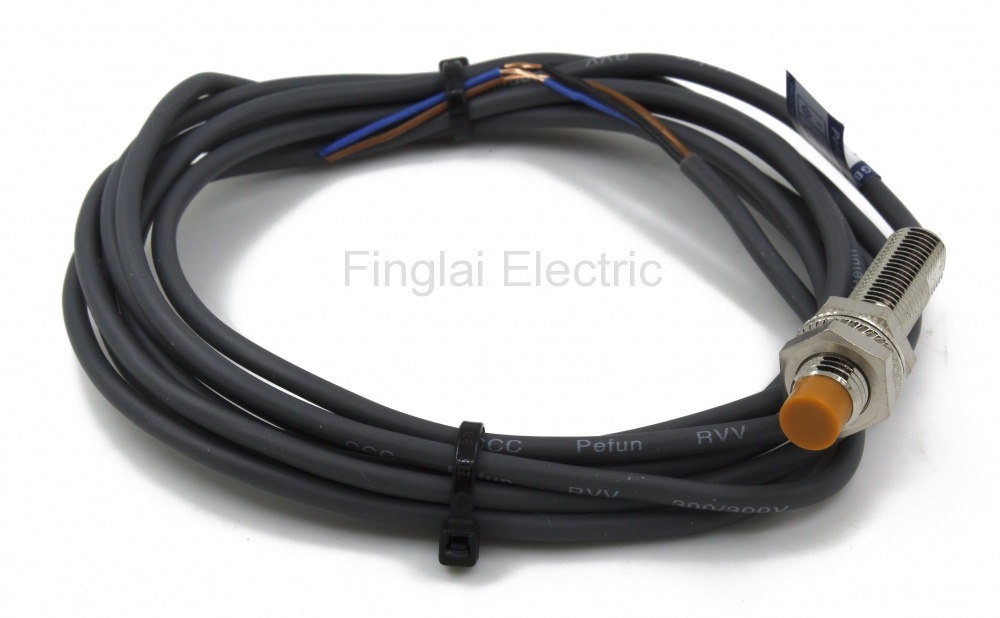

GBM2-8GM-N1 full screw proximity sensor
Price: US $12.07 / piece
Model number: GBM2-8GM-N1
Product name: Full screw proximity sensor
Deliver to:
Shipping:
US $5.97via
Estimated Delivery Time: 9-15 days
Quantity:
Total price:US $18.04
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Operating form and model number
Current typeOperating formContact formConnection formModel numberOnline store:
DCNPNNOWire leadGBM2-8GM-N1Visiting...
DCNPNNCWire leadGBM2-8GM-N2US $12.07/ pieceOrder
DCPNPNOWire leadGBM2-8GM-P1US $12.07/ pieceOrder
DCPNPNCWire leadGBM2-8GM-P2US $12.07/ pieceOrder
DCTwo wiresNOWire leadGBM2-8GM-D1US $12.07/ pieceOrder
DCTwo wiresNCWire leadGBM2-8GM-D2US $12.07/ pieceOrder
ACTwo wiresNOWire leadGBM2-8GM-A1
ACTwo wiresNCWire leadGBM2-8GM-A2
DCNPNNOConnectorGBM2-8GM-N1-L
DCNPNNCConnectorGBM2-8GM-N2-L
DCPNPNOConnectorGBM2-8GM-P1-L
DCPNPNCConnectorGBM2-8GM-P2-L
DCTwo wiresNOConnectorGBM2-8GM-D1-L
DCTwo wiresNCConnectorGBM2-8GM-D2-L
ACTwo wiresNOConnectorGBM2-8GM-A1-L
ACTwo wiresNCConnectorGBM2-8GM-A2-L
▇ General
Model number GBM2-8GM series
External dimensions M8x1x40
Installation type Non-shielded
Detection distance 2mm±10%
Setting distance 0-1.6 mm
Supply voltage 12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object Mild steel (12x12x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency NPN or PNP: 0.8kHz; Two wires of DC: 0.8kHz; Two wires of AC: 25Hz
Leakage current N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis 10% max. of sensing distance
Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
Temperature influence ±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃
±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP67
Material Case: Brass-nickel plated; Sensing surface: ABS
Packaging Details
Product quantity: 1pc
Package weight: 0.1kg
Package size: 10 x 10 x 5 cm
