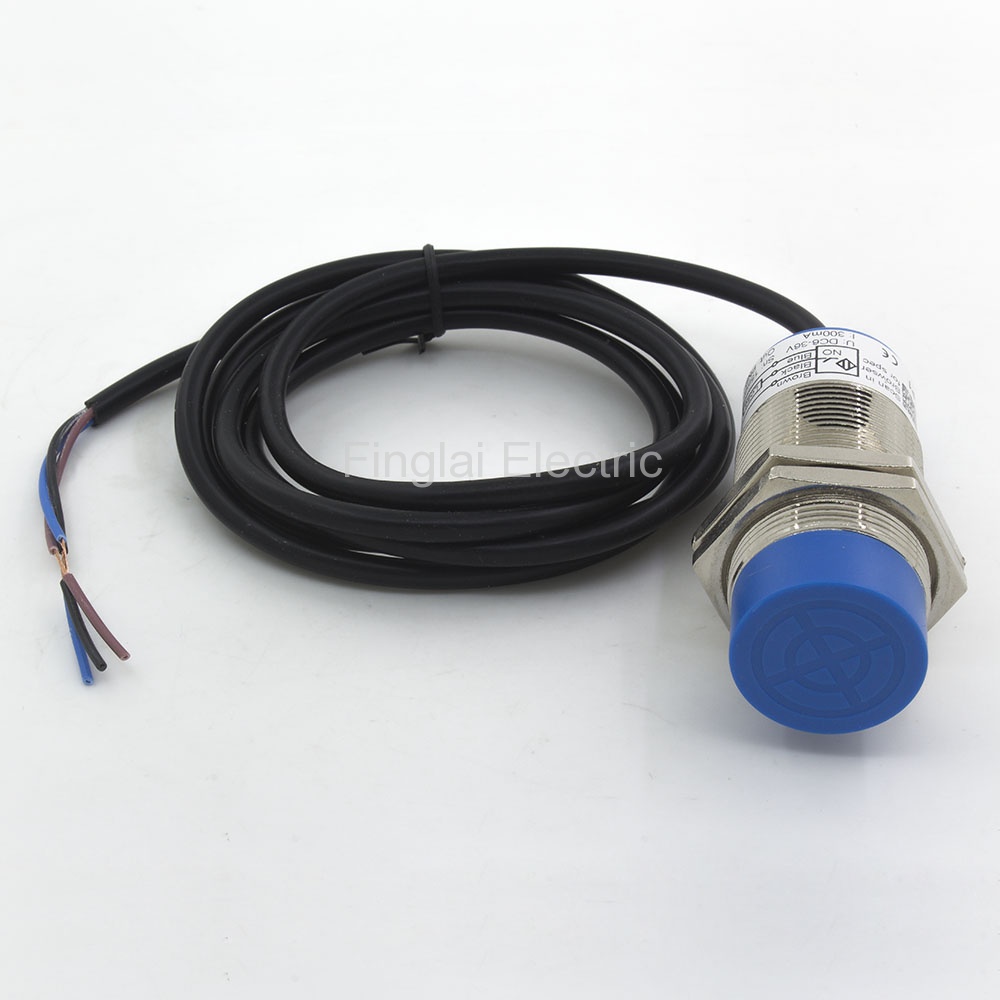

GBM15-30GM full screw inductive proximity sensor

Operating form and model number
Current typeOperating formContact formConnection formModel numberOnline store:
DCNPNNOWire leadGBM15-30GM-N1US $13.14/ pieceOrderAdd to Cart
DCNPNNCWire leadGBM15-30GM-N2US $13.14/ pieceOrderAdd to Cart
DCNPNNO+NCWire leadGBM15-30GM-N4
DCPNPNOWire leadGBM15-30GM-P1US $13.14/ pieceOrderAdd to Cart
DCPNPNCWire leadGBM15-30GM-P2US $13.14/ pieceOrderAdd to Cart
DCPNPNO+NCWire leadGBM15-30GM-P4
DCTwo wiresNOWire leadGBM15-30GM-D1US $13.14/ pieceOrderAdd to Cart
DCTwo wiresNCWire leadGBM15-30GM-D2US $13.14/ pieceOrderAdd to Cart
ACTwo wiresNOWire leadGBM15-30GM-A1US $13.14/ pieceOrderAdd to Cart
ACTwo wiresNCWire leadGBM15-30GM-A2US $13.14/ pieceOrderAdd to Cart
ACThree wiresNO+NCWire leadGBM15-30GM-A4
DCNPNNOConnectorGBM15-30GM-N1-L
DCNPNNCConnectorGBM15-30GM-N2-L
DCNPNNO+NCConnectorGBM15-30GM-N4-L
DCPNPNOConnectorGBM15-30GM-P1-L
DCPNPNCConnectorGBM15-30GM-P2-L
DCPNPNO+NCConnectorGBM15-30GM-P4-L
DCTwo wiresNOConnectorGBM15-30GM-D1-L
DCTwo wiresNCConnectorGBM15-30GM-D2-L
ACTwo wiresNOConnectorGBM15-30GM-A1-L
ACTwo wiresNCConnectorGBM15-30GM-A2-L
ACThree wiresNO+NCConnectorGBM15-30GM-A4-L
General
Model number GBM15-30GM series
External dimensions M30x1.5x60
Installation type Non-shielded
Detection distance 15mm±10%
Setting distance 0-13 mm
Supply voltage 12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object Mild steel (54x54x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency NPN or PNP: 0.4kHz; Two wires of DC: 0.4kHz; Two wires of AC: 25Hz
Leakage current N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis 10% max. of sensing distance
Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
Temperature influence ±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃
±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP67
Material Case: Brass-nickel plated; Sensing surface: ABS
