TL-W5MC2 30x18x10 5mm sensing DC 6-36V NPN NC flat shape inductive proximity sensor
Product features
Mouse over to zoom in

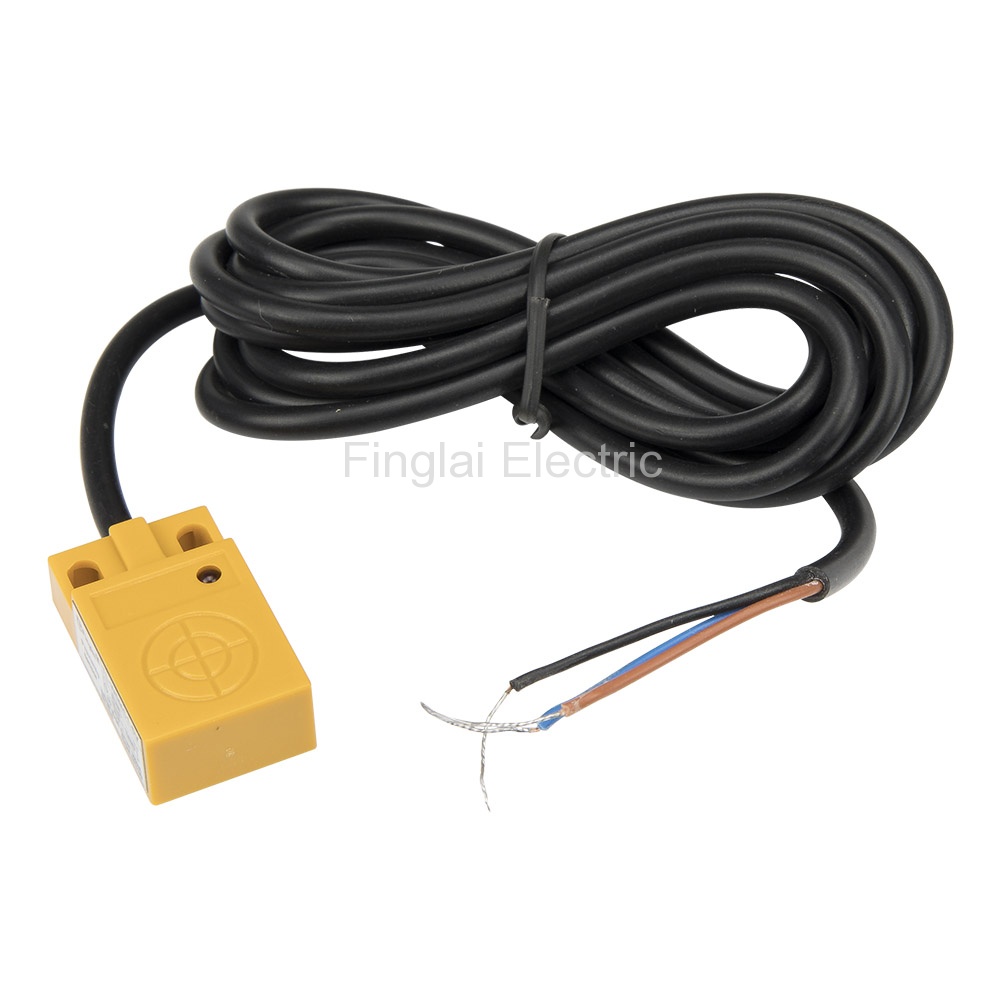

TL-W5MC2 30x18x10 5mm sensing DC 6-36V NPN NC flat shape inductive proximity sensor
Product description
▇ Operating form and model number
| Current type | Operating form | Contact form | Model number | Supply voltage | Online store: |
| DC | NPN | NO | TL-W5MC1 | 6-36VDC | US $2.1/ pieceOrder |
| DC | NPN | NO | TL-W5MC1-5V | 5VDC | US $2.93/ pieceOrder |
| DC | NPN | NC | TL-W5MC2 | 6-36VDC | Visiting... |
| DC | NPN | NC | TL-W5MC2-5V | 5VDC | US $2.93/ pieceOrder |
| DC | PNP | NO | TL-W5MF1 | 6-36VDC | US $2.1/ pieceOrder |
| DC | PNP | NO | TL-W5MF1-5V | 5VDC | US $2.93/ pieceOrder |
| DC | PNP | NC | TL-W5MF2 | 6-36VDC | US $2.1/ pieceOrder |
| DC | PNP | NC | TL-W5MF2-5V | 5VDC | US $2.93/ pieceOrder |
| DC | Two wires | NO | TL-W5MD1 | 6-36VDC | US $2.1/ pieceOrder |
| DC | Two wires | NC | TL-W5MD2 | 6-36VDC | |
| AC | Two wires | NO | TL-W5MY1 | 90-250VAC | |
| AC | Two wires | NC | TL-W5MY2 | 90-250VAC |
▇ General
| Model number | TL-W5M series |
| External dimensions | 30x18x10 |
| Installation type | Non-shielded |
| Detection distance | 5mm±10% |
| Setting distance | 0-4 mm |
| Supply voltage | 6-36VDC; 90-250VAC, 50/60Hz |
| Rated output current | N.P Type: 200mA max; D type: 200mA max; AC Type: 500mA |
| Standard detected object | Mild steel (18x18x1mm) |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency | NPN or PNP: 0.5kHz; Two wires of DC: 0.5kHz; Two wires of AC: 25Hz |
| Matched mounting bracket | 11mm center-to-center mounting distance square mounting bracket |
| Leakage current | N.P Type: 0.05mA max; D type: 0.4mA max; A Type: 1.6mA max |
| Hysteresis | 10% max. of sensing distance |
| Protection circuit | DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor |
| Insulation resistance | 50MΩ min (between charging part and housing) |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) |
| Temperature influence | ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C ±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C |
| Voltage influence | ±10% max. of sensing distance in rated voltage range ±15% |
| IP Rating | IP67 |
| Cable length | 1.5m |
| Material | Case: ABS; Sensing surface: ABS |
Packaging Details
Product quantity: 1pc
Package weight: 0.05kg
Package size: 10 x 10 x 2 cm
