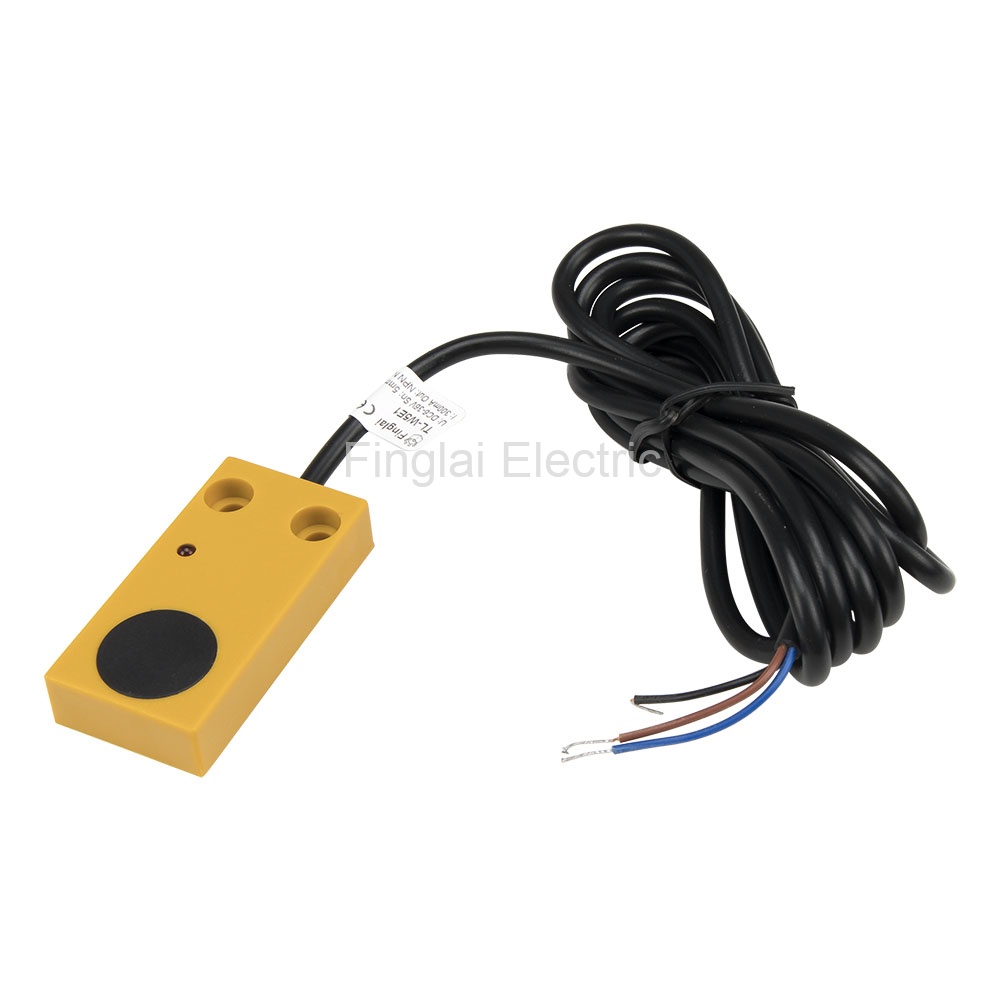

TL-W5E1 flat shape proximity sensor

Product features
Mouse over to zoom in
TL-W5E1 flat shape proximity sensor
Price: US $4.87 / piece
Model number: TL-W5E1
Product name: Flat shape proximity sensor
Deliver to:
Shipping:
US $5.32via
Estimated Delivery Time: 12-17 days
Quantity:



Total price:US $10.19
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
Operating form and model number
Current typeOperating formContact formModel numberOnline store:
DCNPNNOTL-W5E1Visiting...
DCNPNNCTL-W5E2US $4.87/ pieceOrder
DCPNPNOTL-W5F1US $4.87/ pieceOrder
DCPNPNCTL-W5F2US $4.87/ pieceOrder
DCTwo wiresNOTL-W5D1US $4.87/ pieceOrder
DCTwo wiresNCTL-W5D2US $4.87/ pieceOrder
ACTwo wiresNOTL-W5A1
ACTwo wiresNCTL-W5A2
General
Model number TL-W5 series
External dimensions 50x25x10
Installation type Non-shielded
Detection distance 5mm±10%
Setting distance 0-4 mm
Supply voltage 12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object Mild steel (18x18x1mm)
Sensing object Magnetic metals (if it is not magnetic metals, the sensing distance would decrease)
Response frequency NPN or PNP: 0.6kHz; Two wires of DC: 0.5kHz; Two wires of AC: 25Hz
Matched mounting bracket 11mm center-to-center mounting distance square mounting bracket
Leakage current N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis 10% max. of sensing distance
Protection circuit DC: Reverse connection protection, Surge suppressor, Short-circuit protection
AC: Surge suppressor
Insulation resistance 50MΩ min (between charging part and housing)
Dielectric strength 1000Vac, 1min (between charging part and housing)
Temperature influence ±10% max. of sensing distance at 23°C within temperature range of -25°C to 60°C
±15% max. of sensing distance at 23°C within temperature range of -30°C to 65°C
Voltage influence ±10% max. of sensing distance in rated voltage range ±15%
IP Rating IP67
Material Case: ABS; Sensing surface: ABS
Packaging Details
Product quantity: 1pc
Package weight: 0.05kg
Package size: 10 x 10 x 2 cm
