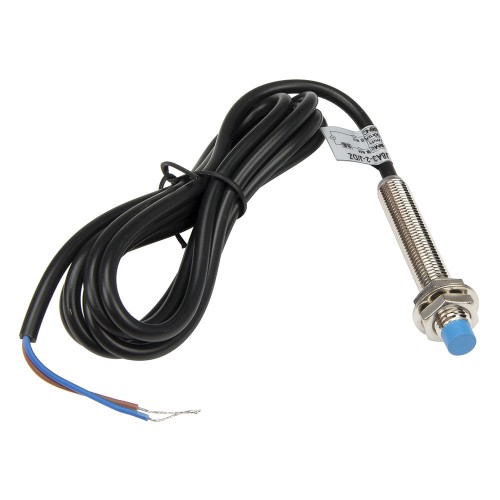

LJ8A3-2-J/DZ M8 2mm sensing AC 90-250V 2 wires NC cylinder inductive proximity switch sensor
Product features
Mouse over to zoom in
LJ8A3-2-J/DZ M8 2mm sensing AC 90-250V 2 wires NC cylinder inductive proximity switch sensor
Product description
▇ Operating form and model number
| Current type | Operating form | Contact form | Connection form | Model number | Remark | Online store: |
| DC | NPN | NO | Wire lead | LJ8A3-2-Z/BX | 6-36Vdc | US $2/ pieceOrder |
| DC | NPN | NO | Wire lead | LJ8A3-2-Z/BX-5V | 5Vdc | US $2.3/ pieceOrder |
| DC | NPN | NO | Wire lead | LJ8A3-2-Z/BX-5V-4 | 5Vdc, 4m cable | US $2.83/ pieceOrder |
| DC | NPN | NC | Wire lead | LJ8A3-2-Z/AX | 6-36Vdc | US $2/ pieceOrder |
| DC | NPN | NC | Wire lead | LJ8A3-2-Z/AX-5V | 5Vdc | US $2.5/ pieceOrder |
| DC | PNP | NO | Wire lead | LJ8A3-2-Z/BY | 6-36Vdc | US $2/ pieceOrder |
| DC | PNP | NC | Wire lead | LJ8A3-2-Z/AY | 6-36Vdc | US $2.14/ pieceOrder |
| DC | Two wires | NO | Wire lead | LJ8A3-2-Z/EX | 6-36Vdc | US $2.17/ pieceOrder |
| DC | Two wires | NC | Wire lead | LJ8A3-2-Z/DX | 6-36Vdc | US $2.17/ pieceOrder |
| AC | Two wires | NO | Wire lead | LJ8A3-2-J/EZ | 90-250Vac | US $2.17/ pieceOrder |
| AC | Two wires | NC | Wire lead | LJ8A3-2-J/DZ | 90-250Vac | Visiting... |
▇ General
| Model number | LJ8A3-2 series |
| External dimensions | M8x50 |
| Installation type | Non-shielded |
| Detection distance | 2mm |
| Setting distance | 0-1.6 mm |
| Supply voltage | 6-36Vdc, 5Vdc; 90-250Vac, 50/60Hz |
| Output current | DC type: 300mA max; AC Type: 400mA |
| Standard detected object | Mild steel (8x8x1mm) |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency | 500Hz |
| Matched mounting bracket | M8 mounting bracket |
| Output indication | Red LED |
| Short-circuit protection | No |
| Reverse connection protection | Yes |
| Insulation resistance | 50MΩ min (between charging part and housing) |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) |
| IP Rating | IP65 |
| Operating temperature | -25 to 70 ℃ (13 to 158 ℉) |
| Cable length | 1.2m, PVC cable |
| Material | Case: Brass-nickel plated; Sensing surface: ABS |
| Alias name | LJ8A3-2 series cylinder inductive proximity switches |
Packaging Details
Product quantity: 1pc
Package weight: 0.05kg
Package size: 10 x 10 x 2 cm
