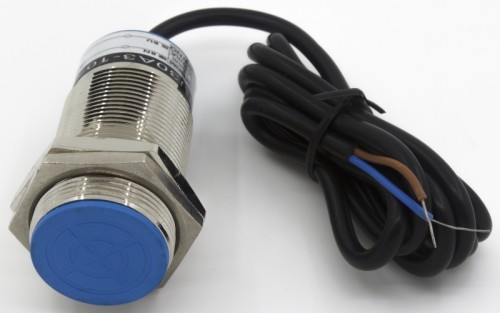

LJ30A3-10-J/EZ M30 10mm sensing AC 90-250V 2 wires NO cylinder inductive proximity switch sensor
Product features
Mouse over to zoom in
LJ30A3-10-J/EZ M30 10mm sensing AC 90-250V 2 wires NO cylinder inductive proximity switch sensor
Price: US $3.74 / piece
Model number: LJ30A3-10-J/EZ
Product name: Cylinder proximity sensor
Deliver to:
Shipping:
US $7.94via
Estimated Delivery Time: 9-15 days
Total price:US $11.68
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Operating form and model number
Current type | Operating form | Contact form | Connection form | Model number | Online store:
|
DC | NPN | NO | Wire lead | LJ30A3-10-Z/BX | |
DC | NPN | NC | Wire lead | LJ30A3-10-Z/AX | |
DC | NPN | NO+NC | Wire lead | LJ30A3-10-Z/CX | |
DC | PNP | NO | Wire lead | LJ30A3-10-Z/BY | |
DC | PNP | NC | Wire lead | LJ30A3-10-Z/AY | |
DC | PNP | NO+NC | Wire lead | LJ30A3-10-Z/CY | |
DC | Two wires | NO | Wire lead | LJ30A3-10-Z/EX | |
DC | Two wires | NC | Wire lead | LJ30A3-10-Z/DX | |
AC | Two wires | NO | Wire lead | LJ30A3-10-J/EZ | Visiting... |
AC | Two wires | NC | Wire lead | LJ30A3-10-J/DZ | |
▇ General
Model number |
LJ30A3-10 series |
External dimensions |
M30x75 |
Installation type |
Shielded |
Detection distance |
10mm |
Setting distance |
0-8 mm |
Supply voltage |
6-36Vdc; 90-250Vac, 50/60Hz |
Output current |
DC type: 300mA max; AC Type: 400mA |
Standard detected object |
Mild steel (18x18x1mm) |
Sensing object |
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
Response frequency |
500Hz |
Output indication |
Red LED |
Short-circuit protection |
Yes |
Reverse connection protection |
Yes |
Insulation resistance |
50MΩ min (between charging part and housing) |
Dielectric strength |
1000Vac, 1min (between charging part and housing) |
IP Rating |
IP67 |
Operating temperature |
-25 to 70 ℃ (13 to 158 ℉) |
Cable length |
1.2m, PVC cable |
Material |
Case: Brass-nickel plated; Sensing surface: ABS |
Packaging Details
Product quantity: 1pc
Package weight: 0.21kg
Package size: 13 x 8 x 9 cm
