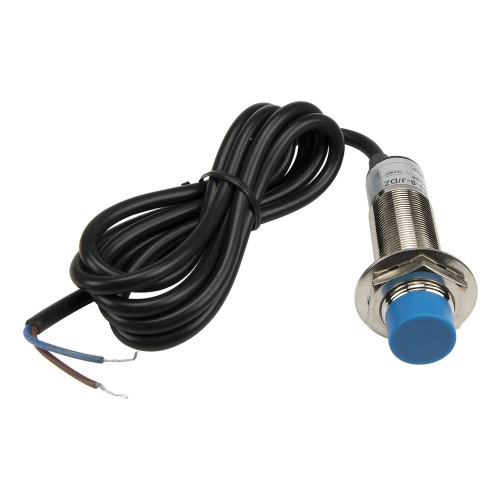

LJ18A3-8-J/DZ M18 8mm sensing AC 90-250V 2 wires NC cylinder inductive proximity switch sensor
8 sold
Product features
Mouse over to zoom in
LJ18A3-8-J/DZ M18 8mm sensing AC 90-250V 2 wires NC cylinder inductive proximity switch sensor
Product description
▇ Operating form and model number
| Current type | Operating form | Contact form | Connection form | Model number | Remark | Online store: |
| DC | NPN | NO | Wire lead | LJ18A3-8-Z/BX | 6-36Vdc | US $1.69/ pieceOrder |
| DC | NPN | NO | Wire lead | LJ18A3-8-Z/BX-15MM | 6-36Vdc, 15mm Sn | US $4.19/ pieceOrder |
| DC | NPN | NO | Wire lead | LJ18A3-8-Z/BX-20MM | 6-36Vdc, 20mm Sn | US $4.4/ pieceOrder |
| DC | NPN | NO | Wire lead | LJ18A3-8-Z/BX-5V | 5Vdc | US $2.61/ pieceOrder |
| DC | NPN | NC | Wire lead | LJ18A3-8-Z/AX | 6-36Vdc | US $1.69/ pieceOrder |
| DC | NPN | NC | Wire lead | LJ18A3-8-Z/AX-5V | 5Vdc | US $2.61/ pieceOrder |
| DC | NPN | NO+NC | Wire lead | LJ18A3-8-Z/CX | 6-36Vdc | US $2.73/ pieceOrder |
| DC | PNP | NO | Wire lead | LJ18A3-8-Z/BY | 6-36Vdc | US $1.69/ pieceOrder |
| DC | PNP | NO | Wire lead | LJ18A3-8-Z/BY-5V | 5Vdc | US $2.61/ pieceOrder |
| DC | PNP | NC | Wire lead | LJ18A3-8-Z/AY | 6-36Vdc | US $1.69/ pieceOrder |
| DC | PNP | NO+NC | Wire lead | LJ18A3-8-Z/CY | 6-36Vdc | US $2.73/ pieceOrder |
| DC | Two wires | NO | Wire lead | LJ18A3-8-Z/EX | 6-36Vdc | US $1.77/ pieceOrder |
| DC | Two wires | NC | Wire lead | LJ18A3-8-Z/DX | 6-36Vdc | US $1.77/ pieceOrder |
| AC | Two wires | NO | Wire lead | LJ18A3-8-J/EZ | 90-250Vac | US $1.77/ pieceOrder |
| AC | Two wires | NO | Wire lead | LJ18A3-8-J/EZ-36V | 36Vac | US $3.01/ pieceOrder |
| AC | Two wires | NO | Wire lead | LJ18A3-8-J/EZ-380V | 380Vac | US $3.01/ pieceOrder |
| AC | Two wires | NC | Wire lead | LJ18A3-8-J/DZ | 90-250Vac | Visiting... |
| AC | Two wires | NC | Wire lead | LJ18A3-8-J/DZ-36V | 36Vac | US $3.01/ pieceOrder |
| AC | Two wires | NC | Wire lead | LJ18A3-8-J/DZ-380V | 380Vac | US $3.01/ pieceOrder |
▇ General
| Model number | LJ18A3-8 series |
| External dimensions | M18x1x68 |
| Installation type | Non-shielded |
| Detection distance | 8mm, 15mm, 20mm |
| Setting distance | 6.4 mm |
| Supply voltage | 6-36Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz |
| Output current | DC type: 300mA max; AC Type: 400mA |
| Standard detected object | Mild steel (18x18x1mm) |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency | 500Hz |
| Matched mounting bracket | M18 90° bending mounting bracket, M18 straight mounting bracket |
| Output indication | Red LED |
| Short-circuit protection | No |
| Reverse connection protection | Yes |
| Insulation resistance | 50MΩ min (between charging part and housing) |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) |
| IP Rating | IP65 |
| Operating temperature | -25 to 70 ℃ (13 to 158 ℉) |
| Cable length | 1.2m, PVC cable |
| Material | Case: Brass-nickel plated; Sensing surface: ABS |
| Alias name | LJ18A3-8 series cylinder inductive proximity switches |
Packaging Details
Product quantity: 1pc
Package weight: 0.1kg
Package size: 10 x 10 x 5 cm
