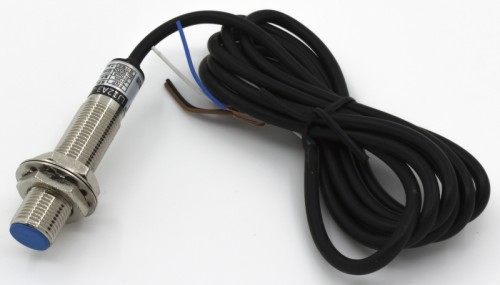

LJ12A3-2-Z/CY M12 2mm sensing DC 6-36V PNP NO+NC cylinder inductive proximity switch sensor
Product features
Mouse over to zoom in
LJ12A3-2-Z/CY M12 2mm sensing DC 6-36V PNP NO+NC cylinder inductive proximity switch sensor
Price: US $2.35 / piece
Model number: LJ12A3-2-Z/CY
Product name: Cylinder proximity sensor
Deliver to:
Shipping:
US $6.66via
Estimated Delivery Time: 9-17 days
Total price:US $9.01
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Operating form and model number
▇ General
| Model number |
LJ12A3-2 series |
| External dimensions |
M12x50 |
| Installation type |
Shielded |
| Detection distance |
2mm |
| Setting distance |
0-1.6 mm |
| Supply voltage |
6-36Vdc; 90-250Vac, 50/60Hz |
| Output current |
DC type: 300mA max; AC Type: 400mA |
| Standard detected object |
Mild steel (12x12x1mm) |
| Sensing object |
Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency |
500Hz |
| Matched mounting bracket |
M12 mounting bracket |
| Output indication |
Red LED |
| Short-circuit protection |
No |
| Reverse connection protection |
Yes |
| Insulation resistance |
50MΩ min (between charging part and housing) |
| Dielectric strength |
1000Vac, 1min (between charging part and housing) |
| IP Rating |
IP65 |
| Operating temperature |
-25 to 70 ℃ (13 to 158 ℉) |
| Cable length |
1.2m, PVC cable |
| Material |
Case: Brass-nickel plated; Sensing surface: ABS |
Packaging Details
Product quantity: 1pc
Package weight: 0.08kg
Package size: 10 x 10 x 4 cm
