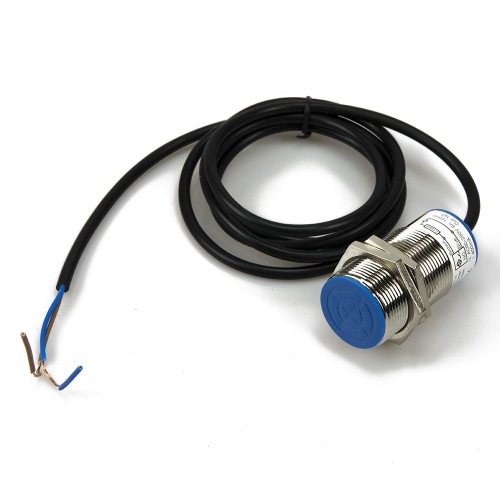

CAT10-30GM-A1 M30 10mm sensing AC two wries NO capacitive proximity switch sensor

Product features

Mouse over to zoom in

Price: US $8.23 / piece

Model number: CAT10-30GM-A1

Product name: Capacitive proximity sensor

Deliver to:

Shipping:

US $9.04via

Estimated Delivery Time: 9-17 days

DDP service: all applicable import duties and taxes are included in total order value.

Quantity:

Total price:US $17.27

Buy Now

Add to Cart

Inquire

Payment:

PayPalCredit CardWESTERN UNIONBANK TRANSFER

Need quotation for reference?Get quotation

Product description

▇ Operating form and model number

▇ General

Model number	CAT10-30GM series
External dimensions	M30x1.5x60
Installation type	Shielded
Detection distance	10mm±10%
Setting distance	0-8 mm
Supply voltage	12-24Vdc (6-36Vdc); 110-220Vac (36-250Vac), 50/60Hz
Rated output current	N.P Type: 300mA max; D type: 200mA max; AC Type: 400mA
Standard detected object	Iron SPCC (50x50x1mm)
Sensing object	Metals/Non-metals
Response frequency	50Hz
Leakage current	N.P Type: 13mA max; D type: 0.8mA max; A Type: 1.7mA max
Hysteresis	10% max. of sensing distance
Protection circuit	DC: Reverse connection protection, Surge suppressor, Short-circuit protection AC: Surge suppressor
Insulation resistance	50MΩ min (between charging part and housing)
Dielectric strength	1000Vac, 1min (between charging part and housing)
Temperature influence	±10% max. of sensing distance at 23℃ within temperature range of -25℃ to 60℃ ±15% max. of sensing distance at 23℃ within temperature range of -30℃ to 65℃
Voltage influence	±10% max. of sensing distance in rated voltage range ±15%
IP Rating	IP67
Material	Case: Brass-nickel plated; Sensing surface: ABS

Packaging Details

Product quantity: 1pc

Package weight: 0.21kg

Package size: 13 x 8 x 9 cm
