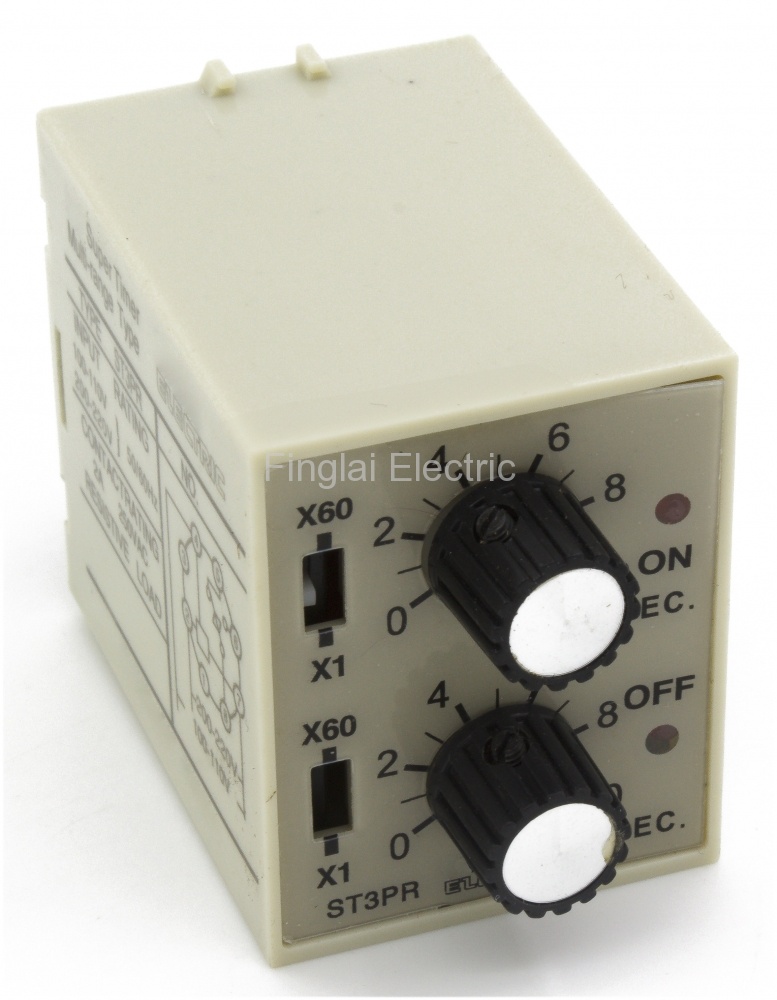

ST3PR AC 220V/110V 10s/10min time range repeat cycle SPDT time relay twin timer
Product features
Mouse over to zoom in
ST3PR AC 220V/110V 10s/10min time range repeat cycle SPDT time relay twin timer
Price: US $5.62 / piece
Model number: ST3PR-10S-10M
Product name: Time relay
Deliver to:
Shipping:
US $7.94via
Estimated Delivery Time: 9-15 days
Total price:US $13.56
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
| Model number | Contact form | Delay time | Online store:
|
| ST3PR | Repeat cycle SPDT | 10s-10min; 30s-30min; 60S-60min | Visiting... |
▇ ST3PR time relay model number legend
▇ General
| Model number |
ST3PR |
| Supply voltage |
220/110VAC |
| Tolerance |
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption |
3W max |
| Setting method |
Knob |
| Indication method |
LED |
| External dimensions |
40x50x84 mm |
| Contact rating |
2A@250Vac |
| Repeat accuracy |
±0.3%, ±0.05 sec |
| Setting error |
±0.5%, ±0.05 sec |
| Termination |
Octal plug-in (8 pin) |
| Matched socket |
PF083A |
| Mechanical life |
1x106 |
| Electrical life |
1x105 |
| Operating temperature |
0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity |
95% RH max, non-condensing |
| Alias name |
ST3PR timer |
▇ ST3PR time relay child models
| No |
Model Number |
Delay Time |
MOQ |
Unit Price |
Related Product |
| 1 |
ST3PR-10S-10M |
10s*10min |
1 |
US $5.62 |
Visiting... |
| 2 |
ST3PR-30S-30M |
30s*30min |
1 |
US $5.62 |
Order |
| 3 |
ST3PR-60S-60M |
60s*60min |
1 |
US $5.62 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.21kg
Package size: 10 x 10 x 7 cm
