ST3PF AC 220V 1s power off delay timer SPDT time relay
6 sold
Product features
Mouse over to zoom in

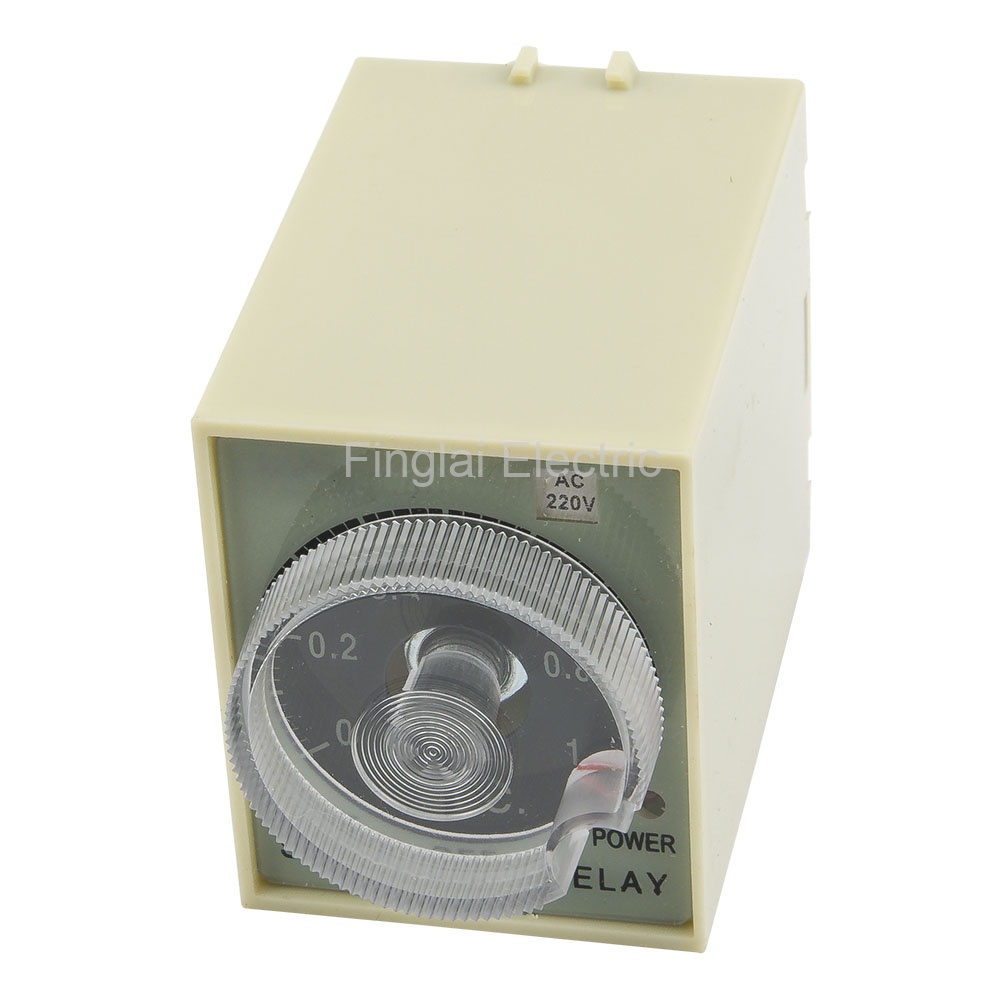

ST3PF AC 220V 1s power off delay timer SPDT time relay
Price: US $4.25 / piece
Model number: ST3PF-220VAC-1S
Product name: Time relay
Deliver to:
Shipping:
US $5.74via
Estimated Delivery Time: 9-15 days
Total price:US $9.99
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
| Model number | Contact form | Delay time | Online store:
|
| ST3PF | Off-delay SPDT | 1s/5s/10s/30s/60s/3min | Visiting... |
| ST3PF-T1 | Off-delay DPDT | 1s/5s/10s/30s/60s/3min | US $3.98 - 5.41/ pieceOrder (6) |
▇ ST3PF time relay model number legend
▇ General
| Model number |
ST3PF series |
| Supply voltage |
12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc |
| Tolerance |
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption |
3W max |
| Setting method |
Knob |
| Indication method |
LED |
| External dimensions |
50x40x57.5 mm |
| Perforate dimensions |
50.5 10x40.5 10 mm |
| Contact rating |
3A@250Vac, 5A@28Vdc |
| Repeat accuracy |
±0.3%, ±0.05 sec |
| Setting error |
±0.5%, ±0.05 sec |
| Termination |
8 pins |
| Mounting |
Panel, din rail |
| Matched socket |
PF083A, PF085A, US-08 |
| Matched mounting accessories |
FTRA01 mounting fastener, FTRA02 mounting panel |
| Mechanical life |
1x106 |
| Electrical life |
1x105 |
| Operating temperature |
0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity |
95% RH max, non-condensing |
| Alias name |
ST3PF series timer |
▇ ST3PF time relay child models
| No |
Model Number |
Supply Voltage |
Delay Time |
MOQ |
Unit Price |
Related Product |
| 1 |
ST3PF-220VAC-1S |
220VAC |
1s |
1 |
US $4.25 |
Visiting... |
| 2 |
ST3PF-220VAC-5S |
220VAC |
5s |
1 |
US $4.25 |
Order |
| 3 |
ST3PF-220VAC-10S |
220VAC |
10s |
1 |
US $4.25 |
Order |
| 4 |
ST3PF-220VAC-30S |
220VAC |
30s |
1 |
US $3.83 |
Order |
| 5 |
ST3PF-220VAC-60S |
220VAC |
60s |
1 |
US $3.83 |
Order Unfold |
| 6 |
ST3PF-220VAC-3M |
220VAC |
3min |
1 |
US $5.17 |
Order |
| 7 |
ST3PF-220VAC-5M |
220VAC |
5min |
1 |
US $5.65 |
Order |
| 8 |
ST3PF-220VAC-10M |
220VAC |
10min |
1 |
US $5.65 |
Order |
| 9 |
ST3PF-110VAC-1S |
110VAC |
1s |
1 |
US $4.25 |
Order |
| 10 |
ST3PF-110VAC-5S |
110VAC |
5s |
1 |
US $4.25 |
Order |
| 11 |
ST3PF-110VAC-10S |
110VAC |
10s |
1 |
US $4.25 |
Order |
| 12 |
ST3PF-110VAC-30S |
110VAC |
30s |
1 |
US $4.25 |
Order |
| 13 |
ST3PF-110VAC-60S |
110VAC |
60s |
1 |
US $4.25 |
Order |
| 14 |
ST3PF-110VAC-3M |
110VAC |
3min |
1 |
US $5.17 |
Order |
| 15 |
ST3PF-110VAC-5M |
110VAC |
5min |
1 |
US $5.65 |
Order |
| 16 |
ST3PF-110VAC-10M |
110VAC |
10min |
1 |
US $5.65 |
Order |
| 17 |
ST3PF-24V-1S |
24VAC/DC |
1s |
1 |
US $4.25 |
Order |
| 18 |
ST3PF-24V-5S |
24VAC/DC |
5s |
1 |
US $4.25 |
Order |
| 19 |
ST3PF-24V-10S |
24VAC/DC |
10s |
1 |
US $4.25 |
Order |
| 20 |
ST3PF-24V-30S |
24VAC/DC |
30s |
1 |
US $4.25 |
Order |
| 21 |
ST3PF-24V-60S |
24VAC/DC |
60s |
1 |
US $4.25 |
Order |
| 22 |
ST3PF-24V-3M |
24VAC/DC |
3min |
1 |
US $5.17 |
Order |
| 23 |
ST3PF-24V-5M |
24VAC/DC |
5min |
1 |
US $5.65 |
Order |
| 24 |
ST3PF-24V-10M |
24VAC/DC |
10min |
1 |
US $5.65 |
Order |
| 25 |
ST3PF-12V-1S |
12VAC/DC |
1s |
1 |
US $4.25 |
Order |
| 26 |
ST3PF-12V-5S |
12VAC/DC |
5s |
1 |
US $4.25 |
Order |
| 27 |
ST3PF-12V-10S |
12VAC/DC |
10s |
1 |
US $4.25 |
Order |
| 28 |
ST3PF-12V-30S |
12VAC/DC |
30s |
1 |
US $4.25 |
Order |
| 29 |
ST3PF-12V-60S |
12VAC/DC |
60s |
1 |
US $4.25 |
Order |
| 30 |
ST3PF-12V-3M |
12VAC/DC |
3min |
1 |
US $5.17 |
Order |
| 31 |
ST3PF-12V-5M |
12VAC/DC |
5min |
1 |
US $5.65 |
Order |
| 32 |
ST3PF-12V-10M |
12VAC/DC |
10min |
1 |
US $5.65 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
