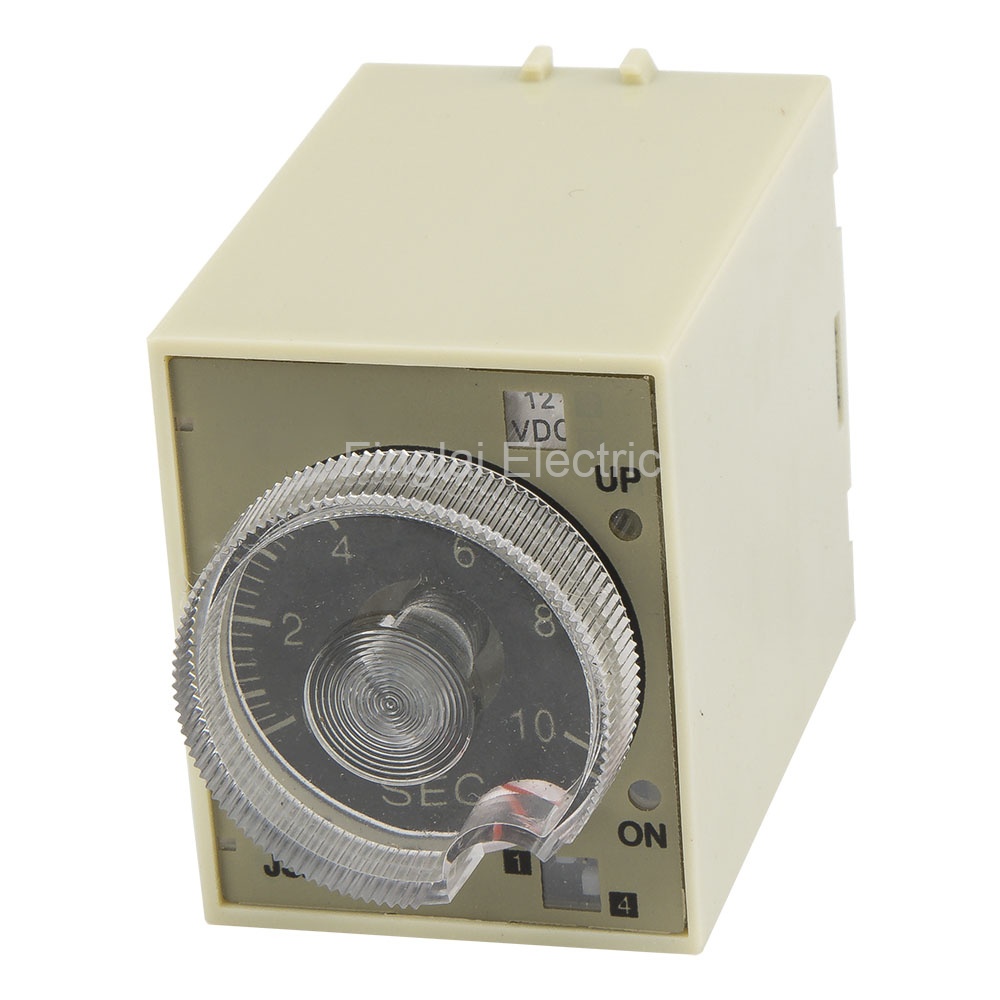

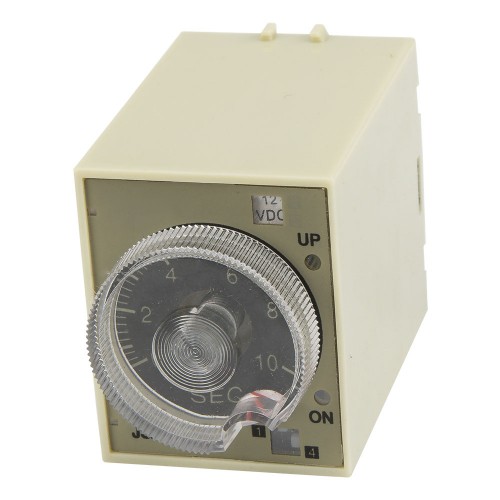

ST3PC-B AC/DC 12V 1s/10s/60s/6min on delay time SPDT and instantaneous SPDT time relay
Product features
Mouse over to zoom in
ST3PC-B AC/DC 12V 1s/10s/60s/6min on delay time SPDT and instantaneous SPDT time relay
Price: US $3.05 / piece
Model number: ST3PC-B-12V
Product name: Time relay
Deliver to:
Shipping:
US $7.85via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $10.9
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Contact form and delay time
| Model number | Contact form | Delay time | Online store: |
| ST3PC-A | On delay SPDT and instantaneous SPDT | 0.5s/5s/30s/3min | US $3.05 - 3.23/ pieceOrder (5) |
| ST3PC-B | On delay SPDT and instantaneous SPDT | 1s/10s/60s/6min | Visiting... |
| ST3PC-C | On delay SPDT and instantaneous SPDT | 5s/50s/5min/30min | US $3.05/ pieceOrder (4) |
| ST3PC-D | On delay SPDT and instantaneous SPDT | 10s/100s/10min/60min | US $3.05/ pieceOrder (4) |
| ST3PC-E | On delay SPDT and instantaneous SPDT | 60s/10min/60min/6h | US $3.05/ pieceOrder (4) |
| ST3PC-F | On delay SPDT and instantaneous SPDT | 2min/20min/2h/12h | US $3.05/ pieceOrder (4) |
| ST3PC-G | On delay SPDT and instantaneous SPDT | 4min/40min/4h/24h | US $3.05/ pieceOrder (4) |
▇ ST3PC-B time relay model number legend
ST3PC-B
Parent Model Number
▇ General
| Model number | ST3PC series |
| Supply voltage | 12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc |
| Tolerance | -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption | 3W max |
| Setting method | Knob |
| Indication method | LED |
| External dimensions | 50x40x57.5 mm |
| Perforate dimensions | 50.5 10x40.5 10 mm |
| Contact rating | 3A@250Vac, 5A@28Vdc |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | 8 pins |
| Mounting | Panel, din rail |
| Matched socket | PF083A, PF085A, US-08 |
| Matched mounting accessories | FTRA01 mounting fastener, FTRA02 mounting panel |
| Mechanical life | 1x106 |
| Electrical life | 1x105 |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 95% RH max, non-condensing |
| Alias name | ST3PC series timer |
▇ ST3PC-B time relay submodels
Packaging Details
Product quantity: 1pc
Package weight: 0.15kg
Package size: 10 x 10 x 7 cm
