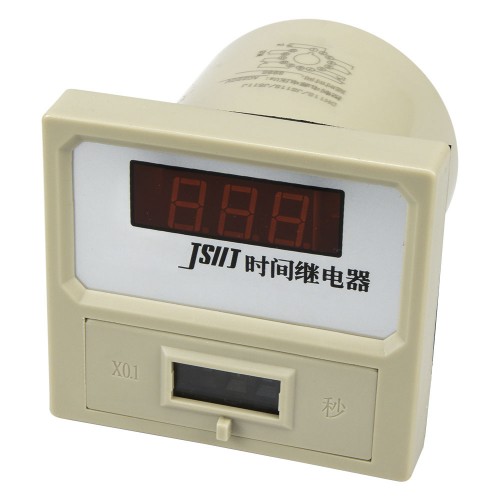

JS11J AC 220V 999s on delay DPDT and instantaneous SPDT welding terminals time relay
Product features
Mouse over to zoom in
JS11J AC 220V 999s on delay DPDT and instantaneous SPDT welding terminals time relay
Price: US $9.13 / piece
Model number: JS11J-220VAC-999S
Product name: Time relay
Deliver to:
Shipping:
US $20.85via
Estimated Delivery Time: 9-17 days
DDP service: All applicable import duties and taxes are included in total price.
Total price:US $29.98
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Contact form and delay time
| Model number | Contact form | Delay time | Remark | Online store: |
| JS11J | On-delay DPDT and instantaneous SPDT | 99.9s/999s/999min | Welding terminals | Visiting... |
| JS11J-10H | On-delay DPDT and instantaneous SPDT | 99.9s/999s/999min | Screw terminals | US $10.06/ pieceOrder (6) |
▇ JS11J time relay model number legend
JS11J
Parent Model Number
▇ General
| Model number | JS11J |
| Supply voltage | 12, 24, 36, 48, 110, 220 or 380 Vac, 50/60 Hz; 12 or 24 Vdc |
| Tolerance | -15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
| Power consumption | 3W max |
| Setting method | Dial switch |
| Indication method | 8-segment 3-digital display |
| External dimensions | 122x97x97 mm |
| Perforate dimensions | 95 10x95 10 mm |
| Contact rating | 5A@250Vac, 5A@28Vdc |
| Repeat accuracy | ±0.3%, ±0.05 sec |
| Setting error | ±0.5%, ±0.05 sec |
| Termination | Welding; screws |
| Mounting | Panel |
| Mechanical life | 1x106 |
| Electrical life | 1x105 |
| Operating temperature | -5 to 40 ℃ |
| Operating humidity | 95% RH max, non-condensing |
| Alias name | JS11J digital timer |
▇ JS11J time relay submodels
| No | Model Number | Supply Voltage | Delay Time | MOQ | Unit Price | Related Product |
| 1 | JS11J-220VAC-99.9S | 220VAC | 99.9s | 1 | US $9.13 | Order |
| 2 | JS11J-220VAC-999S | 220VAC | 999s | 1 | US $9.13 | Visiting... |
| 3 | JS11J-220VAC-999M | 220VAC | 999min | 1 | US $9.13 | Order |
| 4 | JS11J-380VAC-99.9S | 380VAC | 99.9s | 1 | US $9.13 | Order |
| 5 | JS11J-380VAC-999S | 380VAC | 999s | 1 | US $9.13 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.6kg
Package size: 21 x 11 x 14 cm
