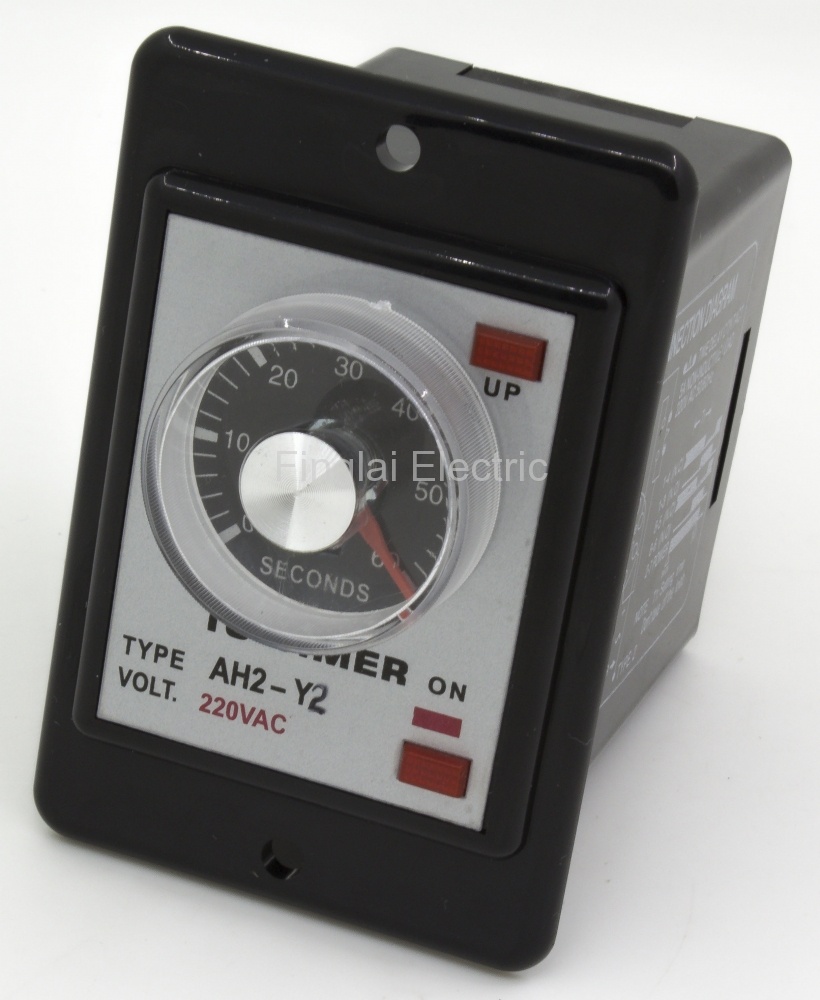

AH2-Y2 AC 220V 60s on delay DPDT time relay
Product features
Mouse over to zoom in
AH2-Y2 AC 220V 60s on delay DPDT time relay
Price: US $3.94 / piece
Model number: AH2-Y2-220VAC-60S
Product name: Time relay
Deliver to:
Shipping:
US $9.56via
Estimated Delivery Time: 9-15 days
Total price:US $13.5
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Contact form and delay time
Model number | Contact form | Delay time | Online store:
|
AH2-N | On-delay SPDT instantaneous SPDT | 1s/3s/6s/10s/30s/60s/3m/6m/30m/60m | US $3.94/ pieceOrder |
AH2-Y | On-delay SPDT instantaneous SPDT | 1s/3s/6s/10s/30s/60s/3m/6m/30m/60m | US $3.94/ pieceOrder (16) |
AH2-Y2 | On-delay DPDT | 1s/3s/6s/10s/30s/60s/3m/6m/30m/60m | Visiting... |
▇ AH2-Y2 time relay model number legend
▇ General
Model number |
AH2 |
Supply voltage |
110, 220 or 380 Vac, 50/60 Hz; 12, 24 Vac/dc |
Tolerance |
-15% ... 10% at AC and -10% ... 10% at DC of rated supply voltage |
Power consumption |
3W max |
Setting method |
Knob |
Indication method |
LED |
External dimensions |
93x58x88 mm |
Perforate dimensions |
61 10x50 10 mm |
Contact rating |
3A@250Vac, 5A@28Vdc |
Repeat accuracy |
±0.3%, ±0.05 sec |
Setting error |
±0.5%, ±0.05 sec |
Termination |
8 pins |
Mechanical life |
1x106 |
Electrical life |
1x105 |
Operating temperature |
0 to 50 ℃ (32 to 122 ℉) |
Operating humidity |
95% RH max, non-condensing |
Alias name |
AH2 timer |
▇ AH2-Y2 time relay child models
No |
Model Number |
Supply Voltage |
Delay Time |
MOQ |
Unit Price |
Related Product |
1 |
AH2-Y2-220VAC-30S |
220VAC |
30s |
1 |
US $3.94 |
Order |
2 |
AH2-Y2-220VAC-60S |
220VAC |
60s |
1 |
US $3.94 |
Visiting... |
3 |
AH2-Y2-220VAC-30M |
220VAC |
30min |
1 |
US $3.94 |
Order |
4 |
AH2-Y2-220VAC-60M |
220VAC |
60min |
1 |
US $3.94 |
Order |
5 |
AH2-Y2-220VAC-6S |
220VAC |
6s |
1 |
US $3.94 |
Order Unfold |
6 |
AH2-Y2-110VAC-30S |
110VAC |
30s |
1 |
US $3.94 |
Order |
7 |
AH2-Y2-110VAC-60S |
110VAC |
60s |
1 |
US $3.94 |
Order |
8 |
AH2-Y2-110VAC-30M |
110VAC |
30min |
1 |
US $3.94 |
Order |
9 |
AH2-Y2-110VAC-60M |
110VAC |
60min |
1 |
US $3.94 |
Order |
10 |
AH2-Y2-24VDC-30S |
24VDC |
30s |
1 |
US $3.94 |
Order |
11 |
AH2-Y2-24VDC-60S |
24VDC |
60s |
1 |
US $3.94 |
Order |
12 |
AH2-Y2-24VDC-30M |
24VDC |
30min |
1 |
US $3.94 |
Order |
13 |
AH2-Y2-24VDC-60M |
24VDC |
60min |
1 |
US $3.94 |
Order |
14 |
AH2-Y2-12VDC-30S |
12VDC |
30s |
1 |
US $3.94 |
Order |
15 |
AH2-Y2-12VDC-60S |
12VDC |
60s |
1 |
US $3.94 |
Order |
16 |
AH2-Y2-12VDC-30M |
12VDC |
30min |
1 |
US $3.94 |
Order |
17 |
AH2-Y2-12VDC-60M |
12VDC |
60min |
1 |
US $3.94 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.3kg
Package size: 14.5 x 8.5 x 10.5 cm
