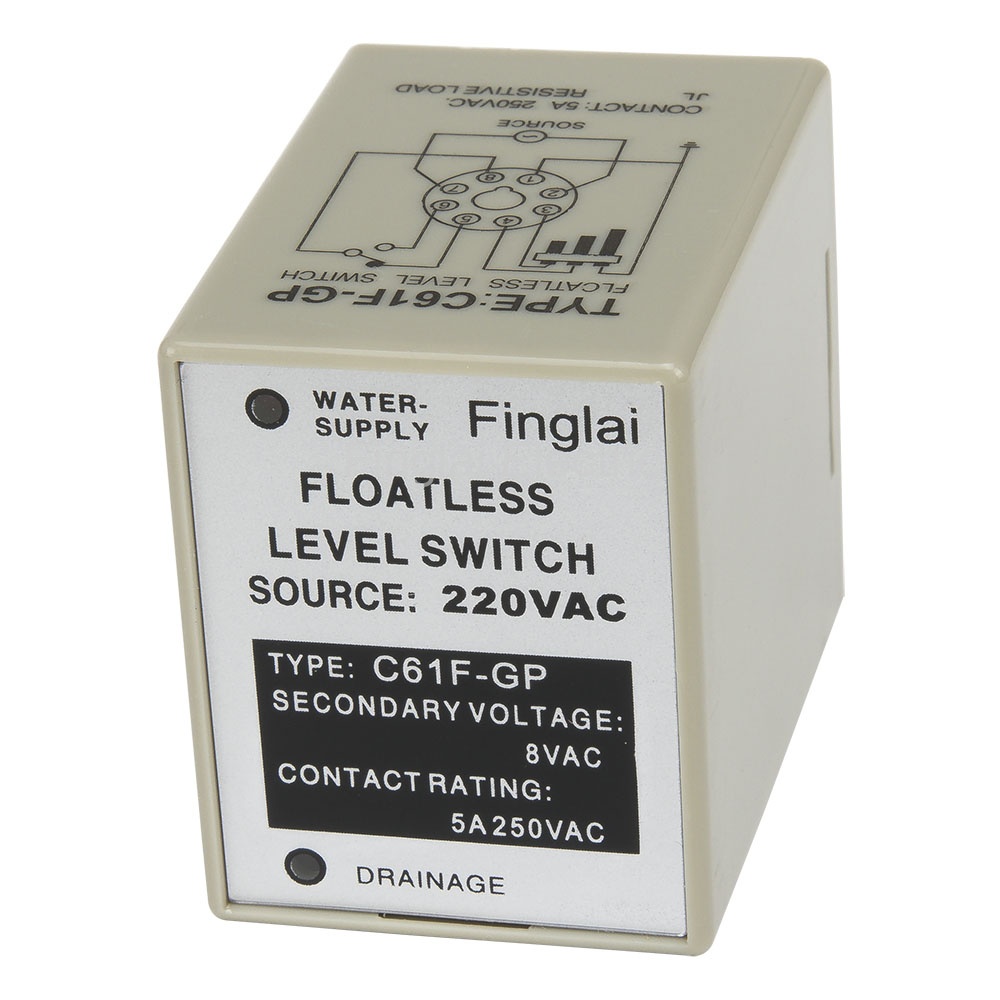

C61F-GP series floatless level relays
Main child models
Mouse over to zoom in
Price: US $2.11 / piece
Model number: C61F-GP-N220VAC
Product name: Floatless level relay
Product description
▇ Model number and sensing mode
| Model number | Sensing mode | Online store: |
| C61F-GP | General | Visiting... |
▇ C61F-GP floatless level relay model number legend
C61F-GP
Parent Model Number
▇ General
| Model number | C61F-GP |
| Rated supply voltage | 110, 220Vac, 50/60Hz; 12Vdc |
| Operational voltage range | 85% to 110% of rated voltage |
| Interelectrode voltage | 8Vac |
| Interelectrode operate resistance | 0 to approx. 4kΩ |
| Interelectrode release resistance | Approx. 15 k to ∞Ω |
| Response time | Operate: 80 ms max; Release: 160 ms max. |
| Contact rating | 5A at 250Vac |
| Matched socket | PF083A |
| Matched probe | FFRA01 |
| Life expectancy | Mechanical—5x106; Electrical—1x105 |
| Insulation resistance | 100 MΩ min. (at 500 Vdc) |
| Dielectric strength | 1500Vac, 50/60 Hz for 1 min |
| Power consumption | Approx. 3.2 VA max |
| Cable length | 1Km max |
| External dimensions (HxWxD) | 61x49x70mm |
| Operational Temperature | -10 to +55°C |
| Operational humidity | 85% RH max |
| Alias name | C61F-GP floatless level controller |
▇ C61F-GP floatless level relay child models
| No | Model Number | Socket | Supply Voltage | MOQ | Unit Price |
| 1 | C61F-GP-N220VAC | Without socket | 220VAC | 1 | US $2.11 |
| 2 | C61F-GP-N110VAC | Without socket | 110VAC | 1 | US $2.11 |
| 3 | C61F-GP-N12VDC | Without socket | 12VDC | 1 | US $2.11 |
| 4 | C61F-GP-S220VAC | With socket | 220VAC | 1 | US $2.3 |
| 5 | C61F-GP-S110VAC | With socket | 110VAC | 1 | US $2.3 |
| 6 | C61F-GP-S12VDC | With socket | 12VDC | 1 | US $2.3 |
| 7 | C61F-GP-P220VAC | Without socket and case | 220VAC | 3 | US $2.03 |
