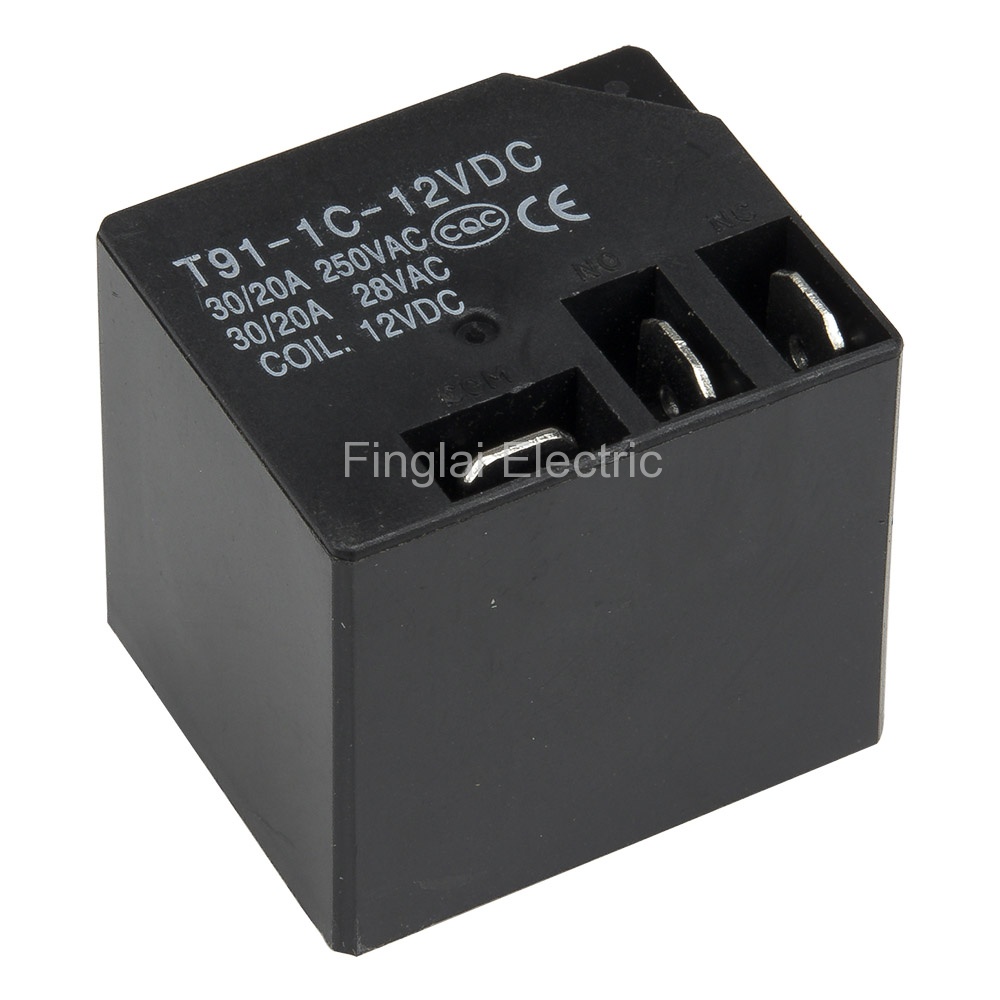

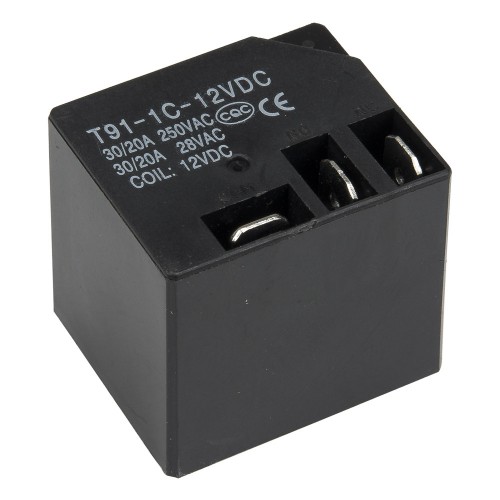

T91 series 5pins SPDT PCB relays T91-C JQX-16F 12VDC electromagnetic relays
Main child models
Price: US $0.64 / piece
Model number: T91-1C-12VDC
Product name: Electromagnetic relay
Product description
▇ Model number and type
| Model number | Same model | Type | Remark | Online store: |
| T91-1C | JQX-16F | Standard | SPDT | Visiting... |
▇ T91-1C electromagnetic relay model number legend
T91-1C
Parent Model Number
▇ General
| Model number | T91 |
| Contact material | Silver alloy |
| Contact form | SPST-NO, SPST-NC, SPDT |
| Contact rating | 30A @28Vdc/240Vac |
| Rated coil power | 0.9Wdc |
| Rated coil voltage | DC: 3, 5, 6, 9, 12, 18,24, 48V |
| Dielectric strength | 2,500Vac, 50/60 Hz for 1 min between coil and contacts 1,500Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max |
| Drop-out voltage | DC types: 10% min |
| Operation voltage | 110% max |
| Contact resistance | 50mΩ max |
| Mounting | Weld on PCB |
| Mechanical life | 1x107 operations min |
| Electrical life | 1x105 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -40 to 70 ℃ (-22 to 131 ℉) |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 32.5x27.5x27.5 mm |
| Alias name | T91 PCB relay, electromagnetic relay |
▇ T91-1C electromagnetic relay child models
| No | Model Number | Coil Voltage | MOQ | Unit Price |
| 1 | T91-1C-12VDC | 12VDC | 10 | US $0.64 |
| 2 | T91-1C-24VDC | 24VDC | 10 | US $0.64 |

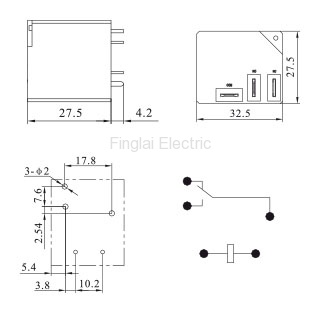

T91 PCB relay drawing
