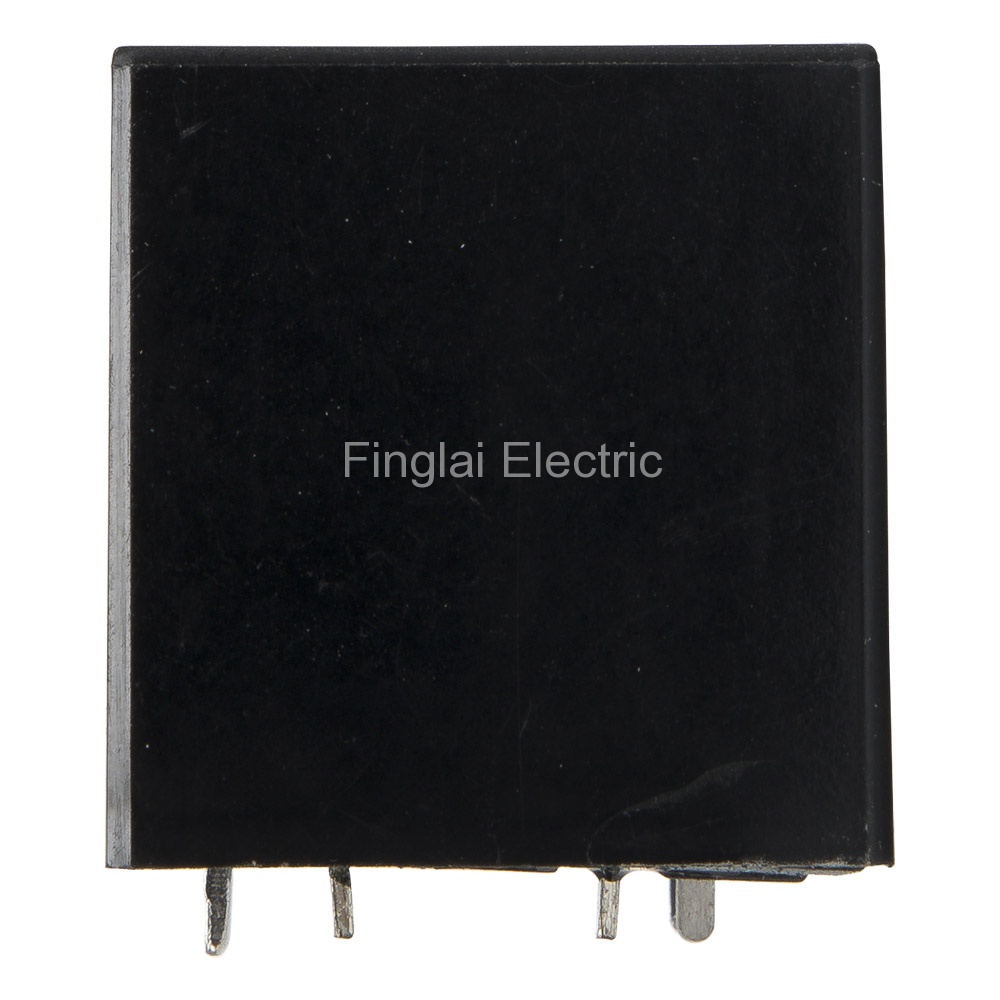

T91 DC 24V 5pins SPDT PCB relay T91-C JQX-16F 12VDC electromagnetic relay
Product features
Mouse over to zoom in
T91 DC 24V 5pins SPDT PCB relay T91-C JQX-16F 12VDC electromagnetic relay
Price: US $0.64 / piece
Model number: T91-1C-24VDC
Product name: Electromagnetic relay
Deliver to:
Shipping:
US $12.27via
Estimated Delivery Time: 9-15 days
Total price:US $18.67
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and type
| Model number | Same model | Type | Remark | Online store:
|
| T91-1C | JQX-16F | Standard | SPDT | Visiting... |
▇ T91-1C electromagnetic relay model number legend
▇ General
| Model number |
T91 |
| Contact material |
Silver alloy |
| Contact form |
SPST-NO, SPST-NC, SPDT |
| Contact rating |
30A @28Vdc/240Vac |
| Rated coil power |
0.9Wdc |
| Rated coil voltage |
DC: 3, 5, 6, 9, 12, 18,24, 48V |
| Dielectric strength |
2,500Vac, 50/60 Hz for 1 min between coil and contacts
1,500Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage |
DC types: 75% max |
| Drop-out voltage |
DC types: 10% min |
| Operation voltage |
110% max |
| Contact resistance |
50mΩ max |
| Mounting |
Weld on PCB |
| Mechanical life |
1x107 operations min |
| Electrical life |
1x105 operations min |
| Insulation resistance |
100MΩ min. at 500 VDC |
| Operating temperature |
-40 to 70 ℃ (-22 to 131 ℉) |
| Operating humidity |
35 to 85% RH, no condensation |
| External dimensions |
32.5x27.5x27.5 mm |
| Alias name |
T91 PCB relay, electromagnetic relay |
▇ T91-1C electromagnetic relay child models
| No |
Model Number |
Coil Voltage |
MOQ |
Unit Price |
Related Product |
| 1 |
T91-1C-12VDC |
12VDC |
10 |
US $0.64 |
Order |
| 2 |
T91-1C-24VDC |
24VDC |
10 |
US $0.64 |
Visiting... |
T91 PCB relay drawing
Packaging Details
Product quantity: 10pcs
Package weight: 0.45kg
Package size: 13 x 8 x 9 cm
