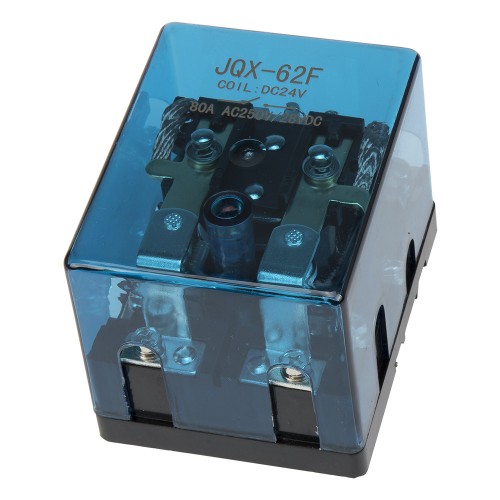

JQX-62F-2Z DC 24V 80A copper high power relay
Product features
Mouse over to zoom in
JQX-62F-2Z DC 24V 80A copper high power relay
Price: US $4.09 / piece
Model number: JQX-62F-2Z-U24VDC80A
Product name: Power relay
Contact current:
80A
US $4.09120A
Deliver to:
Shipping:
US $11.37via
Estimated Delivery Time: 9-15 days
Total price:US $15.46
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and type
▇ JQX-62F-2Z power relay model number legend
▇ General
| Model number |
JQX-62F series |
| Contact material |
Silver alloy; Copper |
| Contact form |
SPDT; DPDT |
| Contact rating |
80A@28Vdc/250Vac; 120A@28Vdc/250Vac |
| Rated coil voltage |
AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength |
2,500Vac, 50/60 Hz for 1 min between coil and contacts
1,500Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage |
DC types: 75% max; AC types: 80% max |
| Drop-out voltage |
DC types: 10% min; AC types: 30% min |
| Operation voltage |
110% max |
| Contact resistance |
100mΩ max |
| Mounting |
Screws |
| Mechanical life |
1x105 operations min |
| Electrical life |
5x104 operations min |
| Insulation resistance |
100MΩ min. at 500 VDC |
| Operating temperature |
-25 to 55 ℃ (-13 to 131 ℉) |
| Operating humidity |
35 to 85% RH, no condensation |
| External dimensions |
1Z: 73*67.5*59mm; 2Z: 88.5*67.5*64.5mm |
| Alias name |
JQX-62F series power relay, electric relay, electrical relay |
▇ JQX-62F-2Z power relay child models
| No |
Model Number |
Contact Material |
Rated Coil Voltage |
Contact Current |
MOQ |
Unit Price |
Related Product |
| 1 |
JQX-62F-2Z-H220VAC80A |
Silver alloy |
220VAC |
80A |
1 |
US $6.34 |
Order |
| 2 |
JQX-62F-2Z-H24VDC80A |
Silver alloy |
24VDC |
80A |
1 |
US $6.34 |
Order |
| 3 |
JQX-62F-2Z-H12VDC80A |
Silver alloy |
12VDC |
80A |
1 |
US $6.34 |
Order |
| 4 |
JQX-62F-2Z-U220VAC80A |
Copper |
220VAC |
80A |
1 |
US $4.09 |
Order |
| 5 |
JQX-62F-2Z-U24VDC80A |
Copper |
24VDC |
80A |
1 |
US $4.09 |
Visiting... Unfold |
| 6 |
JQX-62F-2Z-U12VDC80A |
Copper |
12VDC |
80A |
1 |
US $4.09 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 13 x 8 x 9 cm
