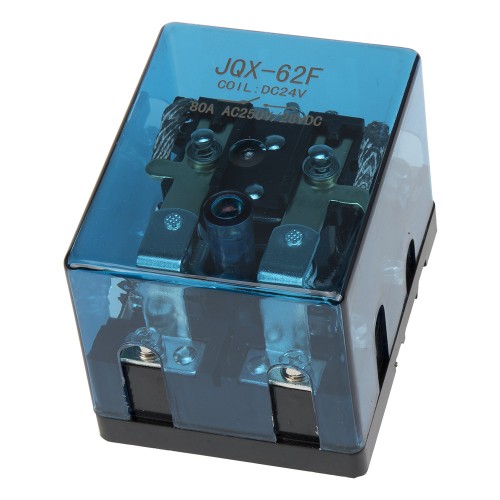

JQX-62F-2Z DC 24V 80A silver alloy contact high power relay
Product features
Mouse over to zoom in
JQX-62F-2Z DC 24V 80A silver alloy contact high power relay
Price: US $11.28 / piece
Model number: JQX-62F-2Z-H24VDC80A
Product name: Power relay
Deliver to:
Shipping:
US $16.6via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $27.88
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and type
| Model number | Type | Online store: |
| JQX-62F-1Z | SPDT | US $3.64 - 12.89/ pieceOrder (12) |
| JQX-62F-2Z | DPDT | Visiting... |
▇ JQX-62F-2Z power relay model number legend
JQX-62F-2Z
Parent Model Number
▇ General
| Model number | JQX-62F series |
| Contact material | Silver alloy; Copper |
| Contact form | SPDT; DPDT |
| Contact rating | 80A@28Vdc/250Vac; 120A@28Vdc/250Vac |
| Rated coil voltage | AC/DC: 6, 12, 24, 36, 48, 110, 220V; AC380V |
| Dielectric strength | 2,500Vac, 50/60 Hz for 1 min between coil and contacts 1,500Vac, 50/60 Hz for 1 min between opening contacts |
| Pick-up voltage | DC types: 75% max; AC types: 80% max |
| Drop-out voltage | DC types: 10% min; AC types: 30% min |
| Operation voltage | 110% max |
| Contact resistance | 100mΩ max |
| Mounting | Screws |
| Mechanical life | 1x105 operations min |
| Electrical life | 5x104 operations min |
| Insulation resistance | 100MΩ min. at 500 VDC |
| Operating temperature | -25 to 55 ℃ (-13 to 131 ℉) |
| Operating humidity | 35 to 85% RH, no condensation |
| External dimensions | 1Z: 73*67.5*59mm; 2Z: 88.5*67.5*64.5mm |
| PCS/Box | 4 |
| Alias name | JQX-62F series power relay, electric relay, electrical relay |
▇ JQX-62F-2Z power relay submodels
| No | Model Number | Contact Material | Rated Coil Voltage | Contact Current | MOQ | Unit Price | Related Product |
| 1 | JQX-62F-2Z-H220VAC80A | Silver alloy | 220VAC | 80A | 1 | US $11.28 | Order |
| 2 | JQX-62F-2Z-H24VDC80A | Silver alloy | 24VDC | 80A | 1 | US $11.28 | Visiting... |
| 3 | JQX-62F-2Z-H12VDC80A | Silver alloy | 12VDC | 80A | 1 | US $11.28 | Order |
| 4 | JQX-62F-2Z-U220VAC80A | Copper | 220VAC | 80A | 1 | US $4.09 | Order |
| 5 | JQX-62F-2Z-U24VDC80A | Copper | 24VDC | 80A | 1 | US $4.09 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.5kg
Package size: 13 x 8 x 9 cm
