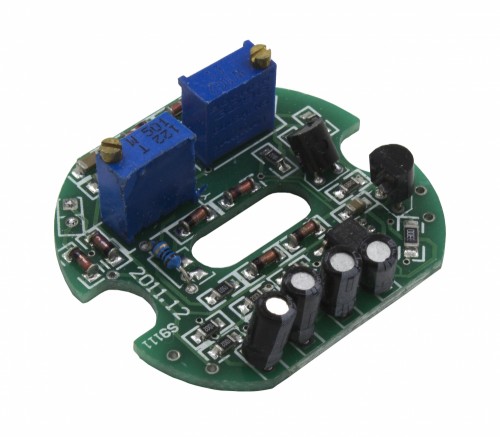

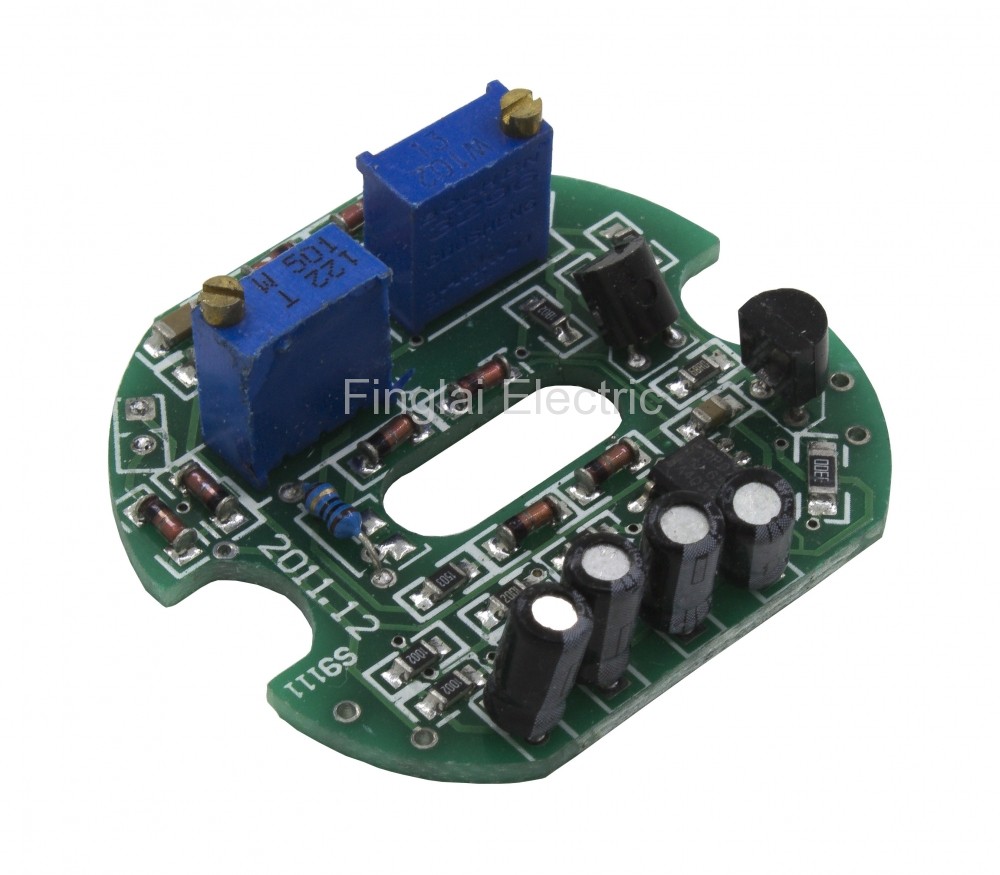

FTT02-C20 K input 4-20mA output 0-400℃ temperature transmitter without case
Product features
Mouse over to zoom in
FTT02-C20 K input 4-20mA output 0-400℃ temperature transmitter without case
Price: US $5.32 / piece
Model number: FTT02-C20-0T400N
Product name: Temperature transmitter
Measured range:
0-300℃US $6.440-400℃
US $6.440-400℃ (Without case)
US $5.320-500℃
US $6.440-600℃
US $6.440-700℃0-800℃
US $6.440-900℃0-1000℃
US $6.440-1100℃
US $6.440-1200℃
US $6.440-1300℃
US $6.44
Deliver to:
Shipping:
US $5.94via
Sorry, this item is no longer available!
DDP service: All applicable import duties and taxes are included in total price.
Total price:US $11.26
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and parameters
| Model number | Same model | Input | Output | Online store: |
| FTT02-C20 | SBWR | K | 4-20mA | Visiting... |
| FTT02-V10 | SBWR | K | 0-10V | US $13.18 - 16.10/ pieceOrder (10) |
▇ FTT02-C20 temperature transmitter model number legend
FTT02-C20
Parent Model Number
▇ General
| Model number | FTT02 series |
| Output | 4-20mA, 0-10v |
| Measured range | 0-400℃, 0-600℃, 0-800℃, 0-1100℃, 0-1300℃ |
| Accuracy | Default is ±0.5%FS, can make ±0.2%FS |
| Power supply | 24VDC±10% |
| Power Supply Effect | 104ppm/VFS |
| Housing material | ABS/PA66 (UL94) |
| Weight | 45g |
| Operating temperature | -20-85 ℃ |
| Operating Humidity | 98% RH max, non-condensing |
| Working atmospheric pressure | 80-110kPa |
| Storage temperature | -40-105℃ |
| Instructions | FTT02-V10 connection: Thermocouple connect to S- S+, power supply connect to V- V+, output connect to V- and the groove terminal (DC24V word). |
| Alias name | FTT02 series temperature amplifier templifier |
▇ FTT02-C20 temperature transmitter submodels
| No | Model Number | Measured Range | MOQ | Unit Price | Related Product |
| 1 | FTT02-C20-0T300 | 0-300℃ | 1 | US $6.44 | Order |
| 2 | FTT02-C20-0T400 | 0-400℃ | 1 | US $6.44 | Order |
| 3 | FTT02-C20-0T400N | 0-400℃ (Without case) | 1 | US $5.32 | Visiting... |
| 4 | FTT02-C20-0T500 | 0-500℃ | 1 | US $6.44 | Order |
| 5 | FTT02-C20-0T600 | 0-600℃ | 1 | US $6.44 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
