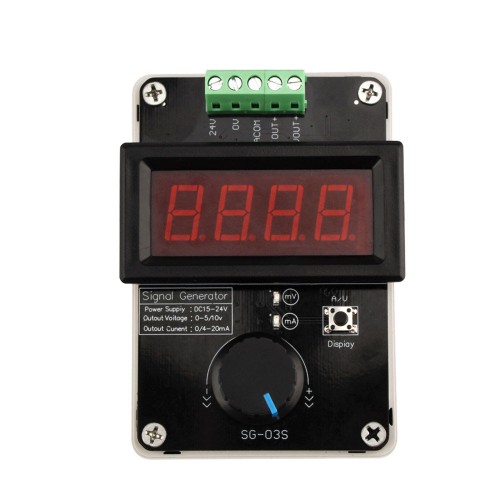

SG-03S DC 24V input 0-5/10V 0/4-20mA signal generator
155 sold
Product features
Mouse over to zoom in
SG-03S DC 24V input 0-5/10V 0/4-20mA signal generator
Price: US $15 / piece
Product name: Signal generator
Deliver to:
Shipping:
US $62.4via
Estimated Delivery Time: 9-17 days
Total price:US $212.4
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Online store:
|
| SG-03S | Visiting... |
▇ General
| Supply Voltage |
24 VDC |
| Voltage Output |
0–10 V (Adjustable); Drive Current < 20 mA |
| Current Output |
0–22 mA (Adjustable); Load Sampling Resistor < 500 Ω |
| Adjustment Resolution |
0.1 V / 0.01 V or 0.1 mA / 0.01 mA |
| Linearity |
Better than 0.2% |
| Indication method |
4-Digit Digital Tube |
| Setting method |
Rotary Encoder and Buttons |
| Operating temperature |
0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity |
85% RH max, non-condensing |
Packaging Details
Product quantity: 10pcs
Package weight: 2kg
Package size: 21 x 11 x 14 cm
