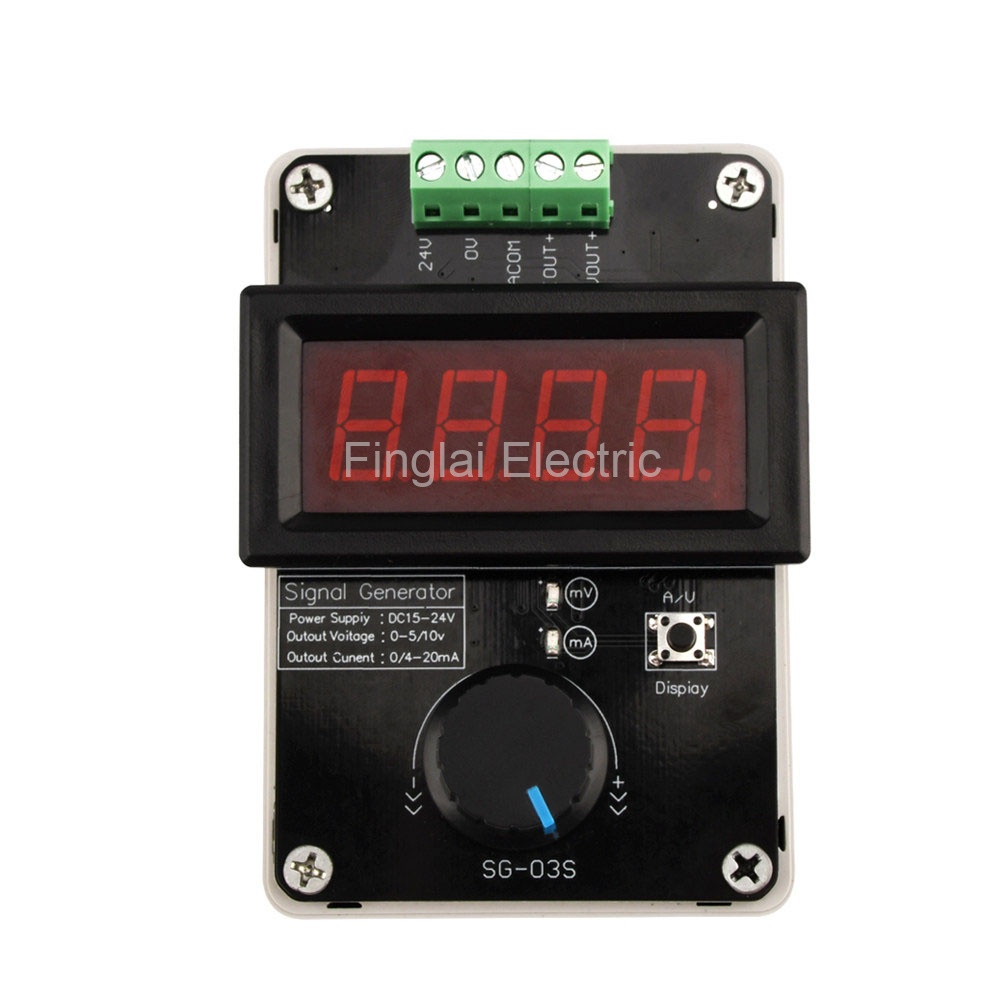

SG-03 series signal generator
▇ Model number and parameters
| Model number | Online store: |
| SG-03S | US $15.99/ pieceOrder |
▇ General
| Supply Voltage | 24 VDC |
| Voltage Output | 0–10 V (Adjustable); Drive Current < 20 mA |
| Current Output | 0–22 mA (Adjustable); Load Sampling Resistor < 500 Ω |
| Adjustment Resolution | 0.1 V / 0.01 V or 0.1 mA / 0.01 mA |
| Linearity | Better than 0.2% |
| Indication method | 4-Digit Digital Tube |
| Setting method | Rotary Encoder and Buttons |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 85% RH max, non-condensing |
