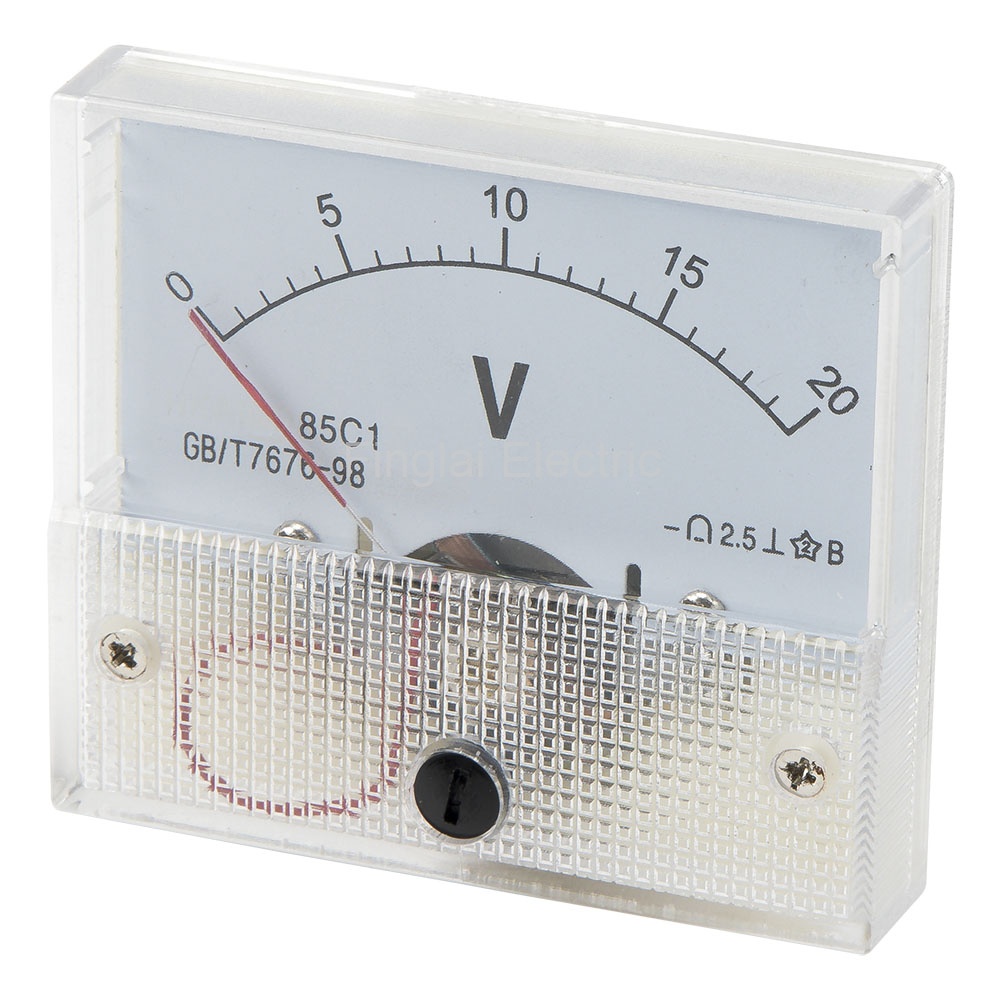

85C1-V20 64*56mm 20V pointer DC analog voltmeter 85C1 series analog volt meter 64x56 mm size
Product features
Mouse over to zoom in
85C1-V20 64*56mm 20V pointer DC analog voltmeter 85C1 series analog volt meter 64x56 mm size
Price: US $1.98 / piece
Model number: 85C1-V20
Product name: Pointer voltmeter
Deliver to:
Shipping:
US $8.43via
Estimated Delivery Time: 9-17 days
Total price:US $10.41
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store:
|
| 85C1-UA | DC Ammeter (μΑ) | Connect directly: 50, 100, 150, 200, 300, 500μΑ | US $2.41/ pieceOrder (5) |
| 85C1-MA | DC Ammeter (mA) | Connect directly: 1, 2, 3, 5, 10, 15, 20, 30, 50, 75, 100, 150, 200, 300, 500mA | US $1.96/ pieceOrder (8) |
| 85C1-A | DC Ammeter (A) | Connect directly: 1, 2, 3, 5, 7.5, 10A, 20A
Need shunt：15, 20, 30, 50, 75, 100, 150, 200, 300, 1000, 1500A | US $1.96 - 2.29/ pieceOrder (15) |
| 85C1-V | DC Voltmeter | 5, 10, 15, 20, 30, 50, 75, 100, 150, 250, 300, 450, 500, 600, 750, 1000V | Visiting... |
| 85C1-HZ | Frequency meter | 50Hz: 10V, 20mA, 4-20mA | |
▇ 85C1-V pointer voltmeter model number legend
▇ General
| Model number |
85C1 series |
| Accuracy level |
1.5/2.5 level |
| External dimensions |
64x56x60 mm |
| Perforation dimensions |
49 10 |
| Matched shunt |
FL-2 |
| Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength |
2KV 50Hz for 1min |
| Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position |
Vertical |
| Operating temperature |
-20 to 50 ℃ |
| Operating humidity |
85% RH max, non-condensing |
▇ 85C1-V pointer voltmeter child models
| No |
Model Number |
Measured Range |
MOQ |
Unit Price |
Related Product |
| 1 |
85C1-V5 |
5V |
1 |
US $2.18 |
Order |
| 2 |
85C1-V10 |
10V |
1 |
US $1.98 |
Order |
| 3 |
85C1-V15 |
15V |
1 |
US $1.98 |
Order |
| 4 |
85C1-V20 |
20V |
1 |
US $1.98 |
Visiting... |
| 5 |
85C1-V30 |
30V |
1 |
US $1.98 |
Order Unfold |
| 6 |
85C1-V50 |
50V |
1 |
US $1.98 |
Order |
| 7 |
85C1-V75 |
75V |
1 |
US $1.98 |
Order |
| 8 |
85C1-V100 |
100V |
1 |
US $1.98 |
Order |
| 9 |
85C1-V150 |
150V |
1 |
US $1.98 |
Order |
| 10 |
85C1-V250 |
250V |
1 |
US $1.98 |
Order |
| 11 |
85C1-V300 |
300V |
1 |
US $2.07 |
Order |
| 12 |
85C1-V450 |
450V |
1 |
US $2.07 |
Order |
| 13 |
85C1-V500 |
500V |
1 |
US $2.29 |
Order |
| 14 |
85C1-V600 |
600V |
1 |
US $4.2 |
Order |
| 15 |
85C1-V750 |
750V |
1 |
US $4.2 |
Order |
| 16 |
85C1-V1000 |
1000V |
1 |
US $4.2 |
Order |
85C1 series DC ammeter, voltmeter, frequency meter drawing
Packaging Details
Product quantity: 1pc
Package weight: 0.14kg
Package size: 10 x 10 x 7 cm
