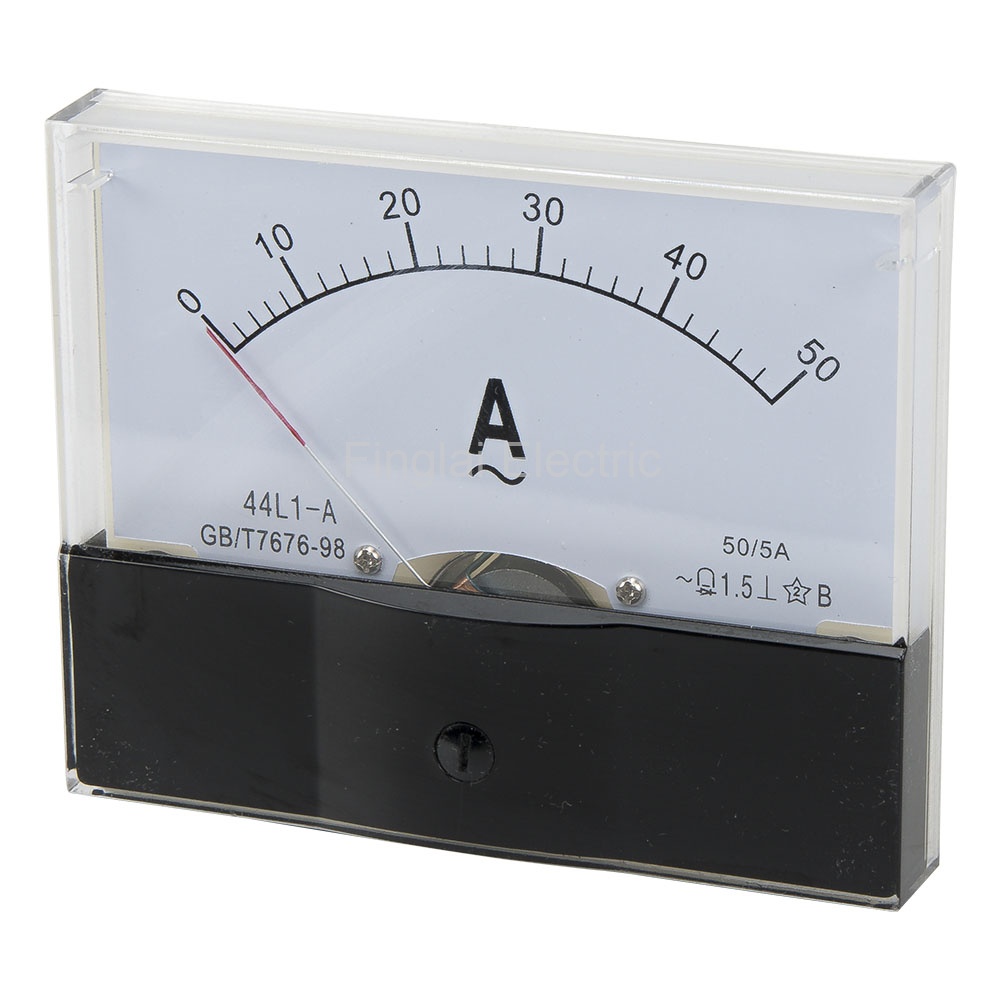

44L1-A50/5 100*80mm current transformer type 50/5A pointer AC ammeter 6L2 series analog AMP meter 100x80 mm size
Product features
Mouse over to zoom in
44L1-A50/5 100*80mm current transformer type 50/5A pointer AC ammeter 6L2 series analog AMP meter 100x80 mm size
Price: US $3.07 / piece
Model number: 44L1-A50/5
Product name: Pointer ammeter
Deliver to:
Shipping:
US $18.85via
Estimated Delivery Time: 9-17 days
Total price:US $21.92
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store:
|
| 44L1-A | AC Ammeter | Connect directly: 10mA, 20mA, 30mA, 50mA, 100mA, 200mA, 300mA, 500mA, 1A, 2A, 3A, 5A, 10A, 15A, 20A, 30A, 50A
Need current transformer：30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1K/5A, 1.5K/5A, 2K/5A | Visiting... |
| 44L1-V | AC Voltmeter | 3V, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 150V, 250V, 300V, 450V, 500V, 600V | US $3.07 - 7.56/ pieceOrder (9) |
▇ 44L1-A pointer ammeter model number legend
▇ General
| Model number |
44L1 |
| Accuracy level |
1.5 level and 2.5 level |
| External dimensions |
100x80 mm |
| Perforation dimensions |
70 10x60 10 mm |
| Matched current transformer |
BH-0.66-30 |
| Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength |
2KV 50Hz for 1min |
| Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position |
Vertical |
| Operating temperature |
-20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity |
80% RH max, non-condensing |
▇ 44L1-A pointer ammeter child models
| No |
Model Number |
Measured Range |
MOQ |
Unit Price |
Related Product |
| 1 |
44L1-A1 |
1A |
1 |
US $3.07 |
Order |
| 2 |
44L1-A2 |
2A |
1 |
US $3.07 |
Order |
| 3 |
44L1-A3 |
3A |
1 |
US $3.07 |
Order |
| 4 |
44L1-A5 |
5A |
1 |
US $3.07 |
Order |
| 5 |
44L1-A10 |
10A |
1 |
US $3.07 |
Order Unfold |
| 6 |
44L1-A15 |
15A |
1 |
US $3.07 |
Order |
| 7 |
44L1-A20 |
20A |
1 |
US $3.07 |
Order |
| 8 |
44L1-A30 |
30A |
1 |
US $3.07 |
Order |
| 9 |
44L1-A50 |
50A |
1 |
US $3.07 |
Order |
| 10 |
44L1-A30/5 |
30/5A |
1 |
US $3.07 |
Order |
| 11 |
44L1-A50/5 |
50/5A |
1 |
US $3.07 |
Visiting... |
| 12 |
44L1-A75/5 |
75/5A |
1 |
US $3.07 |
Order |
| 13 |
44L1-A100/5 |
100/5A |
1 |
US $3.07 |
Order |
| 14 |
44L1-A150/5 |
150/5A |
1 |
US $3.07 |
Order |
| 15 |
44L1-A200/5 |
200/5A |
1 |
US $3.07 |
Order |
| 16 |
44L1-A300/5 |
300/5A |
1 |
US $3.07 |
Order |
| 17 |
44L1-A400/5 |
400/5A |
1 |
US $3.07 |
Order |
| 18 |
44L1-A500/5 |
500/5A |
1 |
US $3.07 |
Order |
| 19 |
44L1-A600/5 |
600/5A |
1 |
US $3.07 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.5kg
Package size: 19 x 10 x 13 cm
