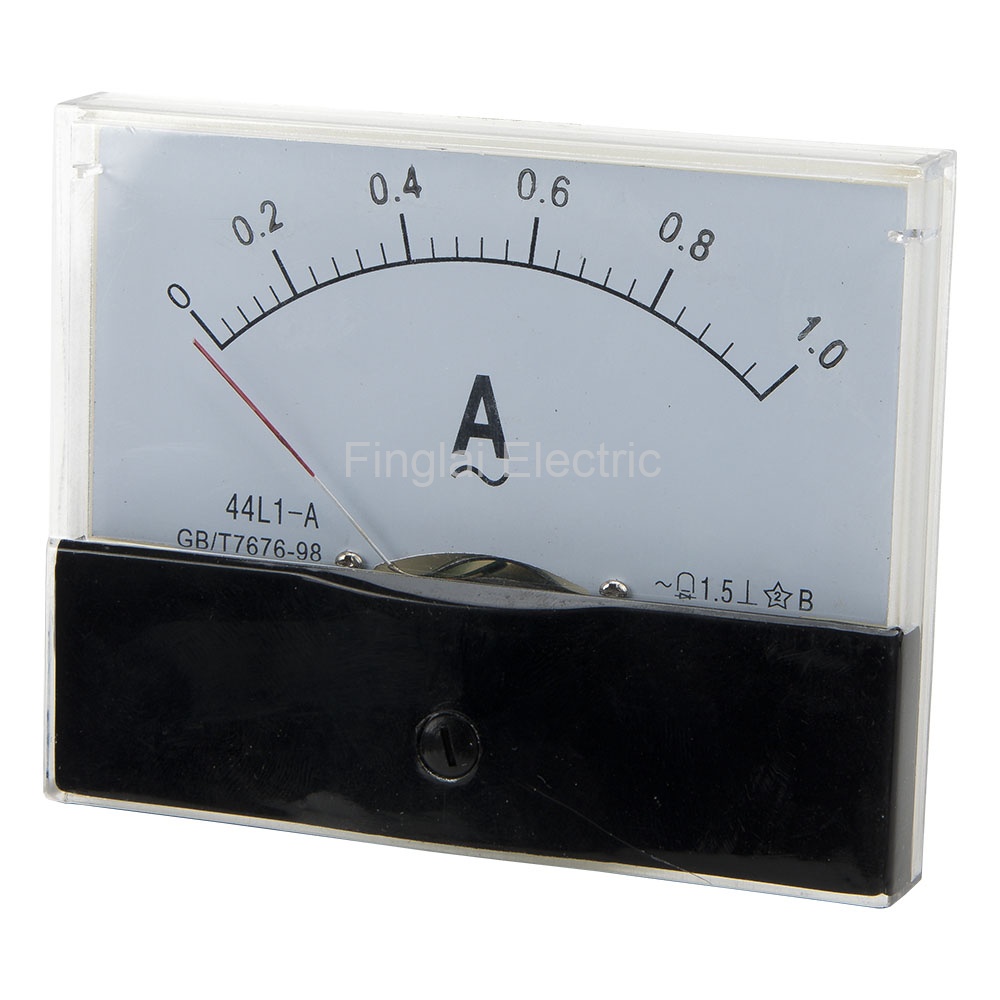

44L1-A series 100*80mm pointer AC analog ammeters
Main child models
Mouse over to zoom in
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store: |
| 44L1-A | AC Ammeter | Connect directly: 10mA, 20mA, 30mA, 50mA, 100mA, 200mA, 300mA, 500mA, 1A, 2A, 3A, 5A, 10A, 15A, 20A, 30A, 50A Need current transformer：30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 1K/5A, 1.5K/5A, 2K/5A | Visiting... |
| 44L1-V | AC Voltmeter | 3V, 5V, 10V, 15V, 20V, 30V, 50V, 75V, 100V, 150V, 250V, 300V, 450V, 500V, 600V | US $3.07 - 7.56/ pieceOrder (9) |
▇ 44L1-A pointer ammeter model number legend
44L1-A
Parent Model Number
▇ General
| Model number | 44L1 |
| Accuracy level | 1.5 level and 2.5 level |
| External dimensions | 100x80 mm |
| Perforation dimensions | 70 10x60 10 mm |
| Matched current transformer | BH-0.66-30 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength | 2KV 50Hz for 1min |
| Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position | Vertical |
| Operating temperature | -20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity | 80% RH max, non-condensing |
▇ 44L1-A pointer ammeter child models
| No | Model Number | Measured Range | MOQ | Unit Price |
| 1 | 44L1-A1 | 1A | 1 | US $3.07 |
| 2 | 44L1-A2 | 2A | 1 | US $3.07 |
| 3 | 44L1-A3 | 3A | 1 | US $3.07 |
| 4 | 44L1-A5 | 5A | 1 | US $3.07 |
| 5 | 44L1-A10 | 10A | 1 | US $3.07 |
| 6 | 44L1-A15 | 15A | 1 | US $3.07 |
| 7 | 44L1-A20 | 20A | 1 | US $3.07 |
| 8 | 44L1-A30 | 30A | 1 | US $3.07 |
| 9 | 44L1-A50 | 50A | 1 | US $3.07 |
| 10 | 44L1-A30/5 | 30/5A | 1 | US $3.07 |
| 11 | 44L1-A50/5 | 50/5A | 1 | US $3.07 |
| 12 | 44L1-A75/5 | 75/5A | 1 | US $3.07 |
| 13 | 44L1-A100/5 | 100/5A | 1 | US $3.07 |
| 14 | 44L1-A150/5 | 150/5A | 1 | US $3.07 |
| 15 | 44L1-A200/5 | 200/5A | 1 | US $3.07 |
| 16 | 44L1-A300/5 | 300/5A | 1 | US $3.07 |
| 17 | 44L1-A400/5 | 400/5A | 1 | US $3.07 |
| 18 | 44L1-A500/5 | 500/5A | 1 | US $3.07 |
| 19 | 44L1-A600/5 | 600/5A | 1 | US $3.07 |
