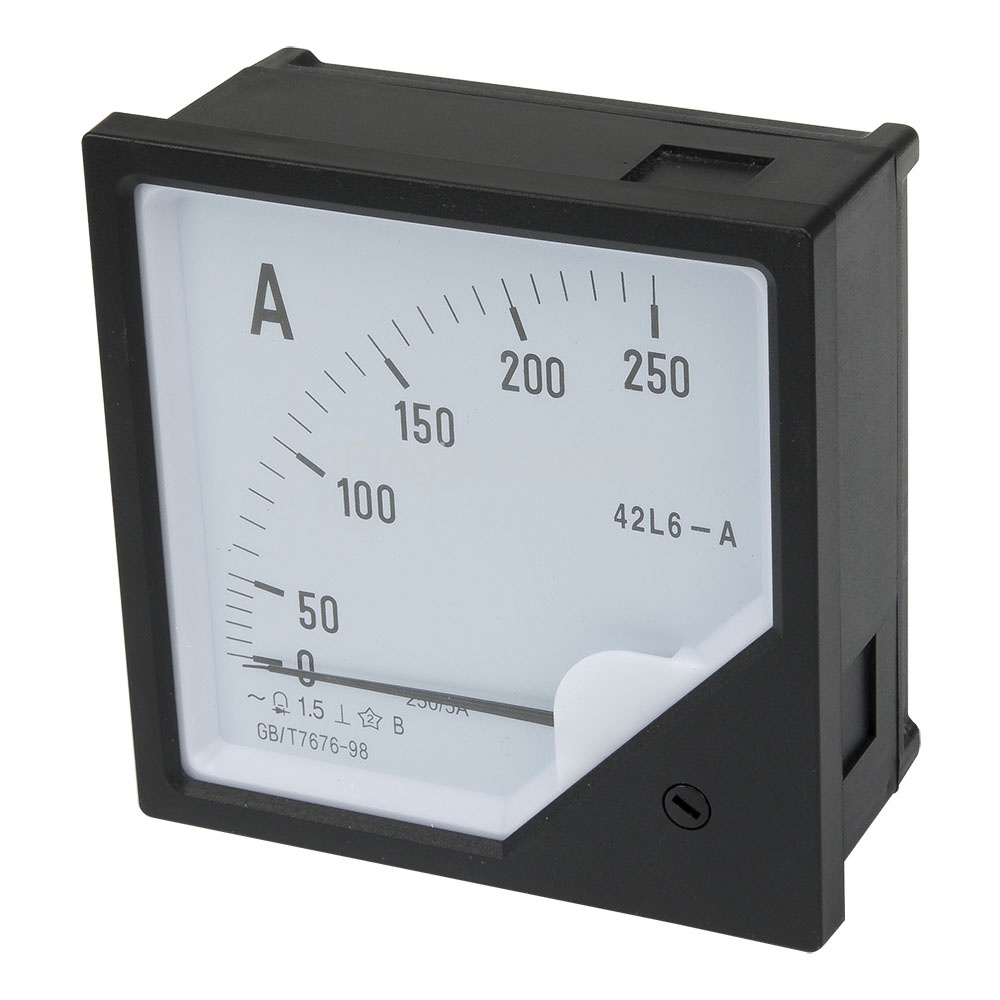

42L6-A250/5 120*120mm current transformer type 250/5A pointer AC ammeter 42L6 series analog AMP meter 120x120 mm size
Product features
Mouse over to zoom in
42L6-A250/5 120*120mm current transformer type 250/5A pointer AC ammeter 42L6 series analog AMP meter 120x120 mm size
Price: US $3.68 / piece
Model number: 42L6-A250/5
Product name: Pointer ammeter
Deliver to:
Shipping:
US $21.75via
Estimated Delivery Time: 9-17 days
Total price:US $25.43
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store:
|
| 42L6-A | AC Ammeter | 30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A | Visiting... |
| 42L6-V | AC Voltmeter | 250V, 450V, 500V, 7.2K/100V, 6K/100V, 10K/100V, 12K/100V | US $3.68/ pieceOrder (1) |
| 42L6-Hz | Frequency meter | 45-55HZ 100V, 45-55HZ 220V, 45-55HZ 380V | |
| 42L6-W | Power meter | 600KW 380V 1000/5A | |
| 42L6-MW | Power meter | 25MW 63kV/110VAC 200/1A | US $12.22/ pieceOrder (1) |
| 42L6-COS | Power factor meter | 100V/5A, 380V/5A | |
▇ 42L6-A pointer ammeter model number legend
▇ General
| Model number |
42L6 |
| Accuracy level |
1.5 level and 2.5 level |
| External dimensions |
120x120 mm |
| Perforation dimensions |
112 10x112 10 mm |
| Matched current transformer |
BH-0.66-30 |
| Resistance to mechanical forces |
Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength |
2KV 50Hz for 1min |
| Voltage affection |
The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position |
Vertical |
| Operating temperature |
-20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity |
80% RH max, non-condensing |
▇ 42L6-A pointer ammeter child models
| No |
Model Number |
Measured Range |
MOQ |
Unit Price |
Related Product |
| 1 |
42L6-A30/5 |
30/5A |
1 |
US $3.68 |
Order |
| 2 |
42L6-A50/5 |
50/5A |
1 |
US $3.68 |
Order |
| 3 |
42L6-A75/5 |
75/5A |
1 |
US $3.68 |
Order |
| 4 |
42L6-A100/5 |
100/5A |
1 |
US $3.68 |
Order |
| 5 |
42L6-A150/5 |
150/5A |
1 |
US $3.68 |
Order Unfold |
| 6 |
42L6-A200/5 |
200/5A |
1 |
US $3.68 |
Order |
| 7 |
42L6-A250/5 |
250/5A |
1 |
US $3.68 |
Visiting... |
| 8 |
42L6-A300/5 |
300/5A |
1 |
US $3.68 |
Order |
| 9 |
42L6-A400/5 |
400/5A |
1 |
US $3.68 |
Order |
| 10 |
42L6-A500/5 |
500/5A |
1 |
US $3.68 |
Order |
| 11 |
42L6-A600/5 |
600/5A |
1 |
US $3.68 |
Order |
| 12 |
42L6-A800/5 |
800/5A |
1 |
US $3.68 |
Order |
| 13 |
42L6-A1K/5 |
1K/5A |
1 |
US $3.68 |
Order |
| 14 |
42L6-A1.5K/5 |
1.5K/5A |
1 |
US $3.68 |
Order |
| 15 |
42L6-A2K/5 |
2K/5A |
1 |
US $3.68 |
Order |
| 16 |
42L6-A3K/5 |
3K/5A |
1 |
US $3.68 |
Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.6kg
Package size: 21 x 11 x 14 cm
