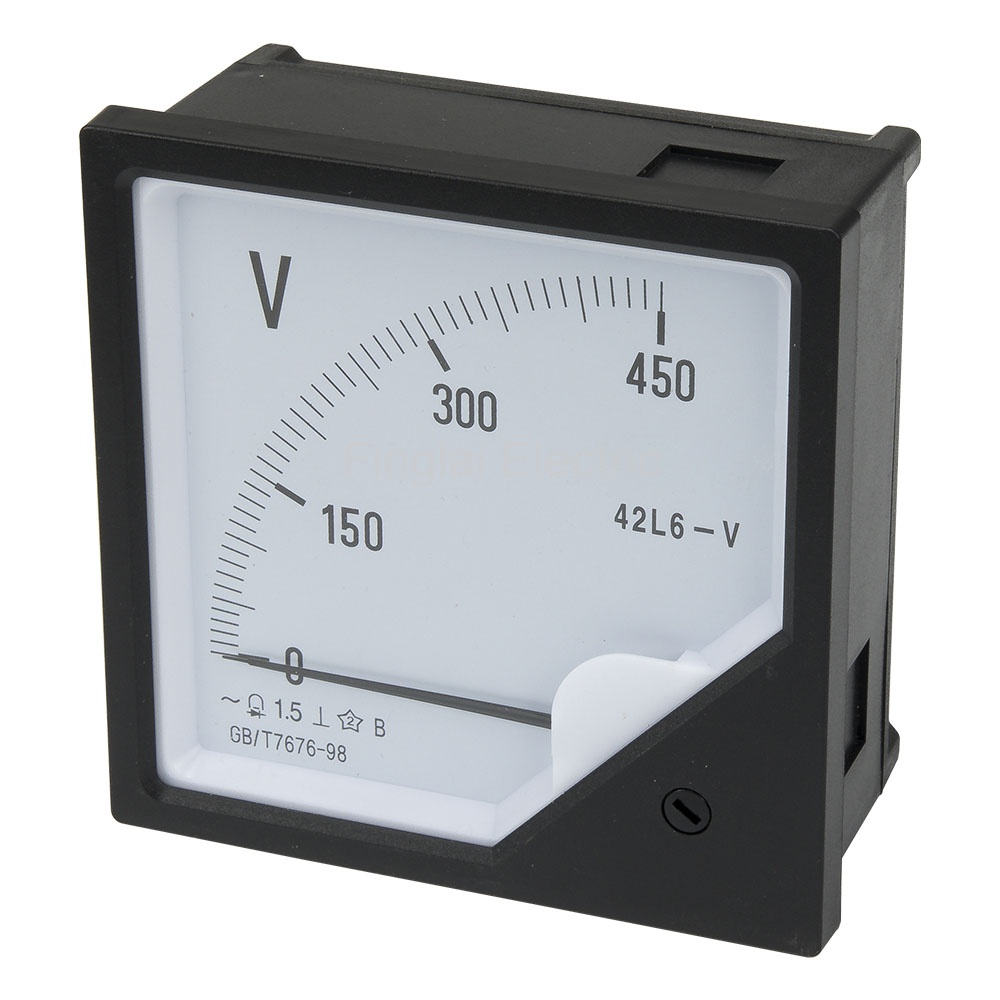

42L6-V450 120*120mm 450V pointer AC voltmeter 42L6 series analog volt meter 120x120 mm size
Product features
Mouse over to zoom in
42L6-V450 120*120mm 450V pointer AC voltmeter 42L6 series analog volt meter 120x120 mm size
Price: US $3.68 / piece
Model number: 42L6-V450
Product name: Pointer voltmeter
Deliver to:
Shipping:
US $21.75via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $25.43
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ External dimensions and parameters
| Model number | Type | Range | Online store: |
| 42L6-A | AC Ammeter | 30/5A, 50/5A, 75/5A, 100/5A, 150/5A, 200/5A, 250/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1K/5A, 1.5K/5A, 2K/5A, 3K/5A | US $3.68/ pieceOrder (16) |
| 42L6-V | AC Voltmeter | 250V, 450V, 500V, 7.2K/100V, 6K/100V, 10K/100V, 12K/100V | Visiting... |
| 42L6-Hz | Frequency meter | 45-55HZ 100V, 45-55HZ 220V, 45-55HZ 380V | |
| 42L6-W | Power meter | 600KW 380V 1000/5A | |
| 42L6-MW | Power meter | 25MW 63kV/110VAC 200/1A | US $12.22/ pieceOrder (1) |
| 42L6-COS | Power factor meter | 100V/5A, 380V/5A |
▇ 42L6-V pointer voltmeter model number legend
42L6-V
Parent Model Number
▇ General
| Model number | 42L6 |
| Accuracy level | 1.5 level and 2.5 level |
| External dimensions | 120x120 mm |
| Perforation dimensions | 112 10x112 10 mm |
| Matched current transformer | BH-0.66-30 |
| Resistance to mechanical forces | Can withstand 30m/s2 wind; Impact frequency 80-120 times/min, 2h transport bumping |
| Dielectric strength | 2KV 50Hz for 1min |
| Voltage affection | The measured tolerance don't exceed base tolerance when the measured value changed 15% |
| Work position | Vertical |
| Operating temperature | -20 to 40 ℃ (-4 to 104 ℉) |
| Operating humidity | 80% RH max, non-condensing |
▇ 42L6-V pointer voltmeter submodels
| No | Model Number | Measured Range | MOQ | Unit Price | Related Product |
| 1 | 42L6-V450 | 450V | 1 | US $3.68 | Visiting... |
Packaging Details
Product quantity: 1pc
Package weight: 0.6kg
Package size: 19 x 10 x 13 cm
