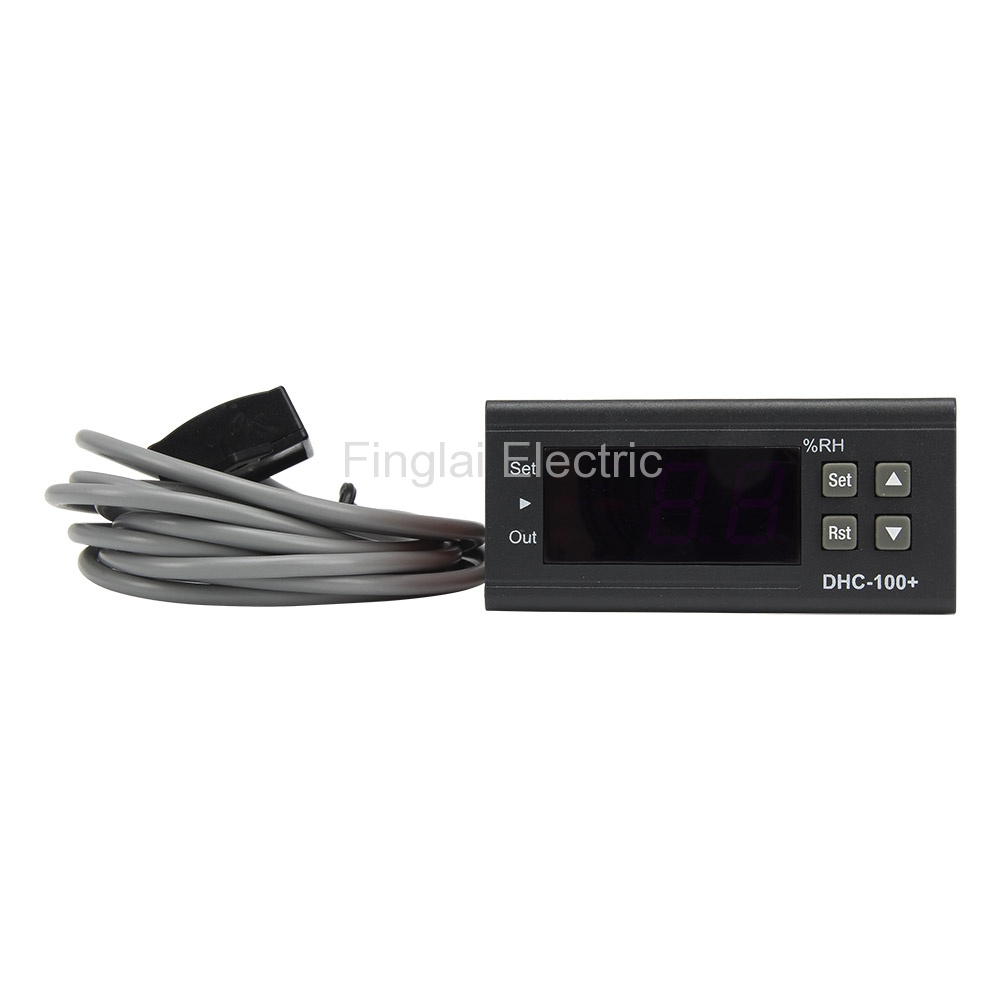

DHC-100+ AC/DC 12V 2m cable sensor digital humidity controller
Product features
Mouse over to zoom in
DHC-100+ AC/DC 12V 2m cable sensor digital humidity controller
Price: US $33.69 / piece
Model number: DHC-100-12V
Product name: Humidity controller
Deliver to:
Shipping:
US $14.12via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $47.81
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ External dimensions and Perforation dimensions
| Model number | External dimensions | Perforation dimensions | Online store: |
| DHC-100 | 75x34.5x85 mm | 71 10x29 10 mm | Visiting... |
▇ DHC-100 humidity controller model number legend
DHC-100
Parent Model Number
▇ General
| Model number | DHC-100+ series |
| Supply voltage | 220Vac, 110Vac, 50/60Hz; 12Vac/dc, 24Vac/dc |
| Humidity measuring range | 0%-99%RH |
| Humidity control range | 10%-99%RH |
| Resolution | 1%RH |
| Humidity accuracy | 25℃: ±(5%RH+0.5digit) 10-40℃ 0%-59%RH: ±(6%RH+0.5digit) 10-40℃ 59%-99%RH: ±(8%RH+0.5digit) |
| Input types | HTG3515CH temperature humidity sensor, length is 2m (include the probe) |
| Sensor Stability | ±0.5%RH/year |
| Output types | One SPDT electromagnetic relay |
| Relay contact rating | 10A at 250VAC, Max.single phase load is 0.5HP/220VAC |
| Power consumption | Less than 3W |
| Front panel IP rating | IP54 |
| Insulation resistance | 500M ohm min |
| Withstand voltage | 2KV 50Hz for 1min, no breakdown and flashover phenomenon |
| Vibration resistance | (10-5-10) Hz, 2G, 3min vibration, work normal |
| Operating temperature | 0 to 60 ℃ |
| Operating humidity | 20-85% RH max, non-condensing |
| Storage temperature | -30 to 75 ℃ |
| Product features | 1. Humidification, dehumidification mode optional. 2. Adopt integrated circuit humidity sensor, with high sensitivity, fast response, good consistency and so on. 3. Keypad lock function. 4. After the humidity sensor fails, the controller can periodically turn on or off the control output according to the set time. |
| Alias name | DHC-100+ hygrostat |
▇ DHC-100 humidity controller submodels
| No | Model Number | Output Type | Supply Voltage | MOQ | Unit Price | Related Product |
| 1 | DHC-100-220VAC | One relay | 220VAC | 1 | US $33.69 | Order |
| 2 | DHC-100-110VAC | One relay | 110VAC | 1 | US $33.69 | Order |
| 3 | DHC-100-24V | One relay | 24VAC/DC | 1 | US $33.69 | Order |
| 4 | DHC-100-12V | One relay | 12VAC/DC | 1 | US $33.69 | Visiting... |
| 5 | DHC-100-B220VAC | Two relays | 220VAC | 1 | US $38.19 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.35kg
Package size: 14.5 x 8.5 x 10.5 cm
