◄ E5EM-R general temperature controller

E5EM 48*96mm AC 220V SSR main output K input pointer temperature controller

Product features
Mouse over to zoom in

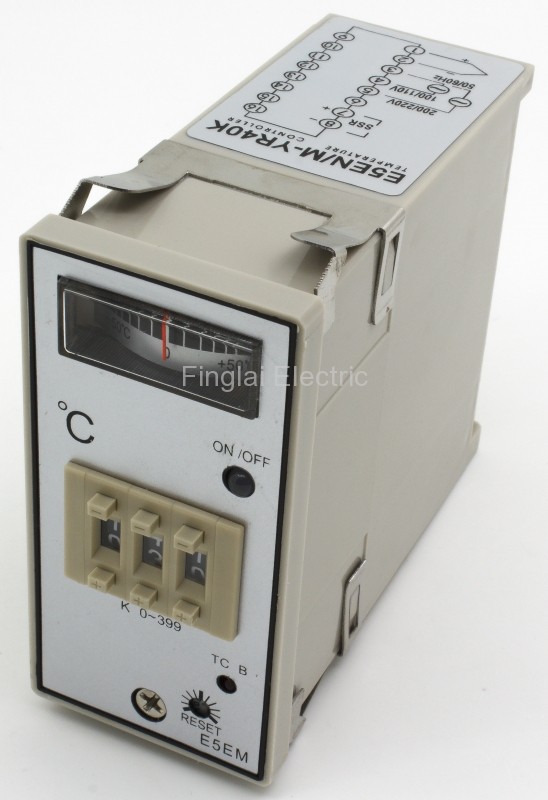

E5EM 48*96mm AC 220V SSR main output K input pointer temperature controller
Price: US $8.4 / piece
Model number: E5EM-SR
Product name: General temperature controller
Output type:
Electromagnetic relay
US $6.96SSR
US $8.4
Deliver to:
Shipping:
US $15.95via
Estimated Delivery Time: 9-17 days
Quantity:
Total price:US $24.35
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ External dimensions and Perforation dimensions
Model numberExternal dimensionsPerforation dimensionsOnline store:
E5EM48x96x110 mm44 10x92 10 mmVisiting...
▇ E5EM general temperature controller model number legend
E5EM
Parent Model Number
-SR
Output type
-R: Electromagnetic relay
-SR: SSR
▇ General
Model number E5EM series
Accuracy ±1.5% of full scale
Supply voltage 220/110VAC 220/380VAC 50HZ
Input type Thermocouple: K
Output type Electromagnetic relay, SSR
Current: SSR
Power consumption Less than 5VA
Control method ON/OFF Control
Setting method Dial switch
Indication method LED indication
Alarms No alarm
Operating temperature 0 to 50 ℃ (32 to 122 ℉)
Operating humidity 85% RH max, non-condensing
▇ Output type and description
Electromagnetic relay Contact rating: 3A at 250Vac
Solid state relay Contact rating can be selected, order separately (Single phase 40A, Three phase 40A)
▇ Input type and measuring range
K 0-399 ℃ (Bolt, Press spring, Ring, Probe, Armor high temperature resistant, Special thread waterproof probe)
▇ E5EM general temperature controller child models
No Model Number Output Type MOQ Unit Price Related Product
1 E5EM-R Electromagnetic relay 1 US $6.96 Order
2 E5EM-SR SSR 1 US $8.4 Visiting...
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 14.5 x 8.5 x 10.5 cm
