E5EM 48*96mm AC 220V relay main output K input pointer temperature controller
Product features
Mouse over to zoom in

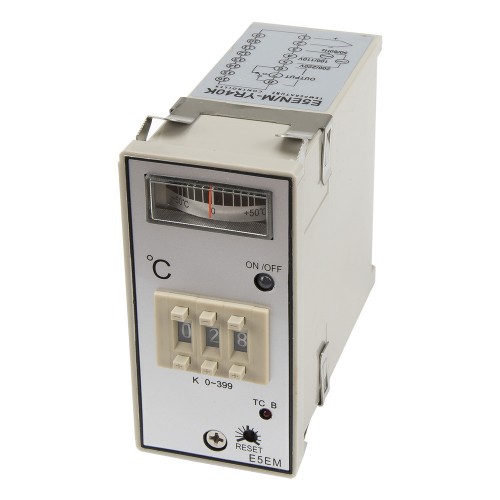

E5EM 48*96mm AC 220V relay main output K input pointer temperature controller
Price: US $6.96 / piece
Model number: E5EM-R
Product name: General temperature controller
Deliver to:
Shipping:
US $14.06via
Estimated Delivery Time: 9-17 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $21.02
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ External dimensions and Perforation dimensions
| Model number | External dimensions | Perforation dimensions | Online store: |
| E5EM | 48x96x110 mm | 44 10x92 10 mm | Visiting... |
▇ E5EM general temperature controller model number legend
E5EM
Parent Model Number
▇ General
| Model number | E5EM series |
| Accuracy | ±1.5% of full scale |
| Supply voltage | 220/110VAC 220/380VAC 50HZ |
| Input type | Thermocouple: K |
| Output type | Electromagnetic relay, SSR Current: Electromagnetic relay |
| Power consumption | Less than 5VA |
| Control method | ON/OFF Control |
| Setting method | Dial switch |
| Indication method | LED indication |
| Alarms | No alarm |
| Operating temperature | 0 to 50 ℃ (32 to 122 ℉) |
| Operating humidity | 85% RH max, non-condensing |
▇ Output type and description
| Electromagnetic relay | Contact rating: 3A at 250Vac |
| Solid state relay | Contact rating can be selected, order separately (Single phase 40A, Three phase 40A) |
▇ Input type and measuring range
| K | 0-399 ℃ (Bolt, Press spring, Ring, Probe, Armor high temperature resistant, Special thread waterproof probe) |
▇ E5EM general temperature controller submodels
| No | Model Number | Output Type | MOQ | Unit Price | Related Product |
| 1 | E5EM-R | Electromagnetic relay | 1 | US $6.96 | Visiting... |
| 2 | E5EM-SR | SSR | 1 | US $8.40 | Order |
Packaging Details
Product quantity: 1pc
Package weight: 0.4kg
Package size: 14.5 x 8.5 x 10.5 cm
