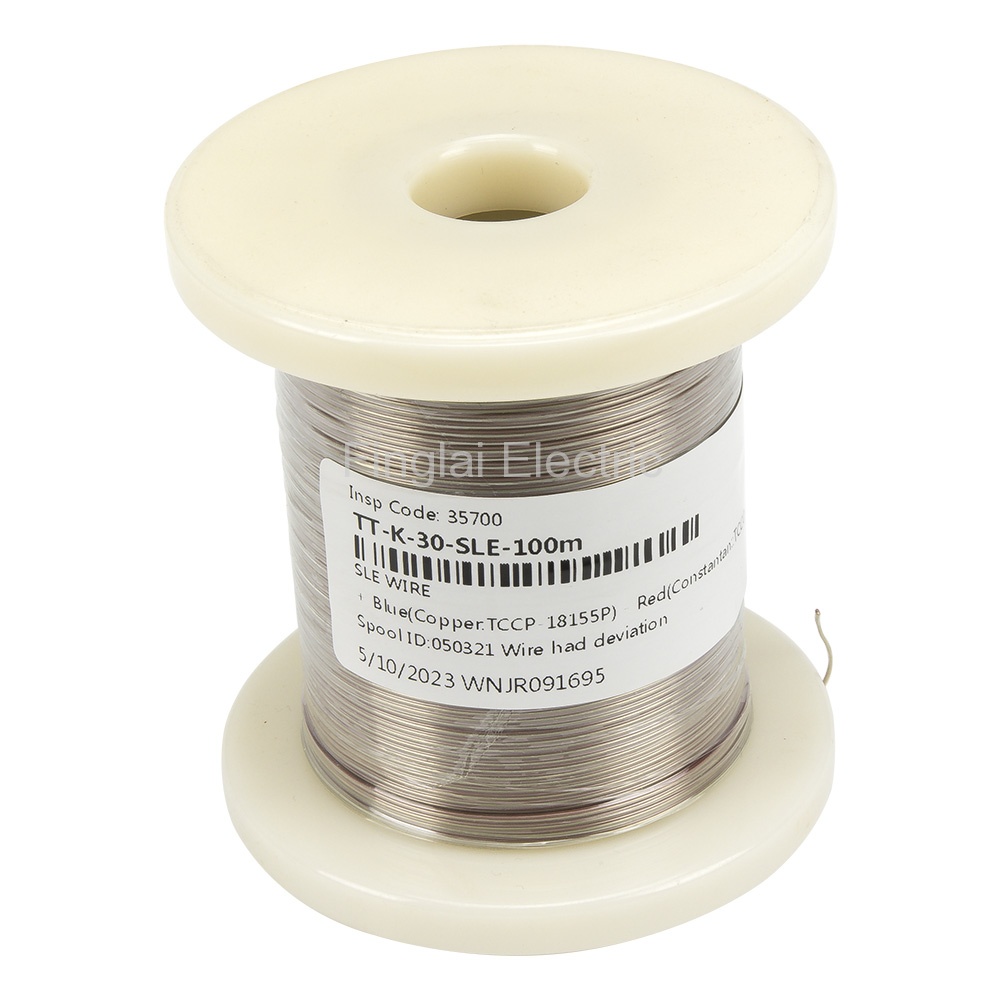

TT-K 30AWG 100m/1 roll K thermocouple solid wire PFA extension wire compensation wire cable for temperature sensor
Product features
Mouse over to zoom in
TT-K 30AWG 100m/1 roll K thermocouple solid wire PFA extension wire compensation wire cable for temperature sensor
Price: US $48.69 / piece
Model number: TT-K-30-SLE-100M
Product name: Compensation wires
Wire Gauge (Solid default):
20AWGUS $103.2824AWG
US $86.0724AWG Stranded
US $103.2830AWG
US $48.6936AWG
US $48.6940AWG
US $103.28
Special Limit of error:
YesCable Length:
100mDeliver to:
Shipping:
US $13.17via
Estimated Delivery Time: 9-15 days
Total price:US $61.86
Buy Now
Add to Cart
Inquire
Payment:
PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Core material | Online store: |
| TT-K | K | -200-260℃ | Nickel chromium alloy / nickel silicon alloy | Visiting... |
| TT-J | J | -200-260℃ | Iron / copper nickel alloy | US $48.69 - 103.28/ pieceOrder (6) |
| TT-T | T | -200-260℃ | Copper / copper-nickel alloy | US $48.69 - 103.28/ pieceOrder (6) |
| TT-E | E | -200-260℃ | Nickel chromium alloy / copper nickel alloy | US $48.69 - 103.28/ pieceOrder (6) |
| GG-K | K | -200-482℃ | Nickel chromium alloy / nickel silicon alloy | US $88.53 - 118.04/ pieceOrder (5) |
| GG-J | J | -200-482℃ | Iron / copper nickel alloy | US $88.53 - 118.04/ pieceOrder (5) |
| GG-T | T | -200-482℃ | Copper / copper-nickel alloy | US $88.53 - 118.04/ pieceOrder (5) |
| GG-E | E | -200-482℃ | Nickel chromium alloy / copper nickel alloy | US $88.53 - 118.04/ pieceOrder (5) |
| HH-K | K | -200-704℃ | Nickel chromium alloy / nickel silicon alloy | US $103.28 - 132.79/ pieceOrder (3) |
| HH-J | J | -200-704℃ | Iron / copper nickel alloy | US $103.28 - 132.79/ pieceOrder (3) |
| HH-T | T | -200-704℃ | Copper / copper-nickel alloy | US $103.28 - 132.79/ pieceOrder (3) |
| HH-E | E | -200-704℃ | Nickel chromium alloy / copper nickel alloy | US $103.28 - 132.79/ pieceOrder (3) |
▇ TT-K compensation wires model number legend
TT-K
Parent Model Number
▇ General
| Model number | TT-GG-HH series |
| Cable material | TT: PFA; GG: Glass braid; KK: High temp glassbraid; |
| Cable length | 100m; 305m |
| Conductors quantity | 2 |
| Conductor insulating material | TT: PFA; GG: Glass braid; KK: High temp glassbraid; |
| Single conductor cores quantity | Solid; Stranded |
| Wire Gauge | 20AWG 24AWG 30AWG 36AWG 40AWG |
| Purpose | Thermocouple temperature sensor extension wire or compensation wire cable for K J T type thermocouple |
▇ TT-K compensation wires child models
| No | Model Number | Wire Gauge (Solid Default) | Special Limit Of Error | Cable Length | MOQ | Unit Price | Related Product |
| 1 | TT-K-20-SLE-100M | 20AWG | Yes | 100m | 1 | US $103.28 | Order |
| 2 | TT-K-24-SLE-100M | 24AWG | Yes | 100m | 1 | US $86.07 | Order |
| 3 | TT-K-24S-SLE-100M | 24AWG Stranded | Yes | 100m | 1 | US $103.28 | Order |
| 4 | TT-K-30-SLE-100M | 30AWG | Yes | 100m | 1 | US $48.69 | Visiting... |
| 5 | TT-K-36-SLE-100M | 36AWG | Yes | 100m | 1 | US $48.69 | Order Unfold |
Packaging Details
Product quantity: 1pc
Package weight: 0.5kg
Package size: 14.5 x 8.5 x 10.5 cm
