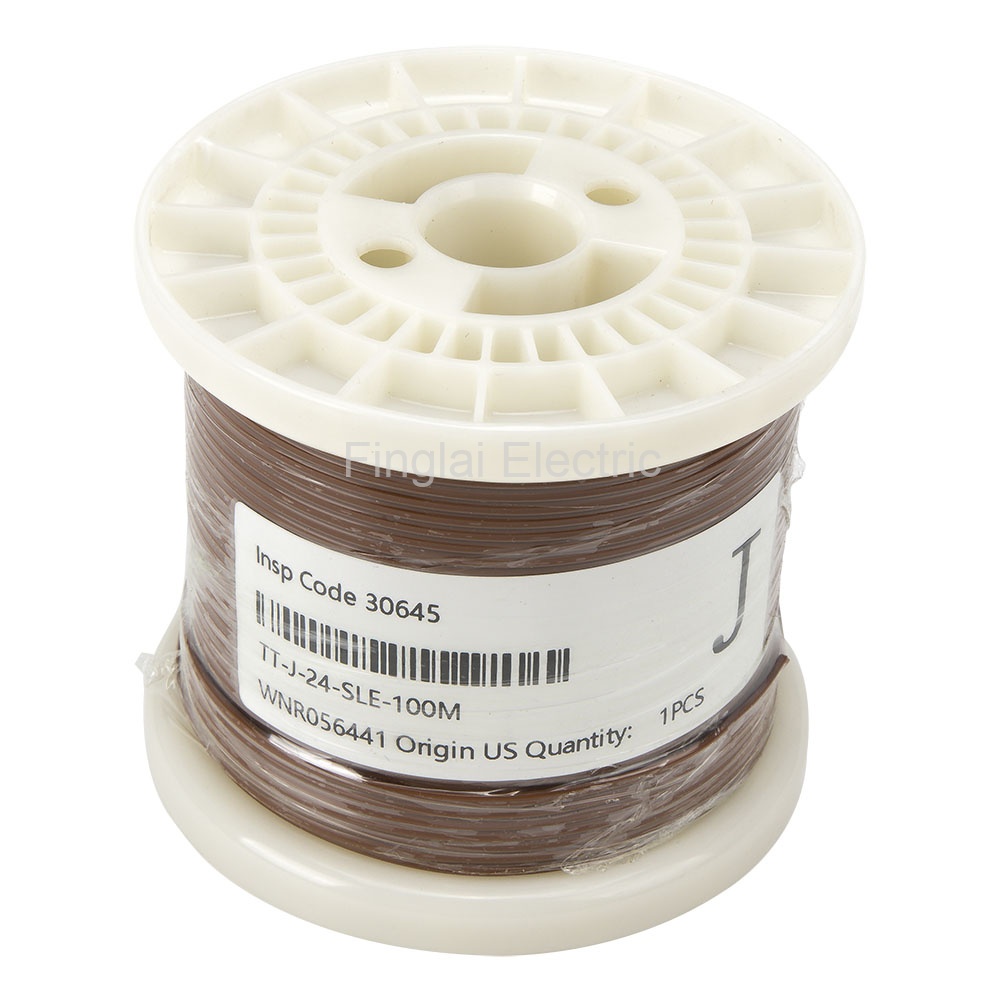

TT-J series 100m/1 roll J thermocouple PFA extension wire compensation wire cable for temperature sensor
Main child models
Product description
▇ Model number and parameters
| Model number | Type | Measuring range | Core material | Online store: |
| TT-K | K | -200-260℃ | Nickel chromium alloy / nickel silicon alloy | US $48.69 - 103.28/ pieceOrder (6) |
| TT-J | J | -200-260℃ | Iron / copper nickel alloy | Visiting... |
| TT-T | T | -200-260℃ | Copper / copper-nickel alloy | US $48.69 - 103.28/ pieceOrder (6) |
| TT-E | E | -200-260℃ | Nickel chromium alloy / copper nickel alloy | US $48.69 - 103.28/ pieceOrder (6) |
| GG-K | K | -200-482℃ | Nickel chromium alloy / nickel silicon alloy | US $88.53 - 118.04/ pieceOrder (5) |
| GG-J | J | -200-482℃ | Iron / copper nickel alloy | US $88.53 - 118.04/ pieceOrder (5) |
| GG-T | T | -200-482℃ | Copper / copper-nickel alloy | US $88.53 - 118.04/ pieceOrder (5) |
| GG-E | E | -200-482℃ | Nickel chromium alloy / copper nickel alloy | US $88.53 - 118.04/ pieceOrder (5) |
| HH-K | K | -200-704℃ | Nickel chromium alloy / nickel silicon alloy | US $103.28 - 132.79/ pieceOrder (3) |
| HH-J | J | -200-704℃ | Iron / copper nickel alloy | US $103.28 - 132.79/ pieceOrder (3) |
| HH-T | T | -200-704℃ | Copper / copper-nickel alloy | US $103.28 - 132.79/ pieceOrder (3) |
| HH-E | E | -200-704℃ | Nickel chromium alloy / copper nickel alloy | US $103.28 - 132.79/ pieceOrder (3) |
▇ TT-J compensation wires model number legend
TT-J
Parent Model Number
▇ General
| Model number | TT-GG-HH series |
| Cable material | TT: PFA; GG: Glass braid; KK: High temp glassbraid; |
| Cable length | 100m; 305m |
| Conductors quantity | 2 |
| Conductor insulating material | TT: PFA; GG: Glass braid; KK: High temp glassbraid; |
| Single conductor cores quantity | Solid; Stranded |
| Wire Gauge | 20AWG 24AWG 30AWG 36AWG 40AWG |
| Purpose | Thermocouple temperature sensor extension wire or compensation wire cable for K J T type thermocouple |
▇ TT-J compensation wires child models
| No | Model Number | Wire Gauge (Solid Default) | Special Limit Of Error | Cable Length | MOQ | Unit Price |
| 1 | TT-J-20-SLE-100M | 20AWG | Yes | 100m | 1 | US $103.28 |
| 2 | TT-J-24-SLE-100M | 24AWG | Yes | 100m | 1 | US $86.07 |
| 3 | TT-J-24S-SLE-100M | 24AWG stranded | Yes | 100m | 1 | US $103.28 |
| 4 | TT-J-30-SLE-100M | 30AWG | Yes | 100m | 1 | US $48.69 |
| 5 | TT-J-36-SLE-100M | 36AWG | Yes | 100m | 1 | US $48.69 |
| 6 | TT-J-40-SLE-100M | 40AWG | Yes | 100m | 1 | US $103.28 |
