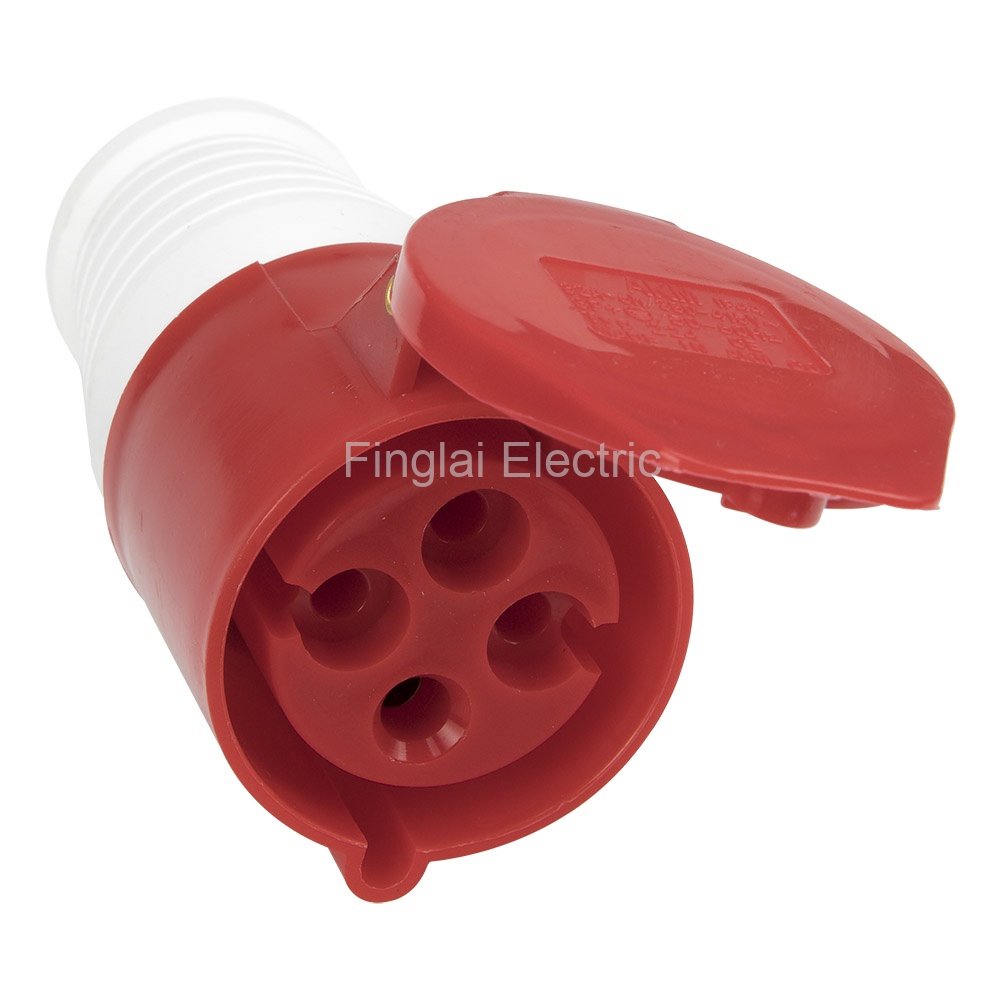

224 32A 3P E 4 pin 380-415V IP44 three phase splashproof industrial connector coupler
Product features
Mouse over to zoom in
224 32A 3P E 4 pin 380-415V IP44 three phase splashproof industrial connector coupler
Price: US $1.67 / piece
Model number: CM1-224
Product name: Industrial connector
Deliver to:
Shipping:
US $12.23via
Estimated Delivery Time: 9-15 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $13.9
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number and current and matched products
| Model number | Rated current | Cable cross-section | Plug | Appliance inlet | Online store: |
| CM1-214 | 16A | 1-2.5 mm2 | CM1-014 plug CM1-014L cable sleeve plug | CM1-514 surface mounting appliance inlet CM1-614 flush mounting appliance inlet | US $1.35/ pieceOrder |
| CM1-224 | 32A | 2.5-6 mm2 | CM1-024 plug CM1-024L cable sleeve plug | CM1-524 surface mounting appliance inlet CM1-624 flush mounting appliance inlet | Visiting... |
▇ General
| Earth contact position | 6h |
| Pole | 4 |
| Voltage | 380-415V~3P+E |
| Protection degree | IP44 |
| Enclosure material | PA66 |
▇ Model number and dimensions
| Model number | a | b | c | Φ |
| CM1-214 | 131 mm | 79 mm | 56 mm | 6 mm |
| CM1-224 | 150 mm | 92 mm | 65 mm | 8 mm |
▇ Model number and packing
| Model number | PCS/Carton |
| CM1-214 | 120 |
| CM1-224 | 60 |
Packaging Details
Product quantity: 1pc
Package weight: 0.31kg
Package size: 14.5 x 8.5 x 10.5 cm
