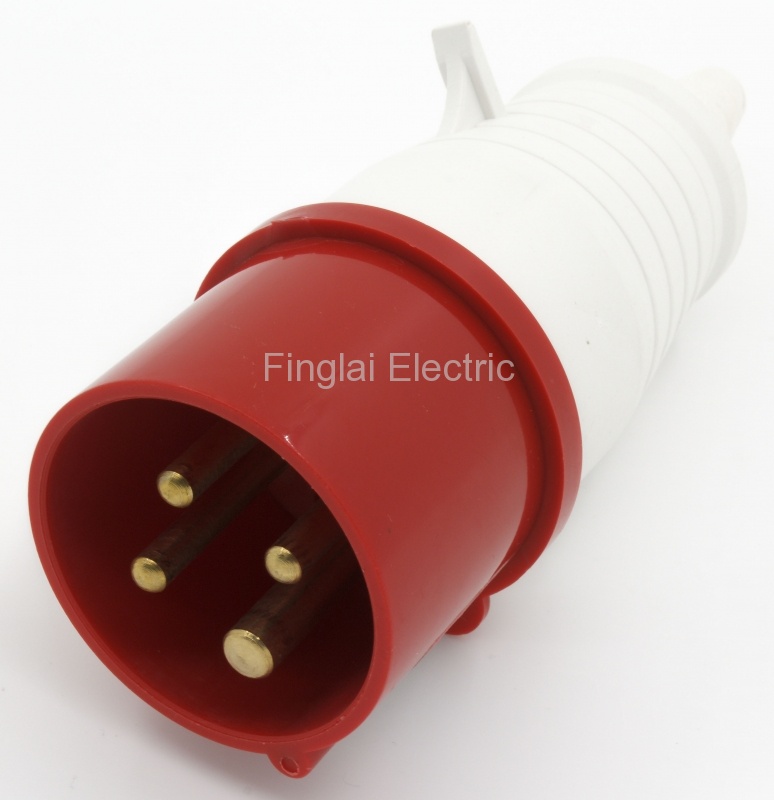

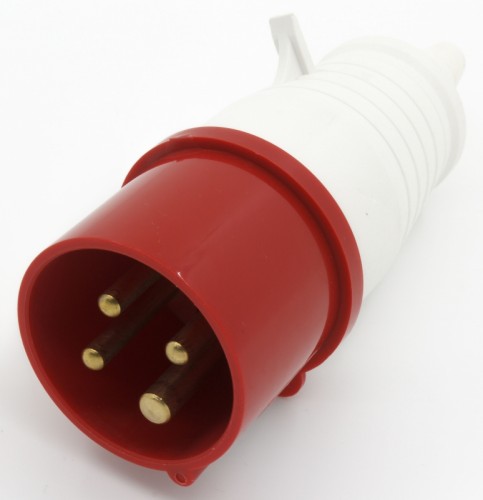

014L 16A 3P E 4 pin 380-415V IP44 three phase splashproof industrial plug with cable sleeve
Product features
Mouse over to zoom in
014L 16A 3P E 4 pin 380-415V IP44 three phase splashproof industrial plug with cable sleeve
Price: US $2.55 / piece
Model number: CM1-014L
Product name: Cable sleeve plug
Deliver to:
Shipping:
US $10.88via
Estimated Delivery Time: 9-15 days
DDP service: all applicable import duties and taxes are included in total order value.
Total price:US $13.43
Buy Now
Add to Cart
Inquire
Payment:
PayPalCredit CardWESTERN UNIONBANK TRANSFER
Need quotation for reference?Get quotation
Product description
▇ Model number, current and matched products
| Model number | Rated current | Cable cross-section | Socket | Connector | Online store: |
| CM1-014L | 16A | 1-2.5 mm2 | CM1-114 surface mounting socket CM1-314 flush mounting socket CM1-414 flush mounting angled socket CM1-114L cable sleeve socket | CM1-214 connector CM1-214L cable sleeve connector | Visiting... |
| CM1-024L | 32A | 2.5-6 mm2 | CM1-124 surface mounting socket CM1-324 flush mounting socket CM1-424 flush mounting angled socket CM1-124L cable sleeve socket | CM1-224 connector CM1-214L cable sleeve connector | US $3.34/ pieceOrder |
▇ General
| Earth contact position | 6h |
| Pole | 4 |
| Voltage | 380-415V~3P+E |
| Protection degree | IP44 |
| Enclosure material | PA66 |
▇ Model number and dimensions
| Model number | a | b | c | Φ |
| CM1-014L | 141 mm | 65 mm | 55 mm | 8 mm |
| CM1-024L | 178 mm | 75 mm | 64 mm | 10 mm |
▇ Model number and packing
| Model number | PCS/Carton |
| CM1-014L | 100 |
| CM1-024L | 60 |
Packaging Details
Product quantity: 1pc
Package weight: 0.26kg
Package size: 14.5 x 8.5 x 10.5 cm
