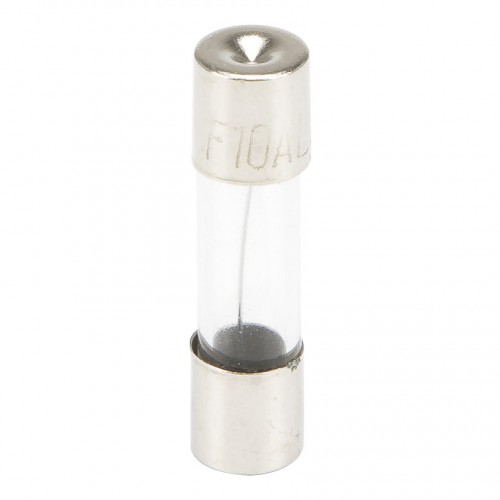

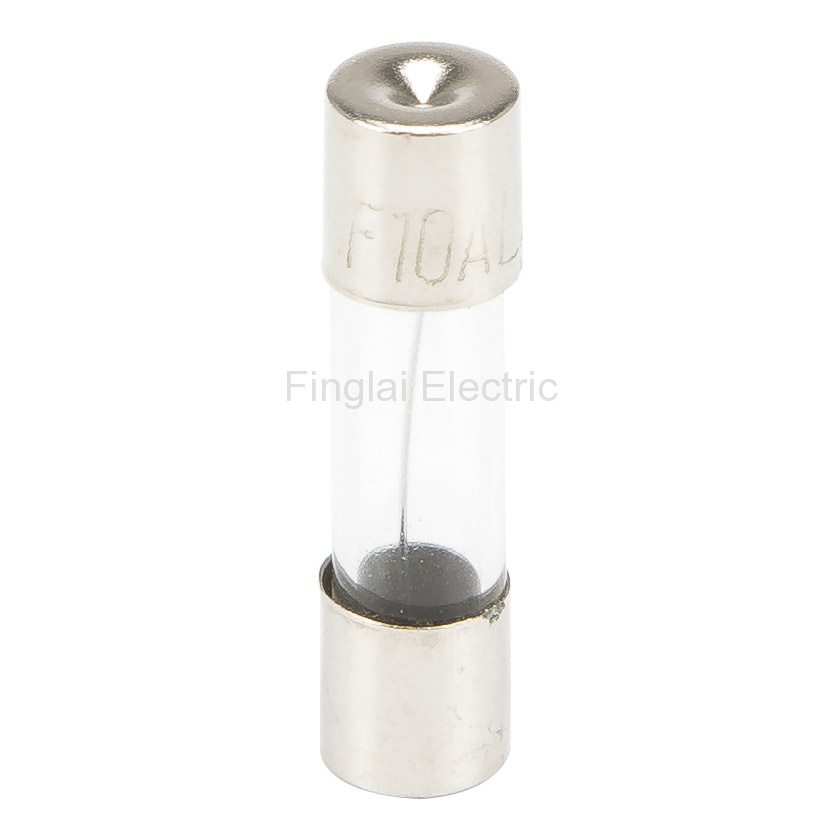

FTF01-520 10A 250V 5*20mm fast blow glass tube fuse
Product features
Mouse over to zoom in
FTF01-520 10A 250V 5*20mm fast blow glass tube fuse
Price: US $0.01 / piece
Model number: FTF01-520-10
Product name: Glass tube fuse
Deliver to:
Shipping:
US $7.82via
Estimated Delivery Time: 9-17 days
Total price:US $8.82
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters
▇ FTF01-520 glass tube fuse model number legend
▇ Blow time
| Rated current rate | Min | Max |
| 150% | 1hour | / |
| 210% | 1s | 120s |
| 275% | 600ms | 10s |
| 400% | 150ms | 3s |
| 1000% | 20ms | 300ms |
▇ General
| Model number |
FTF01 series |
| Rated current |
0.1, 0.125, 0.2, 0.25, 0.3, 0.315, 0.4, 0.5, 0.75, 0.8, 1, 1.5, 2, 3, 4, 5, 6, 7, 8, 10, 15, 20A
Current: 10A |
| Rated voltage |
250VAC |
| Fuse speed |
Fast blow |
| Body material |
Glass |
| Cap material |
Nickel plated brass |
| PCS/Box |
100 |
▇ FTF01-520 glass tube fuse child models
| No |
Model Number |
Rated Current |
MOQ |
Unit Price |
Related Product |
| 1 |
FTF01-520-0.1 |
0.1A |
100 |
US $0.01 |
Order |
| 2 |
FTF01-520-0.2 |
0.2A |
100 |
US $0.01 |
Order |
| 3 |
FTF01-520-0.25 |
0.25A |
100 |
US $0.03 |
Order |
| 4 |
FTF01-520-0.3 |
0.3A |
100 |
US $0.01 |
Order |
| 5 |
FTF01-520-0.4 |
0.4A |
100 |
US $0.01 |
Order Unfold |
| 6 |
FTF01-520-0.5 |
0.5A |
100 |
US $0.01 |
Order |
| 7 |
FTF01-520-0.75 |
0.75A |
100 |
US $0.01 |
Order |
| 8 |
FTF01-520-0.8 |
0.8A |
100 |
US $0.01 |
Order |
| 9 |
FTF01-520-1 |
1A |
100 |
US $0.01 |
Order |
| 10 |
FTF01-520-1.5 |
1.5A |
100 |
US $0.01 |
Order |
| 11 |
FTF01-520-2 |
2A |
100 |
US $0.01 |
Order |
| 12 |
FTF01-520-3 |
3A |
100 |
US $0.01 |
Order |
| 13 |
FTF01-520-4 |
4A |
100 |
US $0.01 |
Order |
| 14 |
FTF01-520-5 |
5A |
100 |
US $0.01 |
Order |
| 15 |
FTF01-520-6 |
6A |
100 |
US $0.01 |
Order |
| 16 |
FTF01-520-7 |
7A |
100 |
US $0.01 |
Order |
| 17 |
FTF01-520-8 |
8A |
100 |
US $0.01 |
Order |
| 18 |
FTF01-520-10 |
10A |
100 |
US $0.01 |
Visiting... |
| 19 |
FTF01-520-15 |
15A |
100 |
US $0.01 |
Order |
| 20 |
FTF01-520-20 |
20A |
100 |
US $0.01 |
Order |
Packaging Details
Product quantity: 100PCS
Package weight: 0.12kg
Package size: 10 x 10 x 7 cm
