Model number	FN01-2	FN01-2.5	FN01-3	FN01-4	FN01-5	FN01-6	FN01-8	FN01-10	FN01-12	FN01-14	FN01-16	FN01-18	FN01-20	FN01-22	FN01-24
Online store: This siteAliexpressEbayAmazon	US $0.02/ pieceOrder	US $0.02/ pieceOrder	US $0.02/ pieceOrder	US $0.02/ pieceOrder	US $0.02/ pieceOrder	US $0.03/ pieceOrder	US $0.04/ pieceOrder	US $0.11/ pieceOrder	Visiting...	US $0.10/ pieceOrder	US $0.15/ pieceOrder	US $0.19/ pieceOrder	US $0.31/ pieceOrder	US $0.44/ pieceOrder	US $1.15/ pieceOrder
Thread size	M2	M2.5	M3	M4	M5	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24
Thread nominal diameter (D)	2	2.5	3	4	5	6	8	10	12	14	16	18	20	22	24
Pitch (P)	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	1.5/2	2	2.5	2.5
Thickness (M)	0.95-1.2	1.35-1.6	1.55-1.8	1.95-2.2	2.45-2.7	2.9-3.2	3.7-4	4.7-5	5.7-6	6.42-7	7.52-8	8.42-9	9.1-10	11	12
Hexagon opposite sides (S)	3.82-4	4.82-5	5.32-5.5	6.78-7	7.78-8	9.78-10	12.73-13	16.73-17	18.67-19	21.67-22	23.67-24	26.16-27	29.16-30

Model number	FN01 series

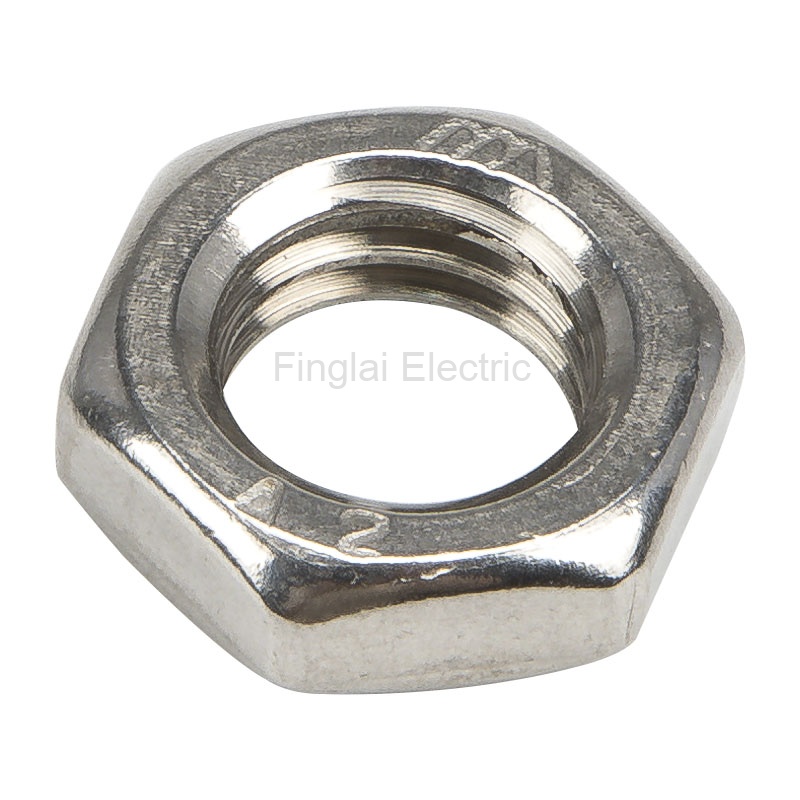

Name	Hexagon thin nut
Material	304 stainless steel
Superficial treatment	True color
Standard	DIN439
Dimension	Eg: M3 (inner diameter is 3mm), fit to M3 screw to use
Alias name	FN01 series 304 stainless steel hexagon thin screw nuts
