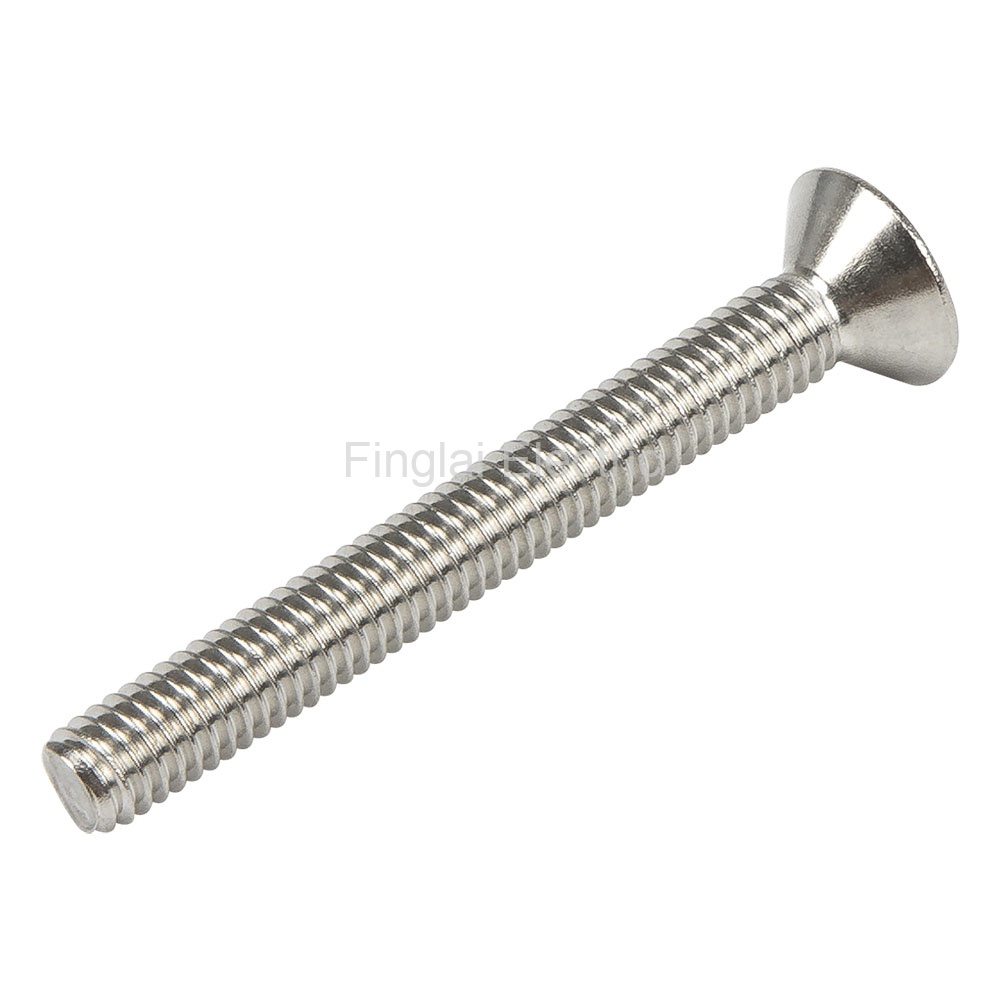

M4*35 304 stainless steel cross recessed countersunk head screw
Product features
Mouse over to zoom in

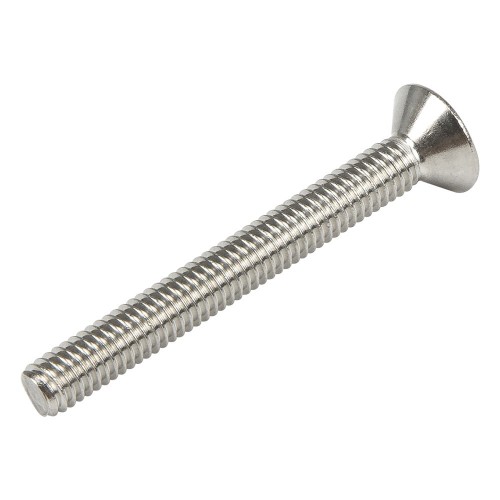

M4*35 304 stainless steel cross recessed countersunk head screw
Price: US $0.07 / piece
Model number: FS02-4-35
Product name: Machine screw
Deliver to:
Shipping:
US $6.07via
Estimated Delivery Time: 9-17 days
Total price:US $6.77
Buy Now
Add to Cart
Inquire
Payment:PayPal/Credit CardWESTERN UNIONBANK TRANSFER
Product description
▇ Model number and parameters (Unit: mm)
| Model number |
FS02-1.6 |
FS02-2 |
FS02-2.5 |
FS02-3 |
FS02-3.5 |
FS02-4 |
FS02-5 |
FS02-6 |
FS02-8 |
FS02-10 |
| Online store:
|
|
|
|
|
|
Visiting... |
|
|
|
|
| Thread size |
M1.6 |
M2 |
M2.5 |
M3 |
M3.5 |
M4 |
M5 |
M6 |
M8 |
M10 |
| Thread nominal diameter (d) |
1.6 |
2 |
2.5 |
3 |
3.5 |
4 |
5 |
6 |
8 |
10 |
| Pitch (P) |
0.35 |
0.4 |
0.45 |
0.5 |
0.6 |
0.7 |
0.8 |
1 |
1.25 |
1.5 |
| Head diameter (dk) |
2.7-3 |
3.5-3.8 |
4.4-4.7 |
5.2-5.5 |
6.94-7.3 |
8.04-8.4 |
8.94-9.3 |
10.87-11.3 |
15.37-15.8 |
17.78-18.3 |
| Head thickness (k) |
1 |
1.2 |
1.5 |
1.65 |
2.35 |
2.7 |
2.7 |
3.3 |
4.65 |
5 |
▇ FS02-4 machine screw model number legend
▇ General
| Model number |
FS02 series |
| Name |
Cross recessed countersunk head screw |
| Material |
304 stainless steel |
| Superficial treatment |
True color |
| Standard |
GB/T819 |
| Dimension |
e.g. M6*30: Thread nominal diameter is 6mm, length is 30mm (not include the head length) |
| Alias name |
FS02 series cross recessed flat head screw |
▇ FS02-4 machine screw child models
| No |
Model Number |
Thread Length |
MOQ |
Unit Price |
Related Product |
| 1 |
FS02-4-35 |
35mm |
10 |
US $0.07 |
Visiting... |
Packaging Details
Product quantity: 10pcs
Package weight: 0.06kg
Package size: 10 x 10 x 3 cm
